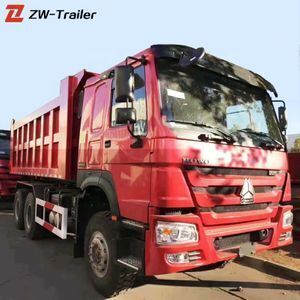

Discount Dumper Self Loading Star Product HOWO Mining 6X4 Dump Truck

Supplier: Shandong Zf Truck Trailer Manufacture Co., Ltd.
Region: Shandong, China
Contact: Mr ivan sun
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand:	SIONTRUK;	Color:	Optional;
Certification:	ISO;	Transmission Type:	Manual;
Horsepower:	351 - 450hp;	Condition:	New;
Fuel Type:	Diesel;	Packaging Detail:	Nude;
Tire:	12.00R20;	Capacity (Load):	11 - 20t;
Port:	Any Port In China for Discount Dumper Self Loading Star Product HOWO Mining 6X4 Dump Truck;	Transmission:	HW19710;
Payment Terms:	L/C,T/T;	Place of Origin:	Shandong China;
Gross Vehicle Weight:	12220;	Driving type:	Left Hand Drive;
Cab:	HW76;	Drive Wheel:	6x4;
Type:	Rear Dump;	Supply Ability:	100 Set/Sets per Month 6X4 Dump Truck;
Dimensions (L x W x H) (mm):	821424963170;	Brand Name:	Sinotruck;
Emission Standard:	Euro 2;	Engine:	WD615.47;
Product name:	6X4 Dump Truck;	Engine Capacity:	4 - 6L;

Discount Dumper Self Loading Star Product HOWO Mining 6X4 Dump Truck

Product Description

6X4 dump truck is a type of truck that carries a dump truck with a dump truck. Also known as dump truck. By the car chassis, hydraulic lifting agencies, cargo and take-off devices and other components. Dump trucks in civil engineering, often with excavators, loaders, belt conveyors and other construction machinery joint operations, constitute loading, transportation and unloading production lines, earthwork, sand, bulk loading and unloading transport.

Used dump trucks :Sinotruk used dump trucks already had 40000Km to 80000Km,after maintenance,will still run over 500000Km.Exchange a new cab,and produce new load box that size is 5400x2500x1500mm. exchange a new engine and exchange new hydraulic lift cylinders. Made year 2014 to 2017 year.

We have factory to Refurbished truck, can follow many requirements from customers,Exchange a new cab,and produce new load box that size is 5400x2500x1500mm. exchange a new engine and exchange new hydraulic lift cylinders.

Trailer Parameters

Truck Model				ZZ3257S3647B
Driving Type				LHD
Truck Brand				SINOTRUK –HOWO
Dimension(Lx W xH)(unloaded)(mm)				821424963170
Cargo body size (LWH, mm) (mm)				5600x2300x1500=19.3 m3, bottom:8mm, side:6mm
Lift type of Carriage				Middle Lift
Approaching angle/Departure angle(°)				19/26
Overhang(front/rear) (mm)				1500/1670
Wheel base (mm)				3600+1350
Max speed(km/h)				75
Dead weight(kg)				12650
Gross Vechicle wegiht (kg)				12220
Fuel tanker capacity(L)				300
Fuel consumption(L/km)				20-40 L/100 km
Clutch				Single-plate dry clutch Φ430mm
Engine Model (Steyr technology, made in China)	Fuel type			Diesel
	Horse Power, max(kw/rpm)			371HP
	Emission			EURO 2
	Model			CNHTC Brand WD615.47
Transmission		Model		HW19710,10 forwards and 2 reverse
Brake system		Service brake		Dual circuit compressed air brake
		Auxiliary brake		Engine exhaust brake
Steering system		Model		8118
Front axle		HF9
Rear axle		HC16
Color		Optional
Tyre		12.00R20 Chinese Brand NO.10+1=11 tyres
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HW76 cab, one sleeper, with air-condition

Our Services

1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.

2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.

3: We are serious about after-sales service.

Our Service:

1.Reply your inquiry in 12 working hours;

2. Experienced staffs answer all your questions;

3.Customer’s design is available for certain products(OEM);

4.Spare parts for all types of engine machinery with reasonable price;

5.Different kinds of semi trailer can be provided with competitive price.

Company Information

Shandong ZF TruckTrailer Manufacture Co., Ltd is appointed Special Vehicle Manufacturer approved by NDRC (National Development and Reform Commission) whose products are into 'Announcement' management of national vehicles.The company is science, industry, and commerce integrated enterprise which combines products design, research development, production and marketing, owning Low bed semi trailer,Container semi trailer, Oil/fuel tank trailer,Side wall semi trailer, Cargo semi trailer, Box semi trailer,Dump truck trailer,Module trailer,LPG trailer and so on,more than 100 variety products,welcome to contact us.

Packaging & Shipping

Dump trucks are transported in roll-on, bulk, frame,We will help customers arrange the most cost-effective transportation methods.

Our Customer

Our factory hosted customers from all over the world. They visited our production workshop, painting workshop, and discussed professional problems with our engineers and technicians, and were well resolved.
