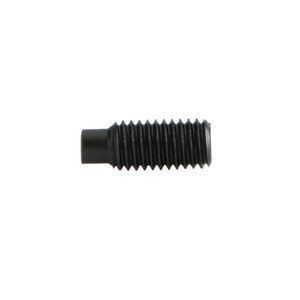

Class 12.9 Black Oxide Dog Point Set Screw
-
Supplier: Kunshan Zhonggu Precision Hardware Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Jack Liao -
Price: $0.20 / >=1000 pieces -
Min. Order: 1000 pieces
Product details
| Set screws type: | Hexagon socket set screws dog point; | Payment Terms: | L/C,T/T,Western Union; |
| Application: | Automotive Industry,General Industry,Heavy Industry,Oil & Gas; | Measurement system: | Metric; |
Class 12.9 Black Oxide Dog Point Set Screw

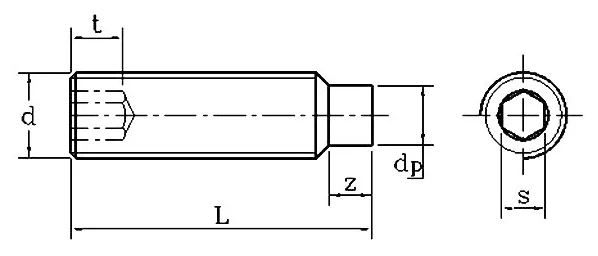

| d | P | dp | S | t | Z | ||||
| max | min | Nom | max | min | min | max | min | ||
| M3 | 0.5 | 2 | 1.75 | 1.5 | 1.545 | 1.52 | 1.2 | 1.75 | 1.5 |
| M4 | 0.7 | 2.5 | 2.25 | 2 | 2.045 | 2.02 | 1.5 | 2.25 | 2 |
| M5 | 0.8 | 3.5 | 3.2 | 2.5 | 2.56 | 2.52 | 2 | 2.75 | 2.5 |
| M6 | 1 | 4 | 3.7 | 3 | 3.06 | 3.02 | 2 | 3.25 | 3 |
| M8 | 1.25 | 5.5 | 5.2 | 4 | 4.095 | 4.02 | 3 | 4.3 | 4 |
| M10 | 1.5 | 7 | 6.64 | 5 | 5.095 | 5.02 | 4 | 5.3 | 5 |
| M12 | 1.75 | 8.5 | 8.14 | 6 | 6.095 | 6.02 | 4.8 | 6.3 | 6 |
| M16 | 2 | 12 | 11.57 | 8 | 8.115 | 8.025 | 6.4 | 8.36 | 8 |
| M20 | 2.5 | 15 | 14.57 | 10 | 10.115 | 10.025 | 8 | 10.36 | 10 |
| M24 | 3 | 18 | 17.57 | 12 | 12.142 | 12.032 | 10 | 12.43 | 12 |
