Stainless Steel Retaining Washers for Shafts, E Rings

Supplier: Kunshan Zhonggu Precision Hardware Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jack Liao
Price: $0.20 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Retaining rings type:	Retaining washers for shafts;	Application:	General Industry,Heavy Industry,Oil & Gas;
Port:	Shanghai or Ningbo;	Measurement system:	Metric;

Product Description

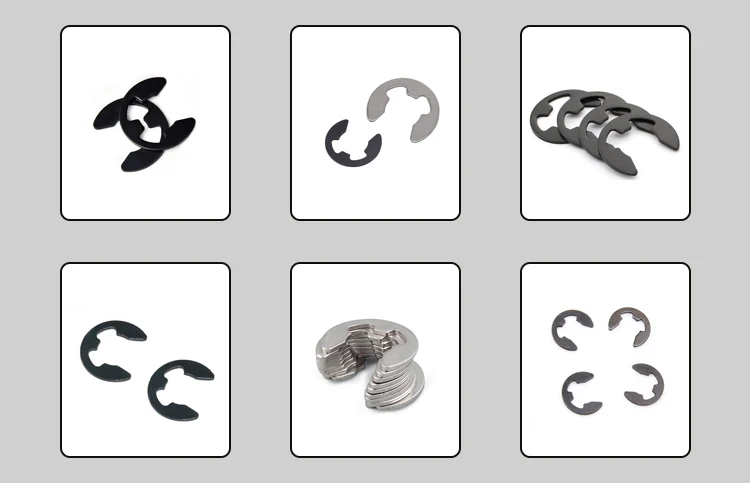

DIN6799 18-8 E Shape Lock Washer M5 m8 Stainless Steel A2 A4 Retaining Washers for Shafts

Thread specification d		0.8	1.2	1.5	1.9	2.3	3.2	4	5	6
h	Max	0.22	0.32	0.42	0.52	0.62	0.62	0.72	0.72	0.72
h	Min	0.18	0.28	0.38	0.48	0.58	0.58	0.68	0.68	0.68
n	Max	0.62	1.05	1.32	1.65	1.98	2.74	3.388	4.158	5.308
n	Min	0.54	0.97	1.24	1.57	1.9	2.66	3.292	4.062	5.212
dc	Max	2.25	3.25	4.25	4.8	6.3	7.3	9.3	11.3	12.3
Thousand pieces (steel) ≈ kg		0.003	0.009	0.021	0.04	0.069	0.088	0.158	0.236	0.255

Thread specification d		7	8	9	10	12	15	19	24	30
h	Max	0.92	1.03	1.13	1.23	1.33	1.53	1.78	2.03	2.53
h	Min	0.88	0.97	1.07	1.17	1.27	1.47	1.72	1.97	2.47
n	Max	5.888	6.578	7.688	8.378	10.52	12.68	15.99	21.964	25.884
n	Min	5.792	6.462	7.572	8.262	10.38	12.54	15.85	21.796	25.716
dc	Max	14.3	16.3	18.8	20.4	23.4	29.4	37.6	44.6	52.6
Thousand pieces (steel) ≈ kg		0.474	0.66	1.09	1.25	1.63	3.37	6.42	8.55	13.5

Main Products

Certifications

Testing Laboratory

We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.

Production Process

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
