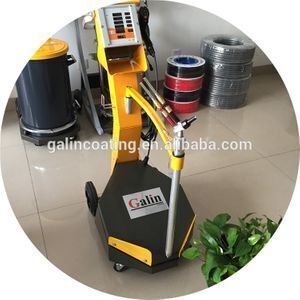

Vibrating powder coating equipment OptiFlex 2 B
-
Supplier: Weifang Galin Powder Coating Equipment Co., Ltd. -
Region: Shandong, China -
Contact: Ms Galin Wong -
Price: $10.00 /set -
Min. Order: 1 set
| Supply Ability: | 10 Set/Sets per Day; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,PAYPAL; |
| Model Number: | Manual coating equipment OptiFlex 2 B; | Type: | Coating Spray Gun; |
| Voltage: | 100-240 VAC; | Brand Name: | Gema; |
| After-sales Service Provided: | Overseas service center available; | Dimension(L*W*H): | 862*460*1105 mm; |
| Substrate: | Steel; | Delivery Detail: | Shipped in 10 days after payment; |
| Port: | SHANGHAI; | Power(W): | 50-60Hz; |
| Place of Origin: | Shandong China (Mainland); | Warranty: | 1 year; |
| Weight: | 42 kg; | Certification: | CE; |
| Coating: | Powder Coating; | Packaging Detail: | CARTON; |
| Condition: | New; |
OptiFlex 2B technical parameters
Electrical data
Nominal input voltage | 110V240VAC |
Frequency | 50-60Hz |
Connected load (without vibrator) | 140 VA |
Nominal output voltage (to the gun) | eff.10 V |
Nominal output current (to the gun) | max. 1.2 A |
Connection and output for vibrator (on Aux output) | 110/230 VAC max. 100 W |
Connection for rinsing function (valve) | 24 VDC max. 3 W |
Temperature range | 0°C - +40°(+32°F - +104°F) |
Max. surface temperature | 120 °C (+248 °F) Approvals II 3 D IP54 120 ° |
Protection type | IP54 |
Pneumatical data
MAX.input pressure | 10bar |
MIN.input pressure | 6bar |
Input pressure (Dynamic based on pressure regulator setting) | 5.5 bar / 80 psi |
Max.water vapor content of the compressed air | 1.3g/Nm³ |
Max.oil vapor content of the compressed air | 0.1mg/Nm³ |
Max.compressed air consumption | 8Nm³/h |
Dimensions
Width | 460mm |
Depth | 862mm |
Height | 1105mm |
Weight | 42kg |
Weifang galin powder coating equipment specialized in gema powder coating equipment ,
we can supply the best quality and sevice .
Weifang Galin Powder Coating Equipment CO.,LTD which located in Shandong district,specializes in manufacturing the coating equipment .We not only supply the high-quality coating equipment,but also the best service.
We are professional in the powder coating system and liquid painting system.The Powder coating system includes the powder booth,after-filter,nine-pipe cyclone,sieving machine ,hopper,powder coating machine/unit,manual electrostatic sprayer gun ,aotomatic electrostatic sprayer gun,panel controller,HV module,PCB board,gun injector/pump ,powder hose,filter and other parts;The Liquid paint system includes the water-screen booth,cup,electrostatic liquid painting gun ,air gun,diaphragm pump,constant voltage valve,pneumatic parts and so on. In addition,we can make all kinds of the high voltage module,like GEMA,WAGNER,NORDSON etc.
Any question, please contact us without hesitation.
-
