6 inch chipper

Product details
Dimension(L*W*H):310L x 175W x 180H;Payment Terms:L/C,T/T;
Port:QingDao;Feeding system:hydraulic or mechanical;
After-sales Service Provided:Engineers available to service machinery overseas;feeding roller:roller;
Cutter Diameter:640;Weight:370kg;
Condition:New;Packaging Detail:follow you request;
Chipper Max diameter:8" or 200mm;Purpose:chipping wood into small pieces;
Production Capacity:7-11cbm/h;Place of Origin:Shandong China;
blades No.s:1 stationary 2 rotary blades;Aperture Size:N/A;
Number of Cutter:3;Supply Ability:1200 Unit/Units per Month;
Certification:CE;Power Type:Diesel;
Delivery Detail:20day after deposit;Model Number:DWC-22/DWC-40;
Warranty:Two year;Length of Cutter:150;
Chip size:10-30mm;Mill Granularity:N/A;
Spindle Speed:540;Inlet Diameter:200x220mm;
Brand Name:Runshine;
Product Description



SPECIFICATIONS FOR 6 inch chipper
Model
DWC-18
DWC-22
DWC-40
Engine
18HP Changechai diesel engine
22HP Changechai diesel engine
40HP Laidong diesel engine
Chipper capacity
max. 150mm
max. 150mm
max. 200mm
Feeding system
Mechanical/Hydraulic
Mechanical/Hydraulic
Mechanical/Hydraulic
Flywheel diameter
640mm
640mm
640mm
Blades number
1 stationary blade, 2 rotary blades
Flywheel weight
85kg
85kg
85kg
Feed Hopper Inner Opening
200x220mm
200x220mm
200x220mm
Rated RPM
1080
1080
1280
Weight
650kg
690kg
800kg
Working efficiency
7-11cbm/h
7-11cbm/h
9-13cbm/h

JOYSTICK WITH FLOW CONTROL

hydraulic joystick has three positions.
wood can be fed, stop and reversed.
flow valve controls the flow and presure of hydraulic, adjust roller ratory speed.


FLY WHEEL

alloy steel

diameter 640mm

thickness 27mm

two blades and 4 fans

FEEDING ROLLER

HYDRAULIC FEEDING ROLLER

OPTIONAL: TWO ROLLERS

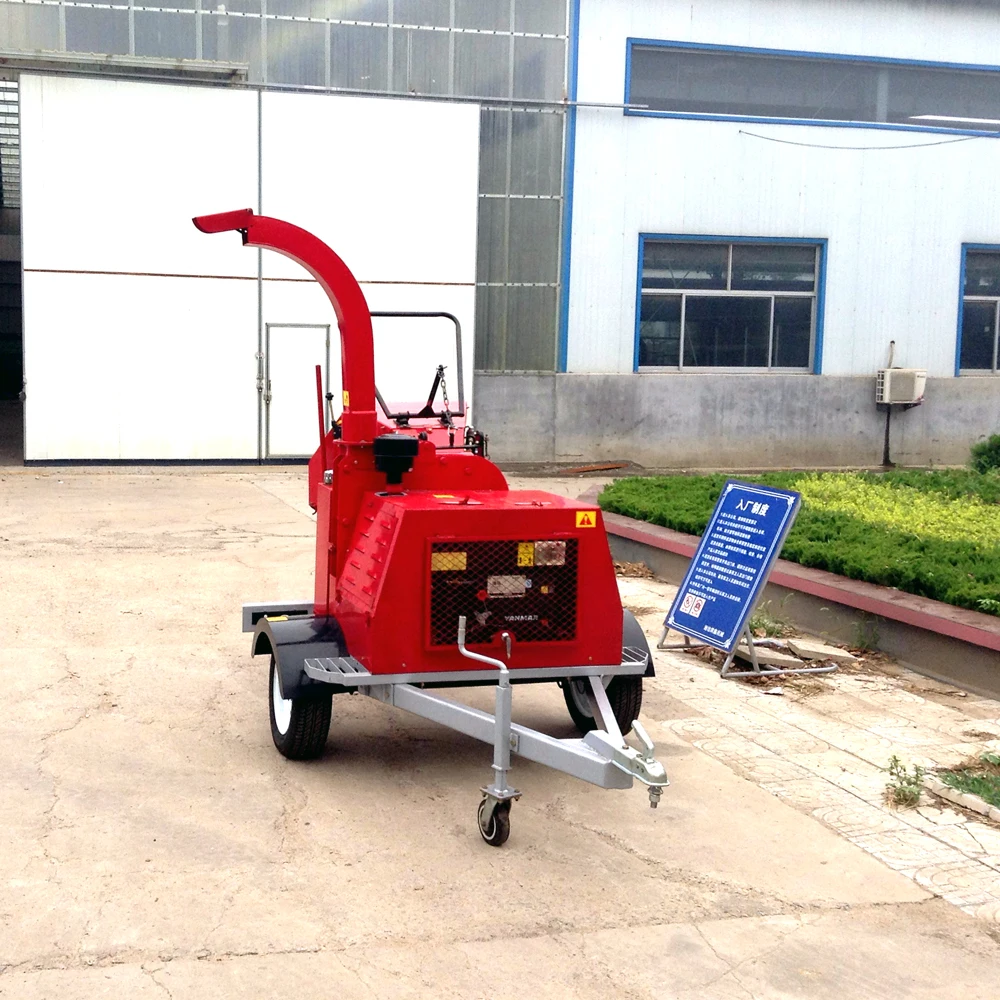

RUNSHINE DWC series wood chipper

1. 18hp, 22hp or 40hp diesel engine, electric start
2.  2“ balls hitch,360 discharge hood
3.  hydraulic feeding system,with flow valve,easy to control feeding speed
4. CE certificate
5. Mn-65 blades,2 rotary blades.
6.  suit for 5-15cm tree and branches .

Packaging & Shipping

Packaging
Size
1200*1150*1200mm
Weight
735kg



Packaging Details
The normal package is iron crate with plastic film.
20GP container: 20sets
40GP container: 40sets
