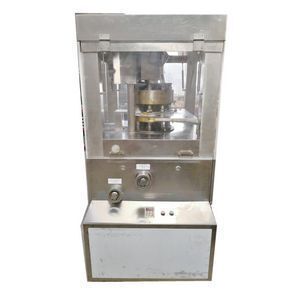

cheap price ZP9/17 high speed candy rotary tablet press machine
- 8450.00 set
| Certification: | CE SGS ISO9001; | Product Name: | cheap price ZP9/17 high speed candy rotary tablet press machine; |
| Condition: | New; | Max.production capacity (pc/h): | 20000-40000; |
| Supply Ability: | 5 Set/Sets per Month tablet press machine; | Warranty: | 1 Year; |
| After-sales Service: | Engineers available to service machinery overseas; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
| Place of Origin: | Jiangsu China; | Voltage: | 380V; |
| Max.depth of fill (mm): | 15; | Turret speed (r/min): | 20-40; |
| Usage: | Pharmaceutical; | Max.pressure (KN): | 60; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Brand Name: | Liming; |
| Port: | Shanghai/Ningbo/Guangzhou; | Max.dia. of tablet (mm): | 20; |
| Power(W): | 2.2KW; | Application: | pharmaceutical, chemical, food, electronicvindustry,etc; |
| Max.thickness of tablet (mm): | 6; | Dimension(L*W*H): | 880* 750*1600; |
| Dise (sets): | 17; | Weight: | 560; |
| Packaging Detail: | cheap price ZP9/17 high speed candy rotary tablet press machine would be packed in standard plywood case.; |
cheap price ZP9/17 high speed candy rotary tablet press machine
Introduction and Features:
This tablet press machine is designed for pressing round tablets or special shapes
from various kinds of granular materials. Rotary tablet press machine is primary

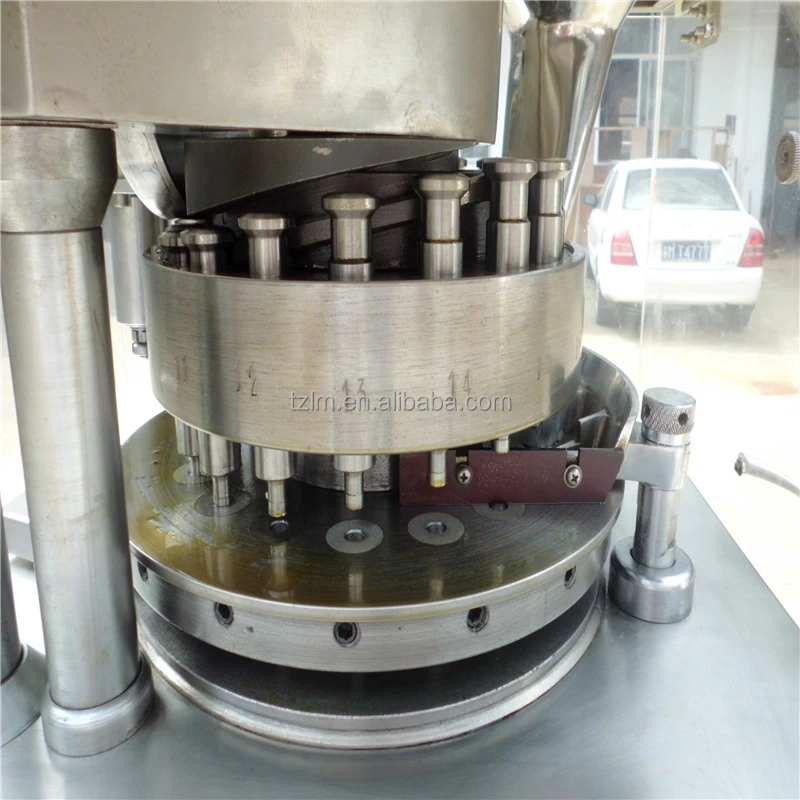

machine to fit batch production of tablets. The turret carries 19sets or 17sets
of punches and dies,so 17 tablets will be for each revolution of the turret.
During operation, the speed of the turret rotation,the depth of the filling material and
the thickness of the tablets can be adjusted .The mechanical buffer unit will prevent
punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder during the operation,
so that the blockage by the residual powder can be eliminated and the collected power
material can be reused.
Technical Parameters:
Mode | ZP17 |
Dis(sets) | 17 |
Max.pressure(KN) | 60 |
Max.dia.of tablet(mm) | 20 |
Max.depthof fill(mm) | 15 |
Max.thickness of tablet(mm) | 6 |
Max.production capacity(pc/h) | 20000-40000 |
Turret speed(r/min) | 20-40 |
Motor | 2.2KW 940r/min 380V/50Hz |
Overall size(mm) | 880*750*1600 |
Weight(kg) | 560 |

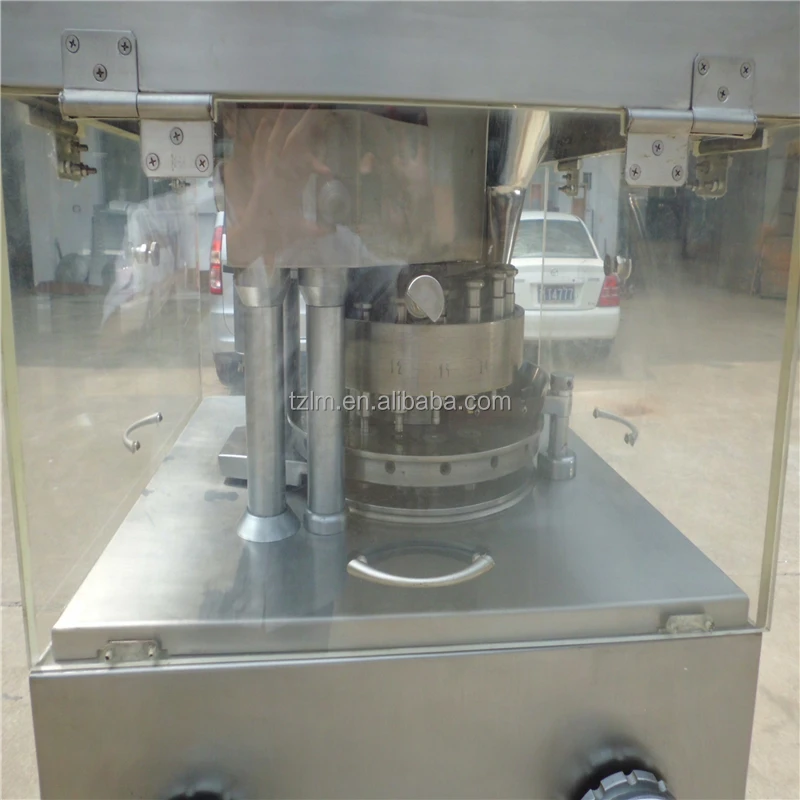

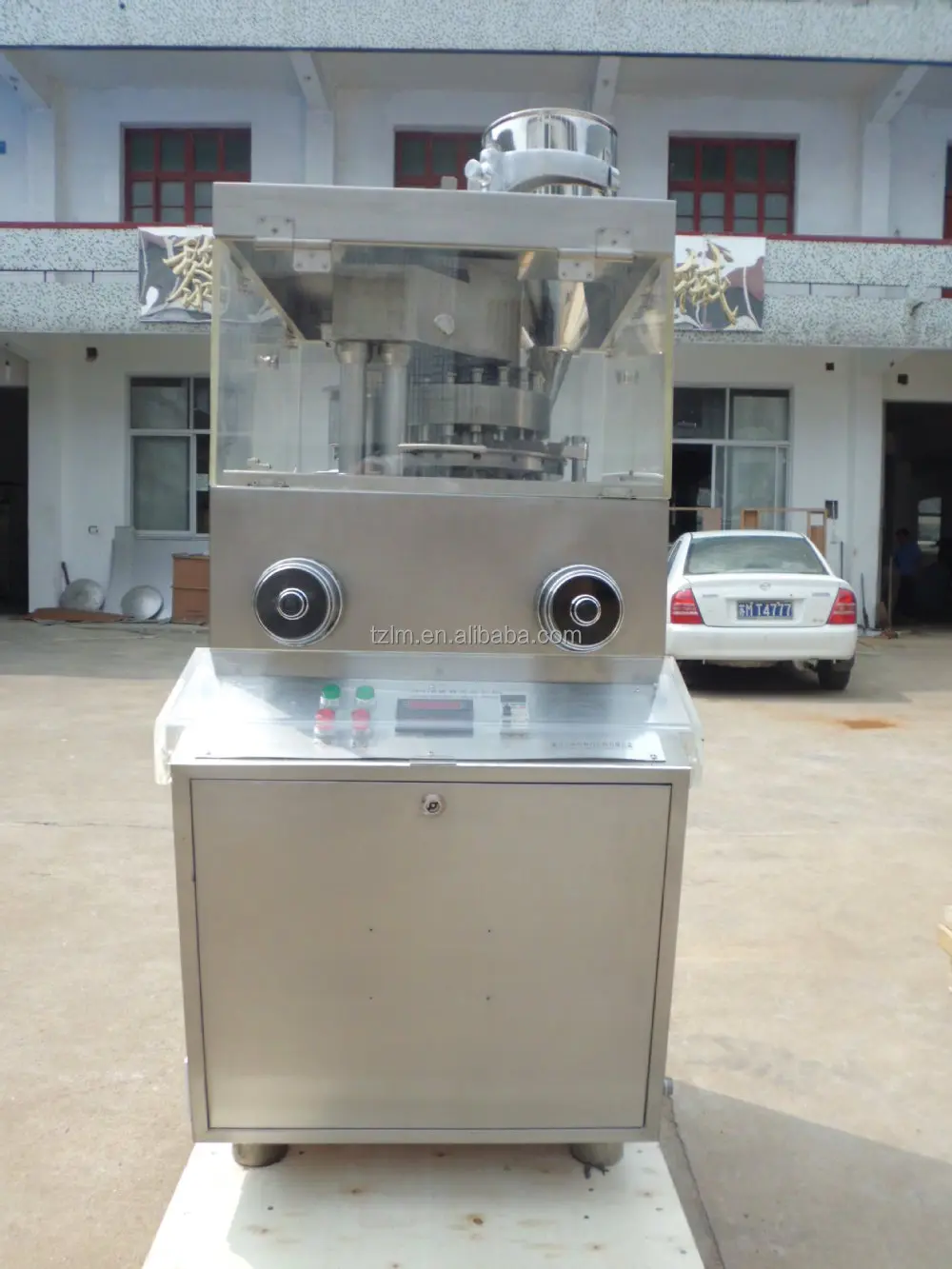

Product Show:
Packaging and Shipping:
1. Packaging Detail: Standard plywood case.
2. Delivery Detail: 15 working days after receiving your deposit.
3. Terms of Delivery: By air, by sea.
Our serives :
*Complete installation and operation manual
*Online service,24 hours around the clock
*Engineers available to service machinery overseas
*One year warranty
