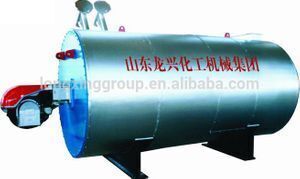

Heat Transfer Oil Furnace (Horizontal Oil-Fired)
-
Supplier: Shandong Longxing Chemical Machinery Group Co., Ltd. -
Region: Shandong, China -
Contact: Ms Lin Jiang -
Price: $5400.00 /set -
Min. Order: 1 set
| Type: | Heater; | Place of Origin: | Shandong China (Mainland); |
| Power(W): | 116-1200kw; | Model Number: | YY(Q)W; |
| Payment Terms: | T/T; | Port: | Qingdao port; |
| Place Style: | Horizontal; | Voltage: | 110V/220V/380V; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | ISO CE; |
| Brand Name: | LONGTENG; | Fuel: | Oil-Fired, gas-Fired; |
| Media: | Organic Heat Transfer Material; | Warranty: | One Year; |
| Condition: | New; | Manufacturing Level: | B; |
| Supply Ability: | 2 Set/Sets per Month; | Pressure: | Low Pressure; |
| Delivery Detail: | Shipped in 7 days after payment; | Dimension(L*W*H): | 2470*1640*900/4300*2350*1800; |
| Packaging Detail: | wooden case; | Weight: | 1090-7350kg; |
1. Descriptions:
The heat transfer oil furnace, with stable performance and reliable quality, is examined and approved by the State Technical Supervision Bureau, and is tested by Yantai City.
The machine runs with coal, heavy oil, light oil or flammable liquid as fuel, heat transfer oil as heat carrier. It transports heat to devices by the forced liquid circulation of the oil pump, then returns to re-heating.
This once-through type special industrial furnace is widely used in petrochemical, textile, printing and dyeing, plastic, rubber, food processing, wood processing, asphalt heating, carton production, vegetable dehydration, baking varnish and sand mold casting.
2. Categories:
The equipment is made up of furnace body and furnace base. The medium and small furnaces adopts vertical cylindrical structure, and the large furnace uses horizontal box structure. It has two ways of combustion: Machanical and manual burnings. The base of the mechanical buring furnace consists of reduction box, stoker and tapping machine and has three kinds of grates: Chain grate, reciprocating grate and climbing grate. The manual burning furnace uses the fixed grate, manual casting coal and tapping.
3. Features:
(1) The device can run at a lower pressure and get a higher operating temperature.
(2) The machine can get the stable heating and precise temperature.
(3) At all levels of load, thermal efficiency is maintained at optimum levels.
(4) The machine uses liquid phase to transport heat, and at 300 º C heat carrier is 70 times lower than the saturated steam pressure of water.
(5) It has complete operational control and security monitoring devices.
(6) It helps to save electricity, oil and water, and can recover investment in 3 to 6 months.
| Technical parameters I: | |||||||
| Type | YY(Q)W- 116Y(Q)(10) | YY(Q)W- 230Y(Q)(20) | YY(Q)W- 350Y(Q)(30) | YY(Q)W- 470Y(Q)(40) | YY(Q)W- 600Y(Q)(50) | YY(Q)W- 700Y(Q)(60) | |
| Rated Thermal Power (kw) | 116 | 230 | 350 | 470 | 600 | 700 | |
| Thermal Efficiency (≥ %) | 75 | 75 | 75 | 75 | 75 | 75 | |
| Design Pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Media Highest Temperature(& ordm; C) | 350 | 350 | 350 | 350 | 350 | 350 | |
| Furnace Oil Capacity(m³ ) | 0.07 | 0.1 | 0.26 | 0.3 | 0.52 | 0.57 | |
| Oil Cycle(m³ /h) | 18 | 30 | 30 | 45 | 60 | 87 | |
| Tubing Connecter Caliber(DN) | 50 | 70 | 80 | 100 | 100 | 125 | |
| System Installed Capacity(Kw) | Oil | 11 | 12 | 12 | 15 | 15 | 22 |
| Gas | 11 | 17 | 17 | 17 | 27 | 40 | |
| Dimensions (mm) | L | 2470 | 2470 | 2500 | 3500 | 3500 | 3760 |
| W | 640 | 1210 | 1450 | 1450 | 1740 | 1850 | |
| H | 900 | 1100 | 1250 | 1300 | 1300 | 1470 | |
| Equipment Weight(Kg) | 1100 | 1500 | 2400 | 2600 | 2900 | 3100 | |
| Technical parameters II | ||||||
| Type | YY(Q)W- 930Y(Q)(80) | YY(Q)W- 1200Y(Q)(100) | YY(Q)W- 1400Y(Q)(120) | YY(Q)W- 1800Y(Q)(150) | YY(Q)W- 2300Y(Q)(200) | |
| Rated Thermal Power (kw) | 930 | 1200 | 1400 | 1800 | 2300 | |
| Thermal Efficiency (≥ %) | 75 | 75 | 75 | 75 | 75 | |
| Design Pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Media Highest Temperature(& ordm; C) | 350 | 350 | 350 | 350 | 350 | |
| Furnace Oil Capacity(m³ ) | 0.75 | 0.87 | 1.2 | 1.7 | 2.4 | |
| Circulating Oil Volume(m³ /h) | 87 | 100 | 160 | 160 | 160 | |
| Tubing Connecter Caliber(DN) | 125 | 125 | 125 | 125 | 150 | |
| System Installed Capacity(Kw) | Oil | 22 | 40 | 40 | 40 | 66 |
| Gas | 40 | 40 | 42 | 45 | 70 | |
| Dimensions (mm) | L | 4300 | 4300 | 4610 | 4960 | 6000 |
| W | 2280 | 2350 | 1810 | 2000 | 2060 | |
| H | 1700 | 1800 | 2510 | 2700 | 2850 | |
| Equipment Weight(kg) | 4300 | 4500 | 5800 | 8500 | 10000 | |
1. Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery, but also one of the fixed companies for China National Chemical Equipment Corporation.
2. Our group has the Design License of Special Equipemnt in Grade D1 &D2, the Manufacture License of Special Equipment in Grade A1 &A2.
3. We also have the Maufacturer License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification and the CE Certification.
- 36 years professional in pharmaceutical &food &Chemical machinery
- A full range of technical support ,not only for our machines ,but also for your production process
- Competitive price&good quality
Installation and after-sale Service
We provide complete installation &operation manual in English for all machines supplied by us.
- Calling our technician to get advice
- Sending email to our technician
- Live chat with our technician on skype,trade manager,MSN,whats app,Wechat
- Inviting our technician to your factory
Warranty
All the machines made by QUANTA MACHINERY are warranted for one year .
About Trade Term
Q-----What’s the trade term for making business with us?
A----- FOB; It’s mainly depend on client’s requirement;
About Delivery Time
Q------What’s the Delivery time after placing order ?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the manufacturing process of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T.(40% by T/T for an order, the balance to be paid before delivery
-
