Electric heat conduction oil heater, electric heat conduction oil furnace, heat conduction oil boiler

Supplier: Jiangsu Ruiyuan Heating Equipment Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms vivian Li
Price: $4800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Heat transfer oil heater:	Industrial Electric Oil Heaters	Applicable industries:	manufacturing plant
Certification:	Chief Executive	Warranty:	12 months
payment terms:	letter of credit, wire transfer	Main selling point:	automatic
PID temperature controller:	Fuji Electric PXR5/9	Marketing Type:	normal product
Packaging Details:	Wooden box for electric oil heater	Dimensions (LWH):	custom made
Environmental requirements:	No direct sunlight.	brand:	Ryan
strength:	custom made	Heating medium:	heat transfer oil
Local service location:	not any	Supply capacity:	1000 sets of heat transfer oil heaters per year
Low pressure:	<0.5MPa	Core components:	Pressure Vessels, Pumps
Voltage:	380v	weight:	custom made
Video external inspection:	if	After-sales service provided:	Does not provide overseas services
Product Category:	fluid heater	High temperature accuracy:	±1°C
After Warranty Service:	Video technical support	port:	Shanghai
type:	heater	Alternate name:	Heat transfer oil boiler, heat transfer oil heater, heat transfer oil heater
Core Components Warranty:	1 year	Showroom location:	not any
Packaging Preview:		Ambient temperature:	Ambient temperature:
Furnace surface temperature:	Below 35℃	Health status:	new
Mechanical test report:	if	place of origin; place of origin:	Jiangsu, China

Product Description

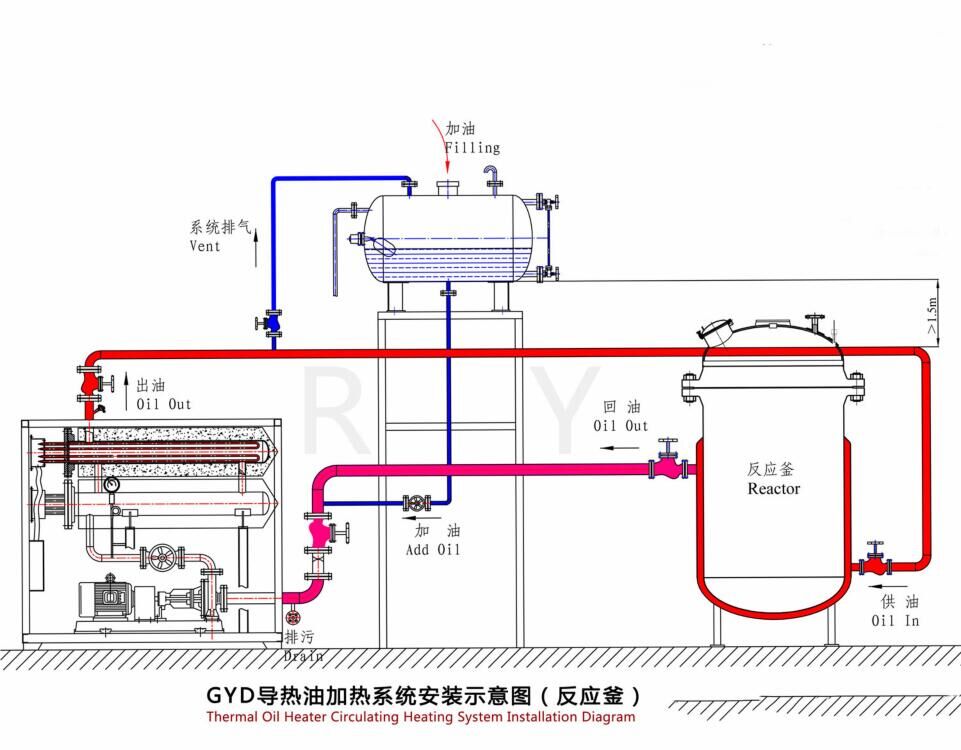

GYD series heat transfer oil heater is a new type of thermal energy conversion heating equipment. It uses electricity as power, converts it into heat energy through electrical organs, uses organic carrier (thermal heat transfer oil) as the medium, and drives the forced circulation of hot oil through a high-temperature oil pump to continuously heat, so as to meet the heating requirements of users. In addition, it can also meet the requirements of set temperature and temperature control accuracy. We manufacture capacities from 6 to 2,400 kw and temperatures up to +320 °C.

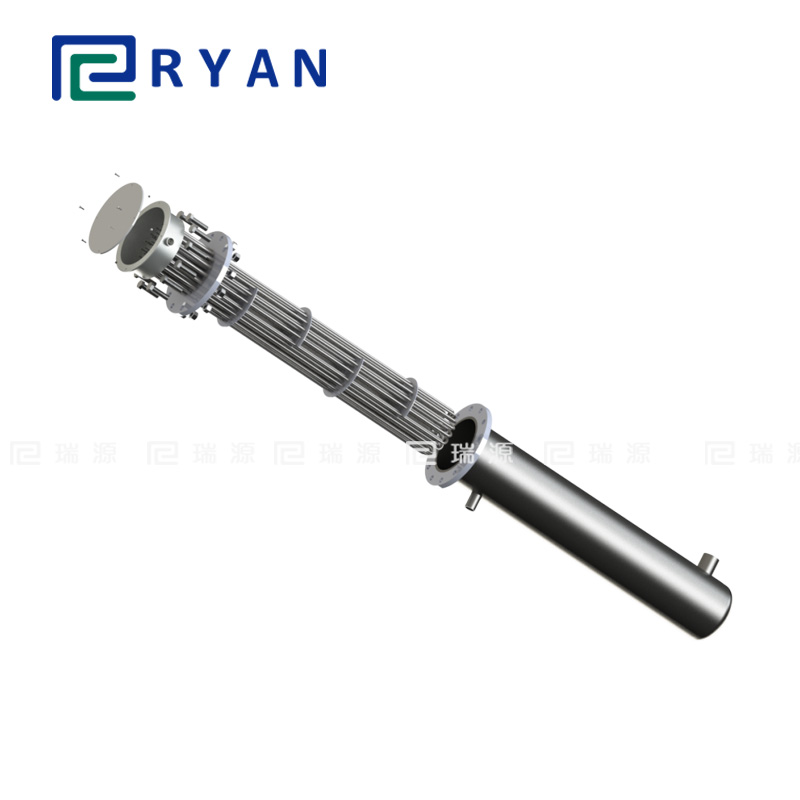

1. Electric heating system

2. High thermal efficiency

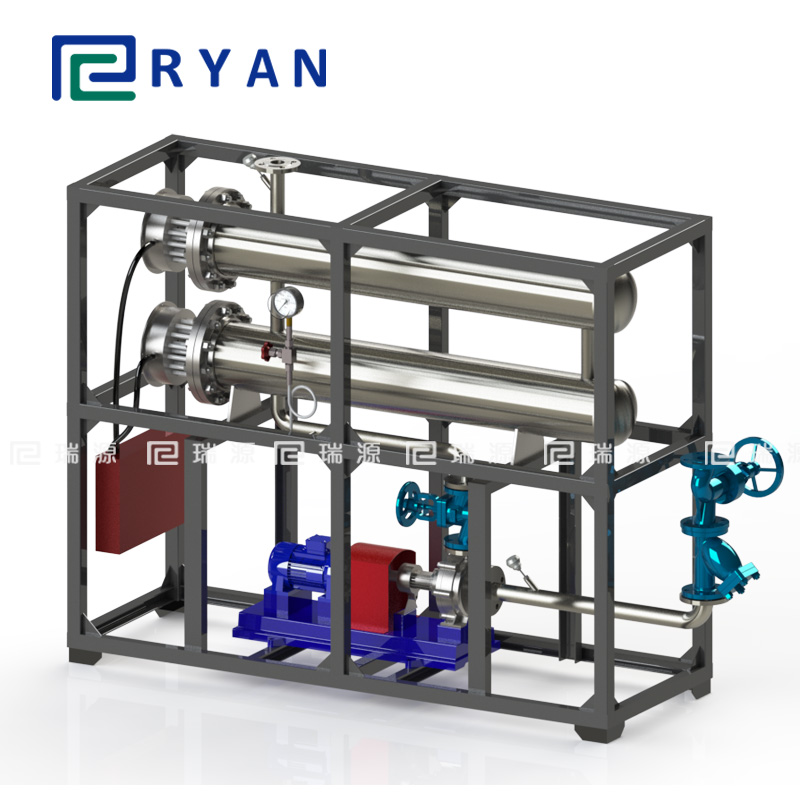

3. Horizontal centrifugal pump

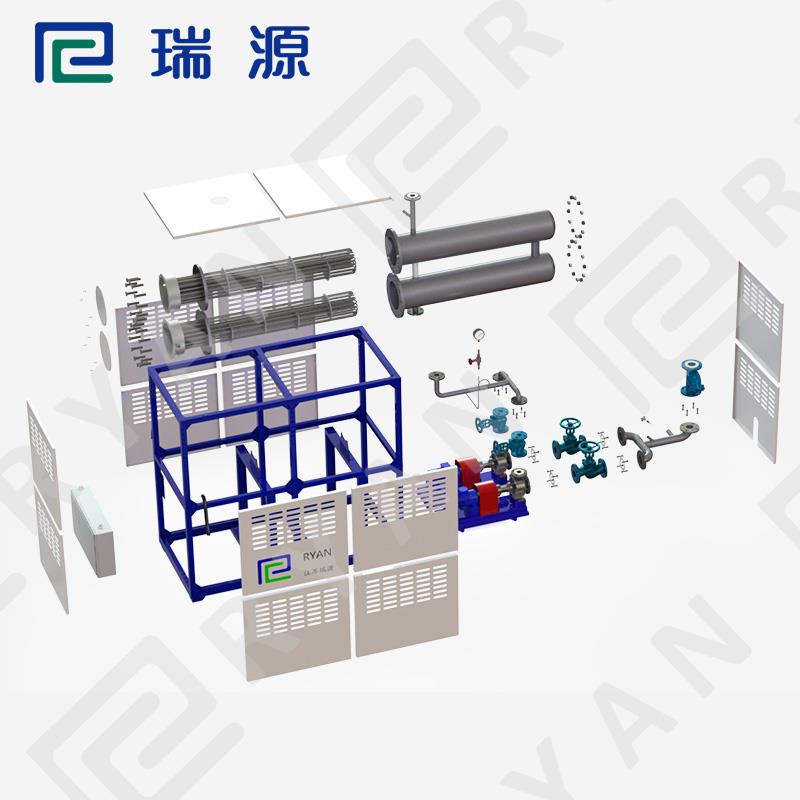

4. Fully welded structure

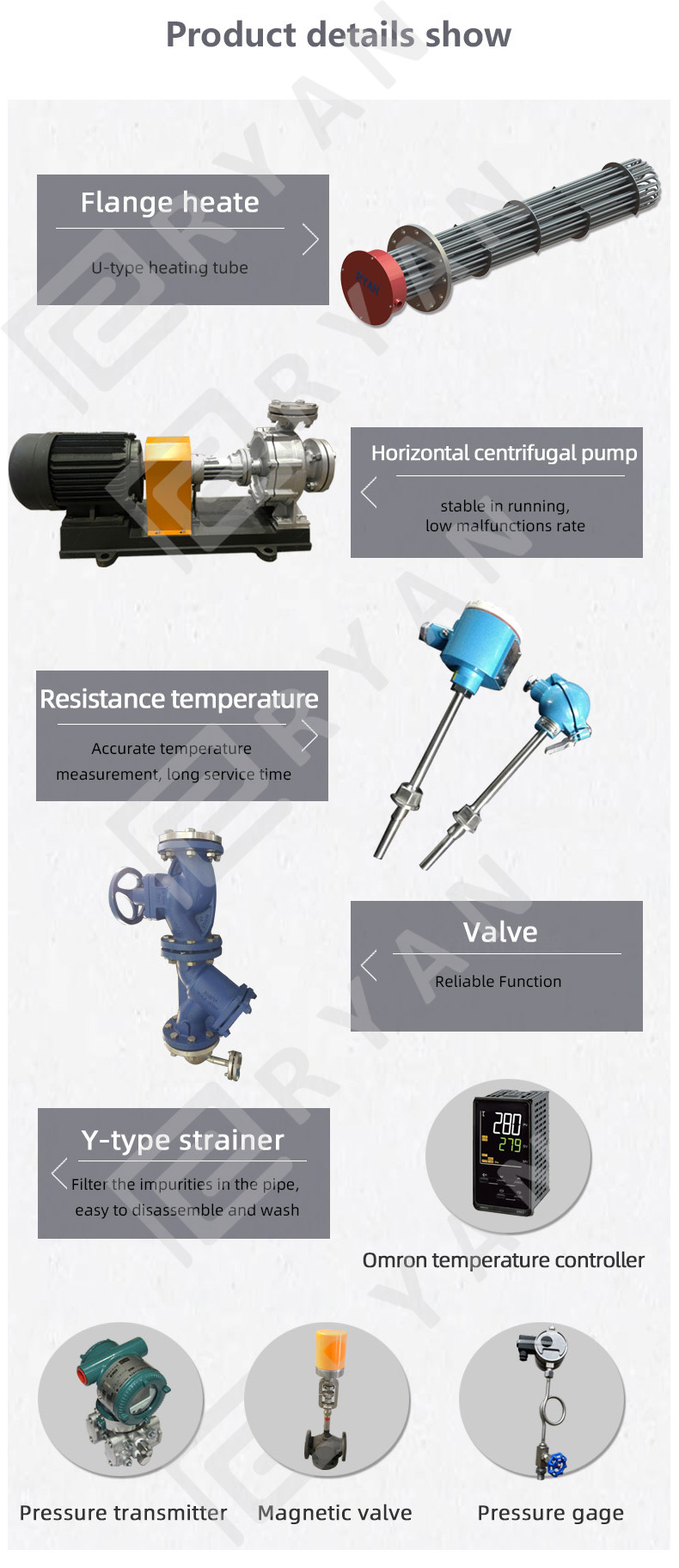

5. PID temperature controller (Fuji Electric PXR5/9)
6. Quick installation andlow maintenance
7. Isolation gate valve and filter
8. SSR (Solid State Relay) control on heater circuit
9. System stress testing and functional testing

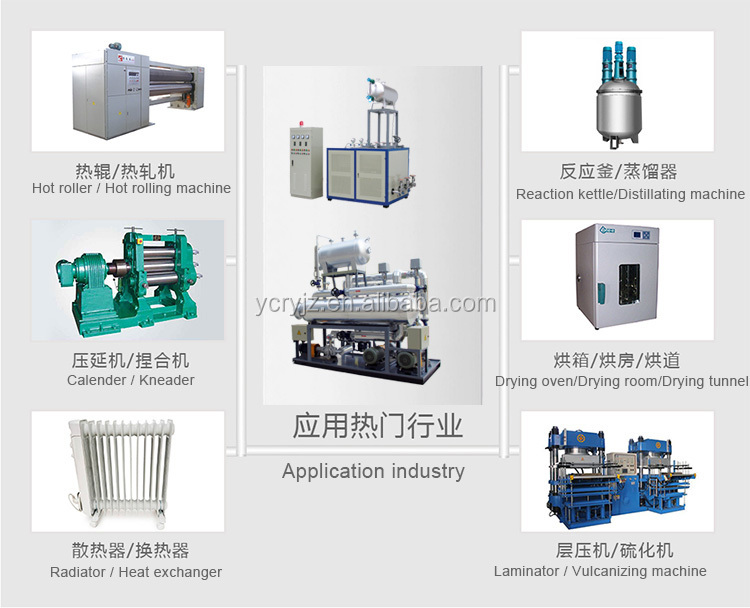

Suitable for non-woven, chemical, chemical fiber, rubber, composite materials, bathroom accessories and other industries.

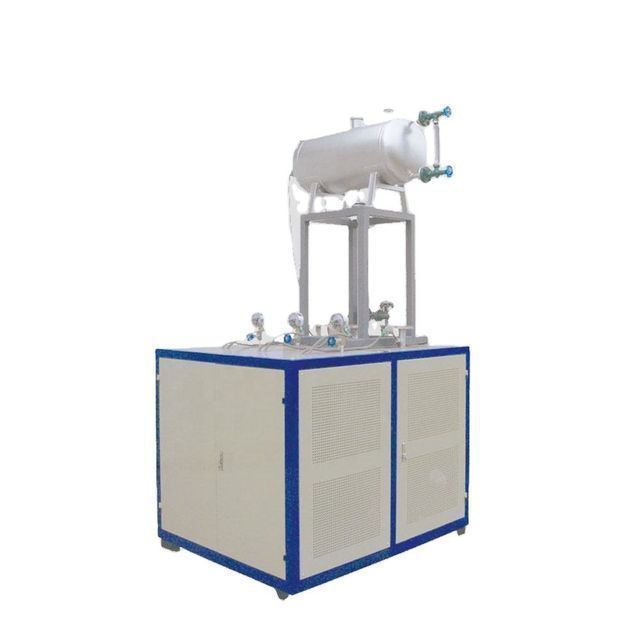

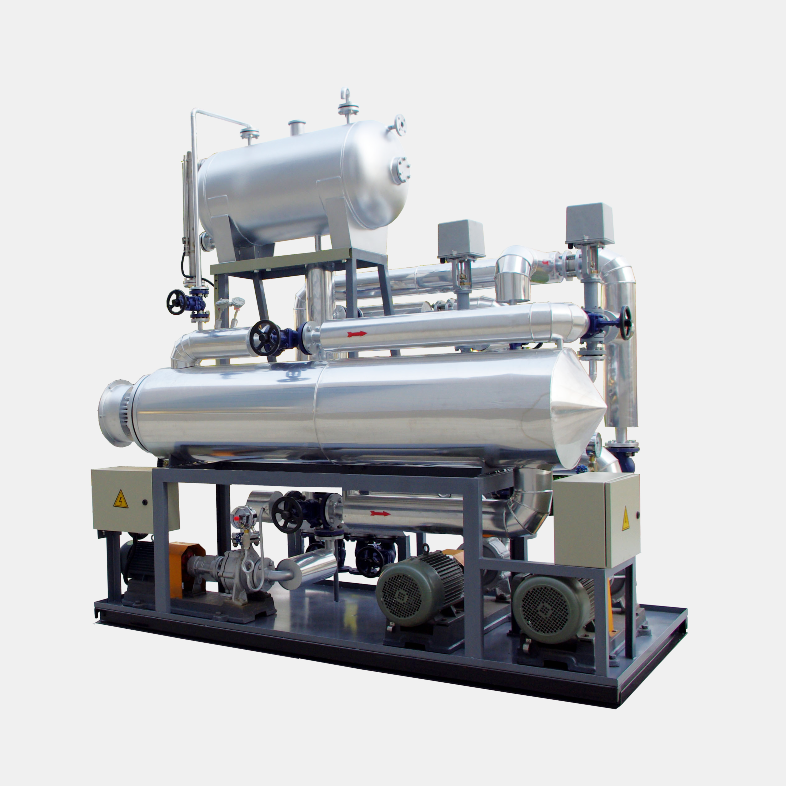

GYD series electric oil heater

Parameters Table

Model	heater strength (kilowatt)	oil capacity (L)	Dimensions	heating oil pump Flow head power					gross weight (Kilogram)	swell tank (L)
GYD10	10	15	11005001100	6	27	1.5	200	100
GYD18	18	twenty three	16005001250	6	27	1.5	200	130
GYD24	twenty four	28	19506501450	12.5	30	3	350	150
GYD36	36	48	19506501450	12.5	30	3	350	200
GYD48	48	48	19506501450	18	40	5.5	350	230
GYD60	60	52	19506501450	18	40	5.5	350	230
GYD70	70	60	21507001750	30	48	7.5	550	280
GYD90	90	68	21507001750	30	48	7.5	550	280
GYD120	120	105	22007001880	30	48	7.5	750	300
GYD150	150	195	22007001880	30	48	7.5	750	300
GYD180	180	230	22009001880	45	48	11	1200	320
GYD240	240	260	230010001950	80	38	15	1200	350
GYD300	300	293	260012002000	80	38	15	1600	350
GYD400	400	358	280012002000	80	38	15	1750	450
GYD500	500	510	280015002000	80	38	15	1850	550
GYD600	600	562	300018002150	80	38	15	1950	600
GYD700	700	638	300018002150	80	38	15	2200	650
