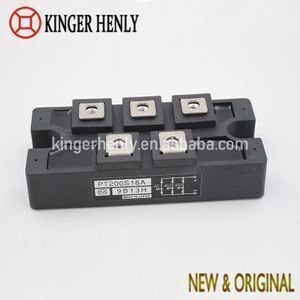

PT200S16A 1600V 200A Three Phase Bridge Rectifier Diode Module

Supplier: Shenzhen Kinger Henly Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Elisa Lin
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Germany;	Warranty:	180 Days;
IO(AV):	200A;	Peak Non-Repetitive Reverse Voltage:	1750V;
Peak Repetitive Reverse Voltage:	1600V;	Shipping by:	DHL,UPS,Fedex and EMS;
Tjw:	-40 to +150°C;	Mean On-State Current:	200A;
Model Number:	PT200S16A;	Delivery Time:	In stock;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Payment:	Paypal, Westen Union , T/T ...;
Product Name:	Three Phase Bridge Rectifier Diode Module;	Package Type:	Surface Mount;
Type:	Bridge Rectifier;	VRRM:	1600V;
Packaging:	Factory Sealed Packing;	Application:	Generator;

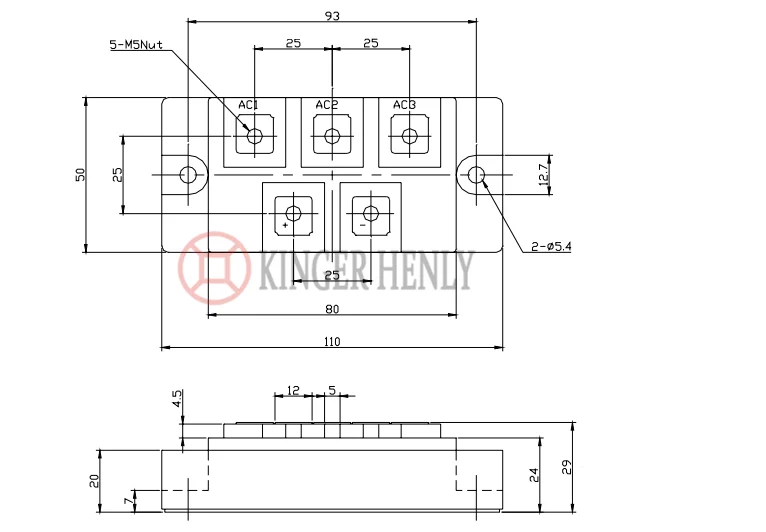

Weight:	370G;	Dimensions:	1109329mm;
Brand Name:	Original Brand;

Product Description

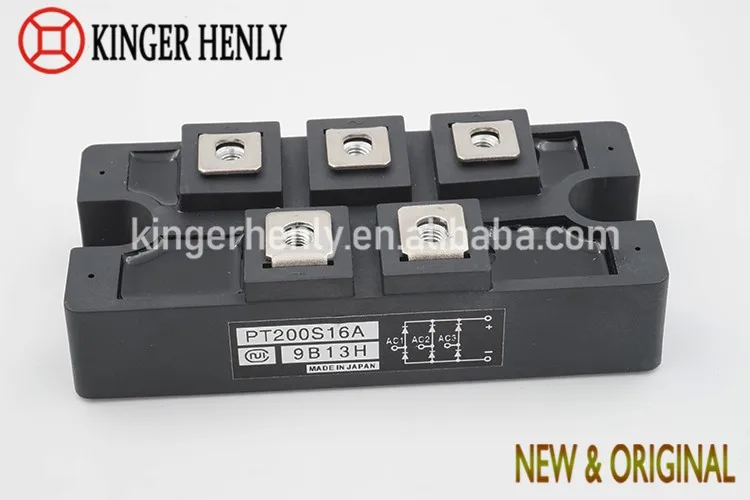

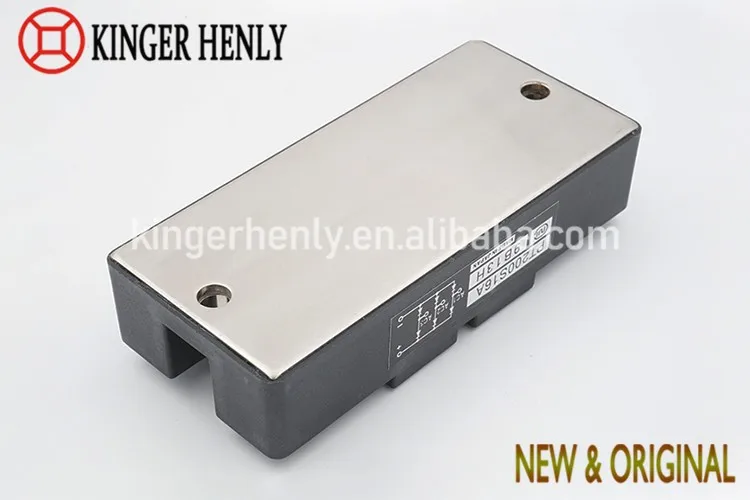

PT200S16A

DIODE MODULE
VRRM = 1600V IO(AV) = 200A

FEATURES

* Isolated Base
* 3 Phase Bridge Circuit
* Designed Power Circuit Board
* High Surge Capability
* UL Recognized, File No. E187184

TYPICAL APPLICATIONS
* Rectified For General Use

Maximum Ratings
VRRM : Repetitive peak reverse voltage		1600	V
VRSM : Non repetitive peak reverse voltage		1750	V
IO(AV) : Average rectified output current	3-phase full wave rectified Tc=Tt(ternimal)=72℃	200	A
IFSM : Surge forward current	50Hz half sine wave , 1pulse non repetitive	1850	A
I²t : I squated t	2msec to 10msec	170000	A²s
Tjw : Operating junction temperature range		-40 ~+150	℃
Tstg : Storage temperature range		-40~+125	℃
Viso : Isoration voltage	Base plate to terminals , AC 1 min	2500	V
Ftor : Mounting torque Case mounting Terminals	Greased M5 Screw M5	2.4 to 2.8 2.4 to 2.8	N·m N·m
Weight	Approx Net Weight	370	g

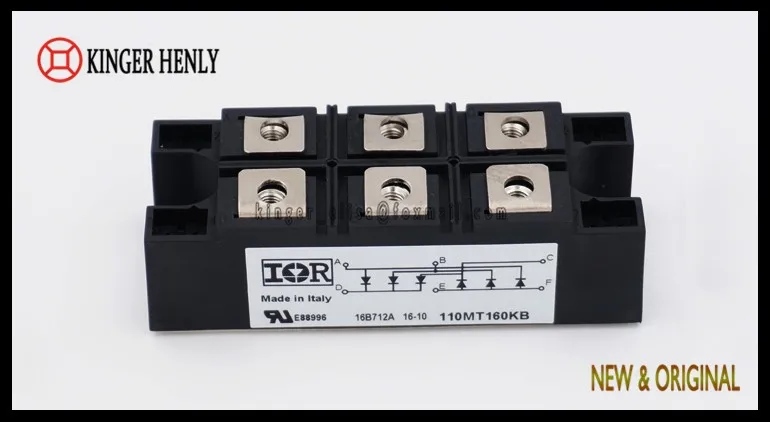

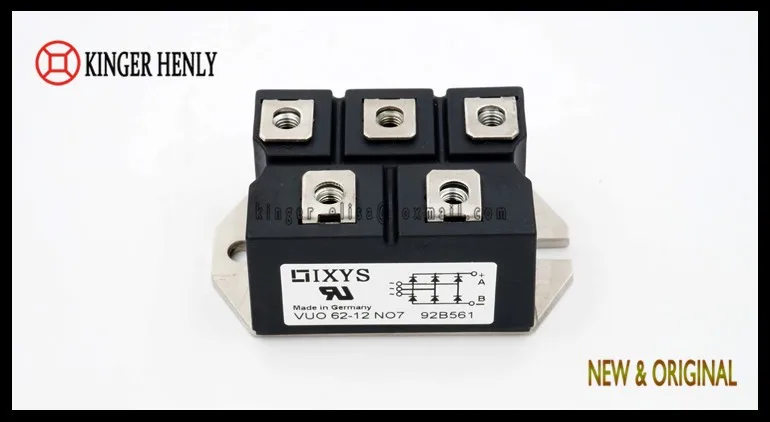

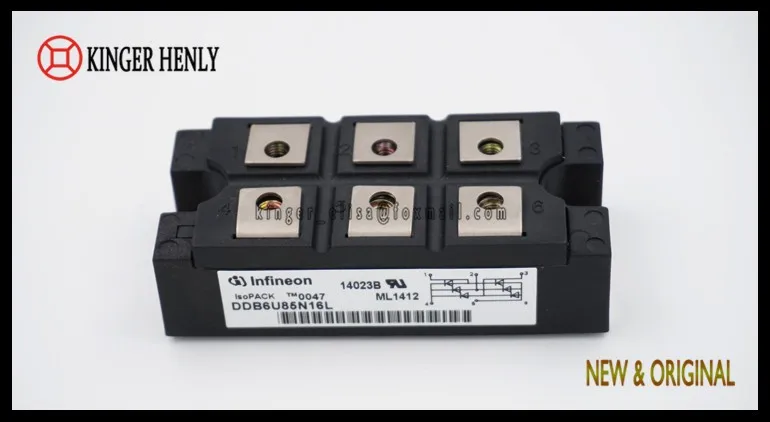

This is our products

Our company specializes in power modules electronic component , such like : IGBT, IPM, PIM, field effect, Schottky, fast recovery, SCR, three-phase bridge, rectifier diodes, current sensors, fuse tubes, frequency conversion, speed regulation and other power modules.

Shenzhen Kinger Henly Technology Co., Ltd

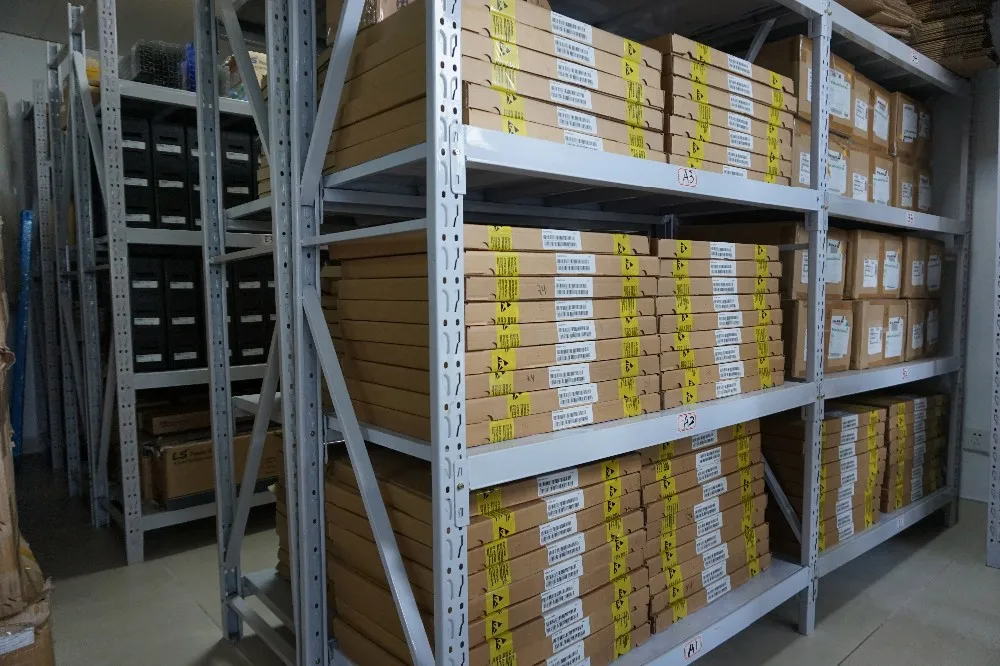

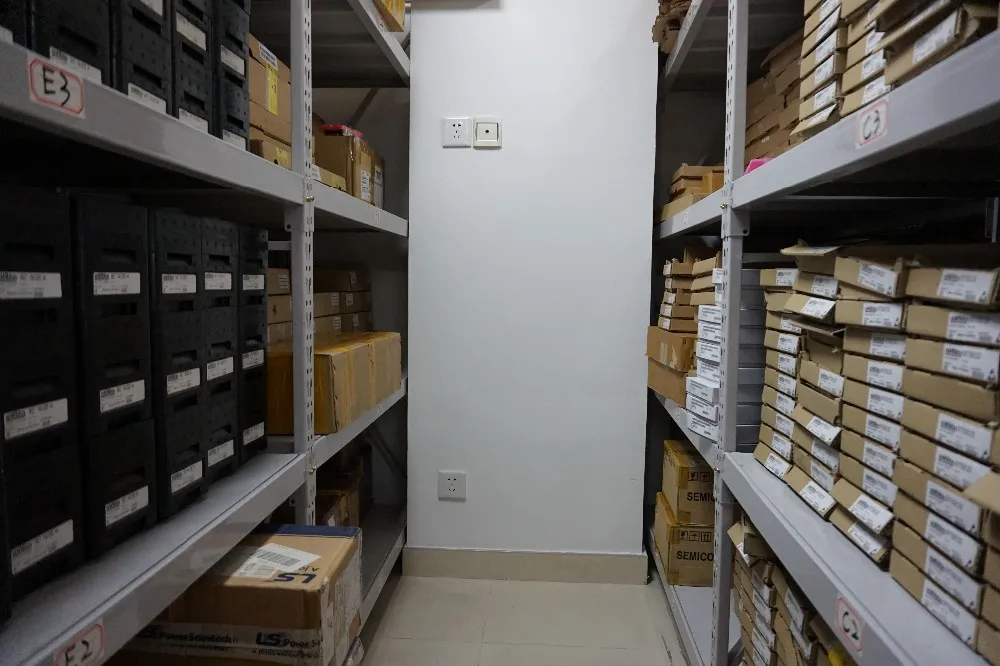

We have a big warehouse to make all the goods ready to send to you . The main product is semiconductor power module. The products are widely used in Electroplating power supply , motor welding , medical technique, communications, aerospace, ship craft, requency control, automatic control and other fields . Our company establish in 2005 , and we always believe in " quality first , price concessions, fast delivery , customers first ". And we know that WIN-WIN is the best way to create a better future with our customers .Welcome to visit us . We are looking forward to hear from you !

Packing & Delivery

Packing

We will always pack properly for the goods and keep it perfect with package . You will always be surprise when you get the package from us . Also if you have your standard packing request, and we will pack it with your wish .

Delivery

We can ship by DHL,FEDEX,TNT,UPS, EMS, POST OFFICE and so on. If you want to know better imformations about packing and delievery , feel free to contact us .

1. DHLShipping days: 3-5days

2. Fedex ,TNT, UPS Shipping days: 3-8days

3. Ems shipping days:8-20days

4. Post office shipping days:25-60days

Our Service

24 hours online service

We have a vailable and maturable programs for the customers :

Step one : Before the order we will make the best solutions for the customers .
Step second : When the order is going we will keep the post to the customers 3-4 times a week .
Step third : After the order we will make the service line 24 hours on for warranty. We stand by anytime.

Always considering for customers , helping customers ! Trust customers , trust ourselves !
