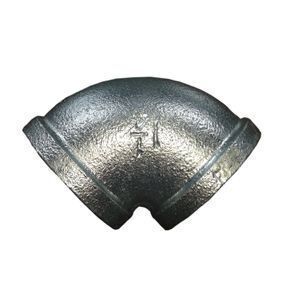

plumbing materials hot dip galvanized and black names malleable cast iron pipe fitting

Product details
Size:1/2' ~ 6';Dimension:EN 10242, ISO 49,ANSI/ASME B16.3;
Model Number:90 130 270 280 290 330 340 and so on;Material:Iron;
Shape:equal or reducing;Connection:Threading;
Technics:Casting;Usage:Convey Water, gas oil;
Place of Origin:Hebei China;Material:ASTM A197, ISO 5922 ,EN 1562;
Selling Units:Single item;Hot Sale:malleable iron pipe fittings;
Head Code:Round;Single gross weight:0.05 KG;
Surface treatment:Hot dip galv,Electric galv and black;Single package size:2X1X1 cm;
Package Type:CARTONS: CTN A: 47*31*20cm Vol:1.4Cft Weight:2 kg/pc. CTN B: 30*25*19.5cm Vol:0.8Cft Weight:1 kg/pc PALLET: 97cm*97cm Weight: 15kg/pc QTY: 1000ctns/20'FCL, 24Pallets/20 FCL WOVEN BAG, WOODEN BOX;Certificate:ISO9001:2008/ SGS/ CE;
Pressure:150 LB,300LB;Brand Name:HG,HE, IC,TC, TOPY,TOPI,;
Quality Control:Strict 100% Test;Thread Type:BS, DIN ,NPT;

plumbing materials hot dip galvanized and black names malleable cast iron pipe fitting





SPECIFICATION

MaterialMalleable iron
StandardThread: ISO 7/1
 Dimension: ISO 49, DIN 2950,EN10242
Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical propertyTensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure2.5Mpa
Working pressure1.6Mpa
TypeBeaded with ribs or banded with ribs
 Beaded without ribs or banded wihtout ribs
 Round/square
SurfaceGalvanized/ no galvanized
ColorWhite/black
ModelElbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
ConnectionMale, Female
ShapeEqual, Reducing
CertificateBSI,ANAB,ISO9001,FM,UL
ApplicationSuitable for pipe connect of steam, air, gas, oil and so on
 Buyer’s drawings or designs are available
PackageCartons without pallet
 Cartons with pallet
 Double woven bags
 Or as buyer’s requirements
Delivery detailsAccording to the quantities and specifications of each order
 Normal delivery time is from 30 to 45 days after receiving the deposit






















Malleable Iron Pipe Fittings Production:

Production Capacity:  60000 MT per Year

Lead Time:   Within 30 Days if enquiry not more than 10x20' Container

Factory Certificate:  ISO, SGS, ITS, BSI, Famous Brand Enterprise in Hebei, China











 Q1:Are you a factory or trading company?

    A: Established in 1984, HEBEI METAL TRADING  CO.,LTD  is a comprehensive group enterprise which have our own factory ,exporting branch and overseas branch



Q2:How does your factory do regarding quality control?

   A: Quality Assurance at HEBEI METAL TRADING  CO.,LTD starts with understanding the Customers Requirement and continues till the customer is completely satisfied with the delivery of products and services. Quality Control procedures are well defined and thoroughly implemented.



Q3:Can I get some samples?

    A: Yes,free samples are available for you.



Q4:  After sales service.

    A: Quality are promised. We have a dedicated after-sales department to be responsible for all subsequent work after delivery



Q5: How To Order

   A:1.To specify british,or American or German threads.

       2.To specify galvanized or black

       3.To specify plain or banded or beaded

       4.To specify figure number,size and quantity in pieces
