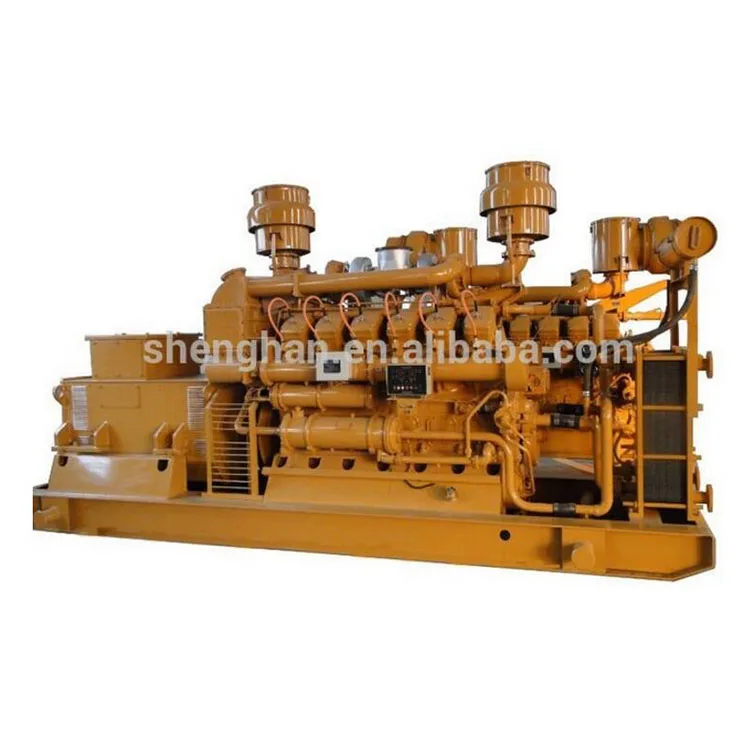

Low noise generating electricity power 120kw silent natural gas generator

Click here to contact

Product details

Ignition system:	ALTRONIC;	Rated Voltage:	220V, 380V, 400V, 415V, 440V;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Cooling method:	water cooled;
Brand Name:	SHENGHAN;	Delivery Detail:	within20 working days after the deposit;
Packaging Detail:	wooden case;	Start method:	auto start/key start;
Speed:	1500/1800RPM;	Rated Power:	10kw-1000kw;
Output Type:	AC Three Phase;	Regulator:	AVR;
Model Number:	SH10GFC-SH1000GFC;	Port:	QINGDAO;
Place of Origin:	Shandong China;	Frequency:	50/60HZ;
Rated Current:	18A-1800A;	Function:	AMF/ATS;
Control system:	DEEPSEEA /SMARTGEN/WOODWARD;	Supply Ability:	200 Set/Sets per Month;

Warranty	one year or 1500 running hours
Certificate	CE and ISO
Cooling method	Water cooling
Applicable fuel	Natural gas
Start method	24V Electric start
Control panel	automatic controller
Ignition system	Bosch
Alternator	Stamford and other famous brand
Condition	brand new
Fuel consumption	0.3m3/kw.h

Gas generator	Model	XSA-100GFQ
	Rated Power(kw/kva)	100/125
	Standby Power	110/137.5
	Type	open type,silent type,trailer type
	Current(A)	180
	Voltage(V)	220V,240V,400V,415V,480V
	Frequency(HZ)	50HZ/60HZ

Engine	Engine Brand	XSA
	Model	XSA10D110E200NG
	Rated Power(KW)	110
	Cylinders	6
	Bore(mm)	126
	Stroke(mm)	130
	Rated Speed(rpm)	1500/1800
	Start Method	Electrical
	Speed Govering	Electronic
	Cooling Method	water cooling
	Consumption	0.3m³/kw.h

Alternator	Brand	XSA
	Rated Power(kw/kva)	100/125
	Rated Frequency(HZ)	50HZ/60HZ
	Rated Voltage(V)	220V,240V,400V,415V,480V
	Power Factor	0.8
	Connection Type	3P4W
	Excitation Method	Brushless
	Voltage Regulation	AVR
	Protection	IP23
	Class	H
