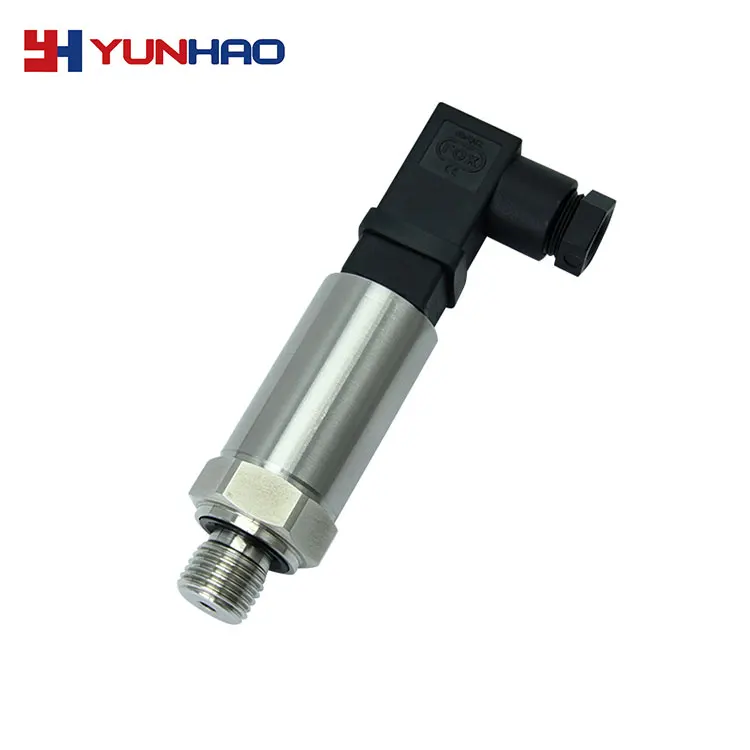

4-20mA Pressure Transmitter
- 24.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Accuracy: | 0.25%FS , 0.5%FS; | Port: | SHANGHAI; |
| Packaging Detail: | STANDARD EXPORTED PACKAGE; | Housing material: | SUS304,316L; |
| Electrical connector: | Mini-DIN43650 ,Waterproof cable , M12*1; | Brand Name: | YUNHAO; |
| Operating temperature: | -20-100°C; | Temperature drift: | 0.02%FS/°C; |
| Temperature compensation: | 0-80°C; | Supply Ability: | 5000 Piece/Pieces per Month; |
| Pressure Connector: | G1/4 , 1/4NPT , R1/4 , G1/8 or customize; | Stability: | 0.2%FS/annual; |
| Model Number: | PT2110; | Payment Terms: | L/C,T/T,Western Union,PayPal; |
| Place of Origin: | Anhui China; | Pressure range: | -0.1-0-60MPa (optional); |
Performance parameter
Pressure ranges | -0.1-0-60MPa (optional) | Temperature compensation | 0-80°C | ||
Precision | 0.25%FS , 0.5%FS | Operating temperature | -20-100°C | ||
Output signal /Supply | 4…20mA | 0…10V | 10…90% of VS | Safe overload | 150% |
VS=8…36V | VS=12…36V | VS=2.7…5V | Ultimate overload | 200% | |
Pressure connector | G1/4 , 1/4NPT , R1/4 , G1/8 or customize | Temperature drift | 0.02%FS/°C | ||
Electrical connector | Mini-DIN43650 ,Waterproof cable , M12*1 | Long-term stability | 0.2%FS/annual | ||
Load capacity | Current mode : R=[(VS- VS min )/0.02A]Ω | Housing material | SUS304,316L | ||

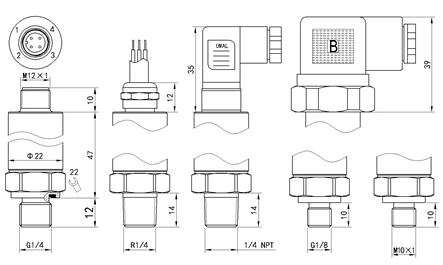

Product outline drawing
