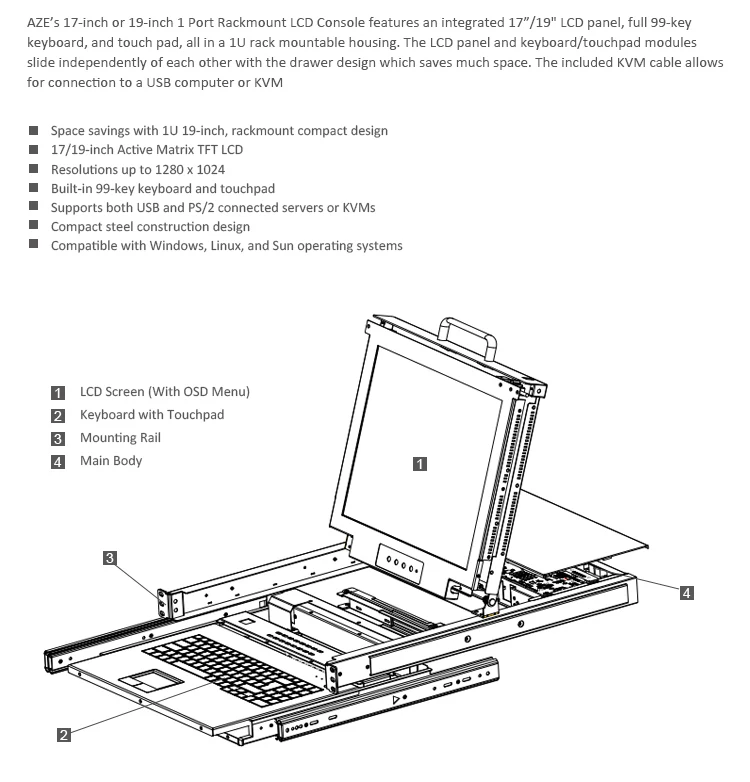

1U Single-Port KVM Console for Server Rack - 17 inch
-
Supplier: Ningbo Aize Imp. & Exp. Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr. Tony Tony -
Price: $412.00 /piece -
Min. Order: 1 piece
Product details
| Monitor Connections: | 1 Ports; | IP Rating: | IP20; |
| Certificate: | CE/RoHS/FCC/UL; | Mounting Option: | 19 in. EIA Rack-Mount; |
| Interface Type: | D-Sub; | Use: | Data Center,Control Room,Monitor Room,Server Management; |
| Brand Name: | AZE; | Place of Origin: | Zhejiang China; |
| Products Status: | Stock; | Single gross weight: | 17 KG; |
| Resolution: | 1280 x 1024; | Computer Connections: | 1 Ports; |
| Model Number: | RMCON1701; | Color: | RAL9005 BLACK; |
| Selling Units: | Single item; | Package Type: | Carton or Wood Crate; |
| Single package size: | 76.5X61.5X18.5 cm; | Form of sale: | OEM/ODM; |
| Custom Design: | Yes; | Product Name: | 1U Single-Port KVM; |
| Warranty: | 1 Year; |
1U Single-Port KVM Console for Server Rack - 17 inch
| Technical Specifications | |
| Model | RMCON1701 |
| General | |
| KVM ports | 1 |
| Number of Monitors Supported | 1 |
| Display Size | 17inch |
| Cables Included | Yes |
| Panel Type | Active Matrix TFT LCD |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | Yes |
| U Height | 1U |
| Performance | |
| Brightness | 250cd/m² |
| Color Depth | 16.7M colors |
| Contrast Ratio | 1000:1 |
| Max Resolution | 1280 x 1024 |
| Pixel Pitch Support | 0.264 x 0.264mm |
| Connectors | |
| Console Interface(s) | 1 - VGA (15 pin) |
| Power | |
| Input Current | 1.5A |
| Input Voltage | 100 – 240V AC |
| Power Consumption | 13W |
| Environmental | |
| Humidity | 0-80% RH, non condensing |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Physical Characteristics | |
| Color | Black |
| Product weight | 11.7kg (25.8 lb) |
| Product Dimension(WxDxH) | 448mmx484mmx42.5mm/17.6 inx19 inx1.7 in |
+
| Model | Description |
| RMCON1701 | 1U Single-Port KVM Console for Server Rack - 17 inch |
| RMCON1901 | 1U Single-Port KVM Console for Server Rack - 19 inch |
