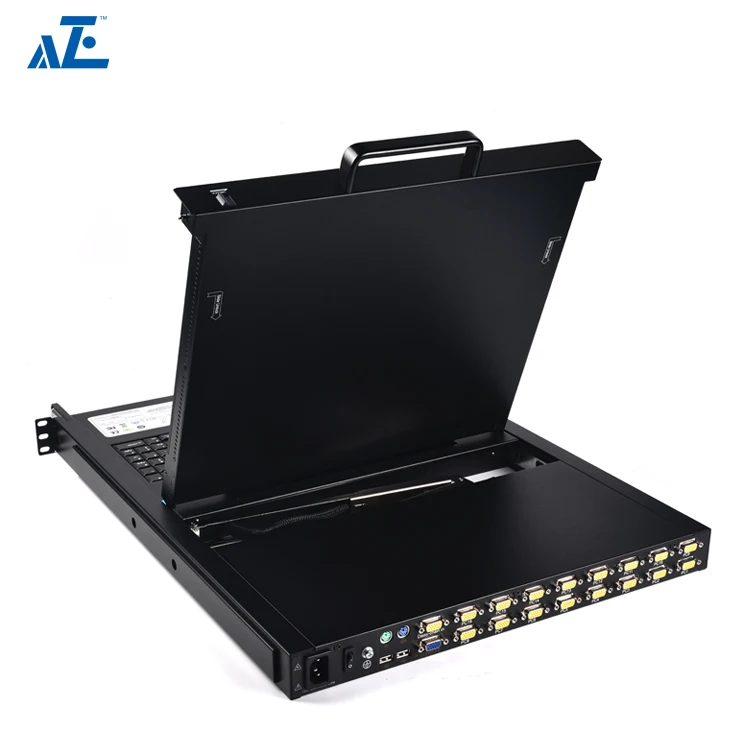

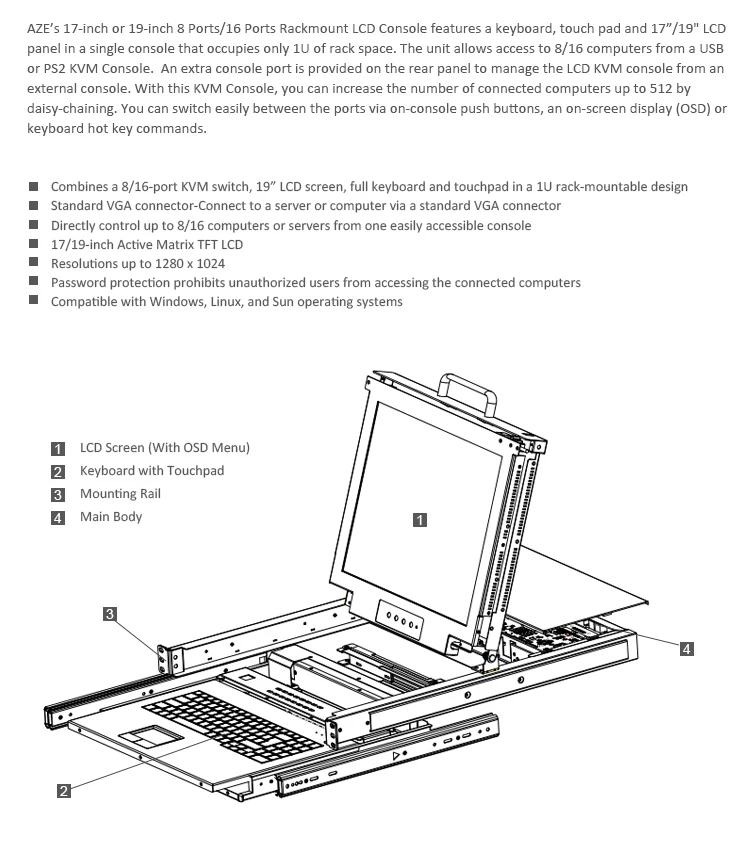

Hot Selling 19-In. 8 Port 1u KVM Console Console 8-Port Usb/Ps2 Rack Mount KVM Switch

Click here to contact

Product details

Products Status:	Stock;	Mounting Option:	19 in. EIA Rack-Mount;
Model Number:	RMCON1916;	Color:	RAL9005 BLACK;
Certificate:	CE/RoHS/FCC/UL;	Interface Type:	D-Sub;
Product Name:	16 Port KVM Switch;	Use:	Data Center,Control Room,Monitor Room,Server Management;
Warranty:	1 Year;	Package Type:	Carton or Wood Crate;
Computer Connections:	16 Ports;	Delivery Detail:	0 days after payment;
Resolution:	1280 x 1024;	Monitor Connections:	1 Ports;
Brand Name:	AZE;	Place of Origin:	Zhejiang China (Mainland);
Form of sale:	OEM/ODM;	Custom Design:	Yes;
Single gross weight:	22 KG;	Selling Units:	Single item;
Single package size:	76.5X61.5X18.5 cm;	IP Rating:	IP20;

Hot Selling 19-In. 8 Port 1u Kvm Console Console 8-Port Usb/Ps2 Rack Mount Kvm Switch

Technical Specifications
Model	RMCON1916
General
KVM ports	16
Number of Monitors Supported	1
Display Size	19inch
Cables Included	Yes
Panel Type	Active Matrix TFT LCD
PC Interface	USB and PS2
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Performance
Brightness	250cd/m²
Color Depth	16.7M colors
Contrast Ratio	1000:1
Max Resolution	1280 x 1024
Pixel Pitch Support	0.294 x 0.294mm
Connectors
Console Interface(s)	16 - VGA (15 pin)
Host Connectors	1 - VGA (15 pin)
Other Interface(s)	1 - VGA (15 pin)
	2 - USB Type-A (4 pin)
	2 - PS/2 (6 pin)
Power
Input Current	1.5A
Input Voltage	100 – 240V AC
Power Consumption	23W
Environmental
Humidity	0-80% RH, non condensing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Product weight	13.6kg (30 lb)
Product Dimension(WxDxH)	448mm x605mmx42.5mm/17.6 inx23.8 inx1.7 in

Model	Description
RMCON1708	1U 8-Port Rackmount KVM Console for Server Rack-17 inch
RMCON1716	1U 16-Port Rackmount KVM Console for Server Rack-17 inch
RMCON1908	1U 8-Port Rackmount KVM Console for Server Rack-19 inch
RMCON1916	1U 16-Port Rackmount KVM Console for Server Rack-19 inch
