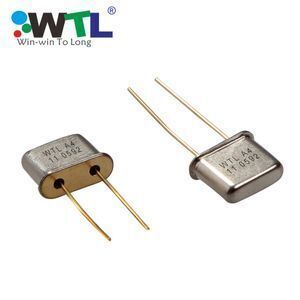

Electronic Products and Components UM-1 44.645mhz 20pF Crystal Oscillator

Supplier: WTL International Limited
Region: Guangdong, China
Contact: Ms. Pearl Zhu
Price: $0.25 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Model Number:	WTL2.06074ZX;	Warranty:	Global 180 Days Return;
Port:	Shenzhen;	Payment:	T/T,Western Union, L/C, Paypal, Credit card;
Frequency Tolerance (at 25°C):	±10ppm;	Place of Origin:	Guangdong China;
Frequency Stability:	±10ppm;	Package:	UM-1;
Frequency:	44.645MHz;	Supply Ability:	10000000 Piece/Pieces per Month 44.645mhz Crystal Oscillator;
Brand Name:	WTL;	Load Capacitance(CL):	20pF;
Packaging Detail:	Opp Bag + Carton,500pcs/bag(Electronic Products and Components UM-1 44.645mhz 20pF Crystal Oscillator);	OEM:	Welcome;
Operating Temperature Range:	-20 °C to +70°C;	Payment Terms:	L/C,T/T,Western Union,Paypal, Credit card;
About Us:	19 Years Experience;

Electronic Products and Components UM-1 44.645mhz 20pF Crystal Oscillator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

FEATURE

1. Excellent frequency temperature characteristics extending across a wide temperature range

2. Excellent aging characteristics

3. Uniform frequency tuning range and modulation sensitivity

4. Excellent shock resistance

ELECTRICAL SPECIFICATIONS

Quartz Crystal (Reststance Welded UM-1 DIP)
Item	Specifications
P/N	WTL2.06074ZX
Frequency Range	44.645MHz
Load Capacitance(CL)	20pF
Frequency Tolerance (at 25°C)	± 10ppm
Frequency Stability Over Operating Temperature Characteristics	± 10ppm
Operating Temperature Range	-20°C--+70°C
Storage Temperature Range	-40°C to + 85°C
Shunt Capacitance (C₀)	7.0 pF Max
Driver Level	100µW Typical
For other information, please contact WTL freely. WTL specializing in many kinds of crystal, like Tuning fork crystal, Quartz Crystal Filiter, Ceramic Resonator & Filter, Crystal Oscillators, VCXO, TCXO, OCXO, Saw device and so on.

Electronic Products and Components UM-1 44.645mhz 20pF Crystal Oscillator

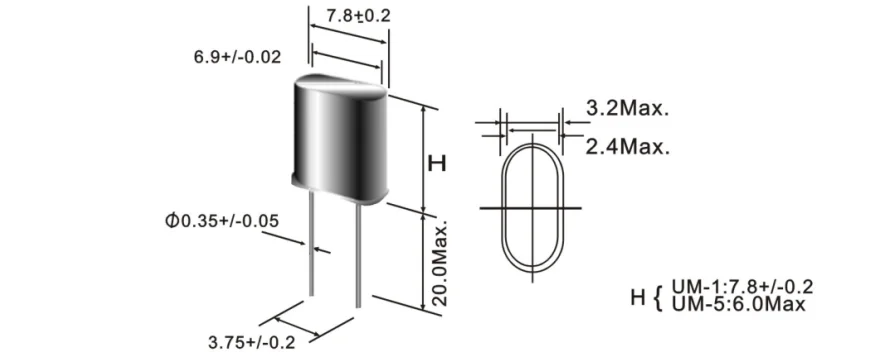

Dimension

1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ

1.What is the general lead-time of the products?

Product	Lead Time
HC49 Series	1-2 weeks
SMD Crystal	1-4 weeks
DIP Oscillator	1-2 weeks
SMD Oscillator	1-3 weeks
TCXO	2-8 weeks
Watch Crystal	1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.

3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.

4.What is the WTL main material?

Type	Vendor
Crystal Bar	South Urals,Russia- Crystal Factory, TF
Base	SMI/NTK/KYOCERA(JP)
IC	NPC- Japan
Top Cover	Hua Nu Dike/Yoshikawa Corporation (JP)
Conductive Glue	Three Bond – (JP)

How to Contact Us?

Click Here To Get Datasheet and More Discounts!

Electronic Products and Components UM-1 44.645mhz 20pF Crystal Oscillator
