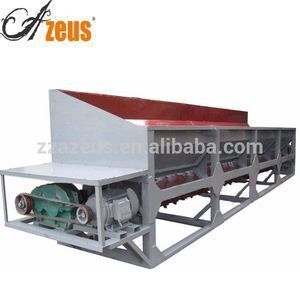

2017 High quality wood log debarker/ log skin peeling machine/ timber debarking machine for sale

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Warranty:1 Year;
Feature:High Debarking Efficiency;Packaging Detail:Plywood Export standard packing;
Capacity:10-15t/h;Spindle Speed:2400r/min;
Type:Wood Debarker Peeling;Supply Ability:500 Set/Sets per Month;
Raw material:Wood Tree Log;After-sales Service Provided:Engineers available to service machinery overseas;
Dimension(L*W*H):9300*1500*1600mm;Port:Qingdao;
Place of Origin:Henan China;Voltage:380V;
Wood length:<6m;Name:Wood Log Debarker;
Product name:Wood Debarker Mahine;Power(W):7.5kw;
Condition:New;Wood Diameter Range:20-500mm;
Model Number:AUSBOJ-9;Wood Length Range:1-6m;
Wood Loss Rate:2% Wood Log Debarker;Functions:Wood Debarking Machine Used;
Power:2*7.5kW;Peeling Rate:95%;
Delivery Detail:15-20 working days after deposit;
Product Description

High quality wood log debarker/ log skin peeling machine/ timber debarking machine for sale

1. Wood peeling machine use open silo, from one side feeds materials, from the other side discharge. The assembly line operation to overcome the existing peeling machine feed, discharge, storage shortcomings and with high efficiency.

2. Due to the impact of gear teeth on wood, the wood logs in the bin for circulating movement, so stripping efficiency is high. The peeling rate could reach 95%.

Wood debarker/Barking/peeler machine is suitable for large,medium and small paper mills, pulp mill, wood factory, wood processing plant, forestry factory, timber yard, artificial board factory (such as plywood plant, medium density fiberboard factory etc.).

Working principle

 High quality wood log debarker/ log skin peeling machine/ timber debarking machine for sale

1.The stripping machine uses the open silo, which can be fed from one end of the material and the other end of the discharge line. It overcomes the shortcomings of the existing roller type peeling machine, such as power failure, feeding, discharging and sectional operation, and the work efficiency is high.
2. Wood peeling machine due to the impact of the teeth logs, wood is not only the cycle of movement in the casing, and around its own rotation, so peeling machine with high efficiency, eucalyptus and poplar difficult peeling species has good peeling effect, purity reached more than 95%.
3. Wood peeling machine for wood adaptability, diameter of different species, wood peeling machine manufacturers, the length and shape of the wood section for peeling, because the logs do rotary motion and irregular concave beating, the bending logs can be very good contact with peeling teeth. As a result, the rate of stripping of bent logs is much higher than that of other rollers.
4. Wood peeling machine for large casing is fixed, so the low energy consumption, low failure rate, maintenance workload is small, the noise and vibration is much lower than roller peeling confidential, wood peeling machine can produce landing, even without installing the base, easy to use.

Technical data

2017 High quality wood log debarker/ log skin peeling machine/ timber debarking machine for sale

Model

AUSBOJ-6

AUSBOJ-9

AUSBOJ-12

Power(kw)

2-7.5

2-7.5

4-7.5

Rotating speed of roller(r/min)

240

240

240

Wood length(m)

≤6m

≤6m

≤6m

Capacity(t/h)

6-10

10-15

15-20

Size of machine(m)

6.3*1.3*1.55

9.3*1.5*1.6

13*1.55*1.65

FAQ



Q:Are you manufacture or a trading company?

A:we are manufacture ,we sincerely welcome you to visit our factory.

Q:The price is a little higher than my target. Can you offer a better price?

A:Yes, we will do our best to calculate a best price, or change quantity, replaced model, other payments, etc. We can discuss, and put forward a win-win solution, hope to establish  a long term cooperation relationship with you.

Q:May I purchase one sample, or place mix order?

A:Yes, of course, one is accepted, and you also can mix different models as you wish.
