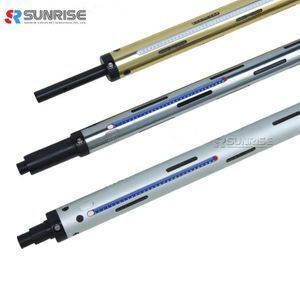

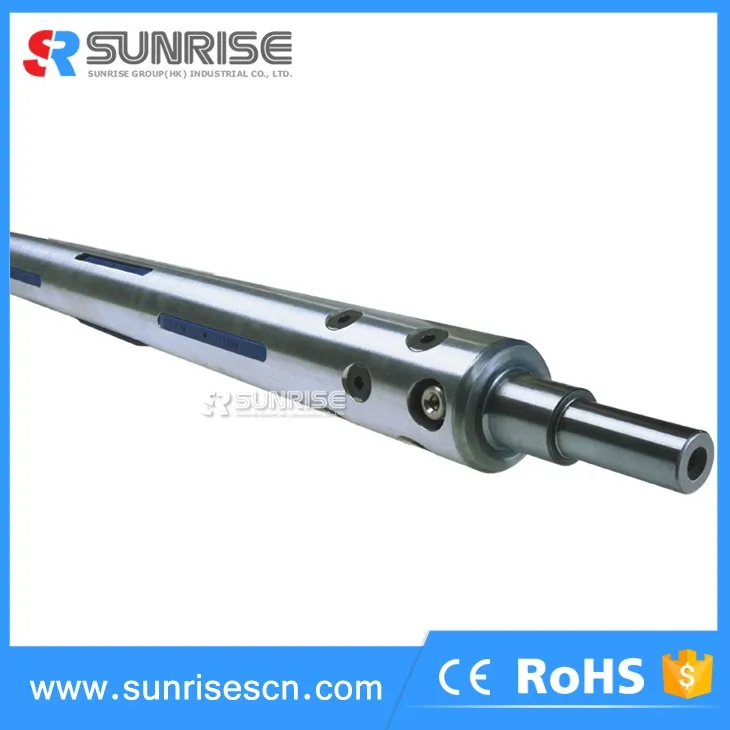

Lug type Pneumatic Air Shafts Air Expanding Shaft, Board Type Air Adapter

Supplier: Dongguan Sunrise Precision Electromechanical Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Summer Tang
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Sunrise Group;	Torque Capacity:	Custom-Making;
Manufacturing type:	Direct Manufacturer;	Structure:	Straight;
Packaging Detail:	Normal export paper tube for lug type air shaft;	Diameter:	3", 6", 8" ,12" or Customized air shaft;
Coatings:	HV300;	Supply Ability:	5000 Piece/Pieces per Month Lug type air shaft;
Lead time:	15-20 days;	Package:	Carton, wooden box or customized;
Surface treatment:	HV300;	Delivery term:	EXW, FOB SHENZHEN, CIF;
Material:	Aluminum or steel;	Port:	EXW, FOB SEHNZHEN, CIF;
Warranty:	12 mounths;	Type:	Lug type, leaf type, key type or board type air shaft;
Model Number:	Lug type air shaft;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:	Guangdong China (Mainland);	Color:	Tawny or silver;
Material:	Stainless steel or Aluminum or 45# steel;	Applicable Industries:	Garment Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Printing Shops,Construction works ;

Lug type Pneumatic Air Shafts Air Expanding Shaft, Board Type Air Adapter

What is an Air Shaft?

Sunrise air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound. An Air Shaft is designed so that, on fitting into a core, it can be readily expanded, thereby achieving a quick and firm attachment, it may also be easily deflated to facility easy withdrawal of the shaft after winding of product is complete. Their efficient design makes them ideal for mounting onto bearing housings to enable the winding or unwinding of rolls of stock material with the minimum of equipment down time. The advantage of using an Air Shaft is its ability to grip the core, without damage, whilst providing a positive interface to control the web via motors & brakes. Air Shafts are available as either Key/Lug Type (with bladder down the center) or Board/Leaf Type (bladders on the periphery of the shaft)

Key type (Lug Style) air shaft

Expands instantaneously for fast roll mounting.
Grips cores securely without core or roll damage.
Used for unwind or rewind positions.
Manual or automatic rotary union air supply.
Positive collapse for quick roll removal.
Reliable performance.
Manufactured to your specifications to suit your equipment.
Ideal for plastic, aluminum or steel cores.
Urethane surface lugs are available to enhance gripping.

Lug type air shaft Data:


Model	External diameter without air inflating ( Φ mm)	External diameter with air inflating ( Φ)mm	Apply to reel pipe with internal diameter as below( Φ)mm
2"	Φ49	Φ52~ Φ54	Φ50~51
3"	Φ74~ Φ75	Φ80~ Φ82	Φ75.5~ Φ78
4"	Φ99~100	Φ104~ Φ106	Φ~101~102
5"	Φ125	Φ130~133	Φ126~ Φ128
6"	Φ150	Φ154~156	Φ151~ Φ153
8"	Φ200	Φ206~264	Φ202~204
10"	Φ250	Φ260~ Φ264	Φ252~256
12"	Φ300	Φ308~310	Φ302~305
Lug Type Air Shaft Structure: Lug Type Air Shaft Keys allocation drawing:

Lug type air shaft weight calculation:

L2 (Shaft body)+100 length calculation	2"	3"	6~12"
600~1000mm	8~12 (kg)	15~20(kg)	For special calculating
1000~1300mm	12~14(kg)	20~25(kg)
1300~1600mm	14~16(kg)	25~30(kg)
1 600~2000mm	16~20(kg)	30~38(kg)

Lug type air shaft bearing capacity:

Material	2"	3"	6"
Aluminum alloy	/	300~500(kg)	800~1200(kg)
Steel 45#	100(klg) Max.	800~1000(kg)	1200~1800(kg)

* Printing systems: conveyors and in-feeders

*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
