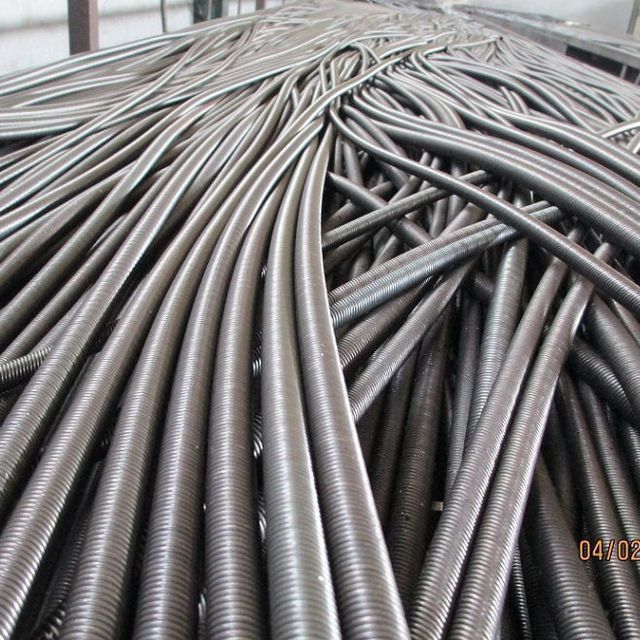

Steel flexible shaft inner core
- 1.00 >=1000 meters
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| structure: | flexible | Material: | Carbon steel |
| coating: | black oxide | port: | Liaocheng City, Shandong Province, China |
| payment terms: | letter of credit, wire transfer | Packaging Details: | In woven bags, cartons or crates |
| model: | RZ6-5 | Applicable industries: | Building material stores, manufacturing plants, mechanical repair shops, construction works |
| place of origin; place of origin: | Shandong China | Packaging Preview: | |
| brand: | JYG | Torque Capacity: | 18 |
Structure: 70#~75# high carbon steel wire
Twist direction: left and right
Scope of application: vibrating machines, automobiles, motorcycles, counters, revolution counters, power tools, gardening machinery lawn mowers, various mechanical flexible rotations.
Function: smooth, flexible, highly elastic, wear-resistant.
Diameter (mm) | Tolerance (mm) | layers | loading time | weight | |
2.0 | +0.02 | 3/5 | 0.8 | 1.8 | |
2.5 | 3/5 | 1.0 | 2.8 | ||
3.2 | 3/5 | 1.3 | 4.6 | ||
3.8 | 3/5 | 1.5 | 6.5 | ||
5.0 | +0.00 | 3/4/5 | 1.8 | 11.3 | |
6.0 | 3/4/5 | 2.4 | 16.2 | ||
6.5 | 4/5/7 | 2.9 | 18.7 | ||
8.0 |
| 4/5/6/7 | 7.5 | 28.8 | |
10 | 4/5/6/7 | 22.5 | 45.5 | ||
12 | 4/5/6/7 | 39.0 | 66.5 | ||
13 | 4/5/6/7 | 50.5 | 77.5 | ||
16 | 4/5/6/7 | 115.0 | 114 | ||
18 | 4/5/6/7 | 160 | 145 | ||
Flexible axes not listed in the chart can be customized | |||||
