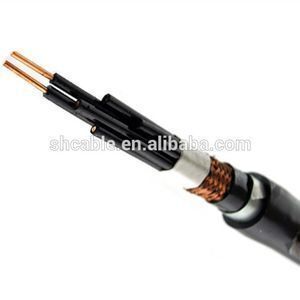

flexible control cable copper conductor braiding shielded cable

Supplier: Henan Sanheng Industrial Co., Ltd.
Region: Henan, China
Contact: Mr SANHENG CABLE
Price: $1.00 /meter
Min. Order: 1 meter

Click here to contact

Product details

conductor type:	solid;	conductor:	copper;
application:	power transmission, connection;	Port:	Qingdao port or as your request;
Application:	Telecommunication;	Rated Voltage:	450/750V;
insulation:	pvc;	Brand Name:	San Heng;
packing:	woven bag, wooden drum;	Place of Origin:	Henan China;
Insulation Material:	PVC;	Supply Ability:	1000 Kilometer/Kilometers per Week;
Colour:	Red, Black, Brown, Green and so on;	Packaging Detail:	flexible control cable copper conductor braiding shielded cable Woven bag or as your request;
Conductor Material:	Copper;	jacket:	pvc;
Operating temperature:	No more than 70 °c;	Model Number:	braiding shielded cable;
Payment Terms:	L/C,T/T;	Jacket:	PVC;
production:	customized;

flexible control cable copper conductor braiding shielded cable

Specifications

1 GB,IEC,AS,BS,VDE Standard
2 Professional QC inspection
3 On time delivery

Application

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines

as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.

Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 70 0C

2. Rated voltage: 450/750V

3. Cable lying temperature ≥0 0C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimun bending radius:

Non armored ≥ out diameter of cable 6 times

Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 times

PVC Insulated Control Cable Parameter

Type	Name	Section Area (mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors, in cable ditches or pipes
		4 6	2-14
		10	2-10

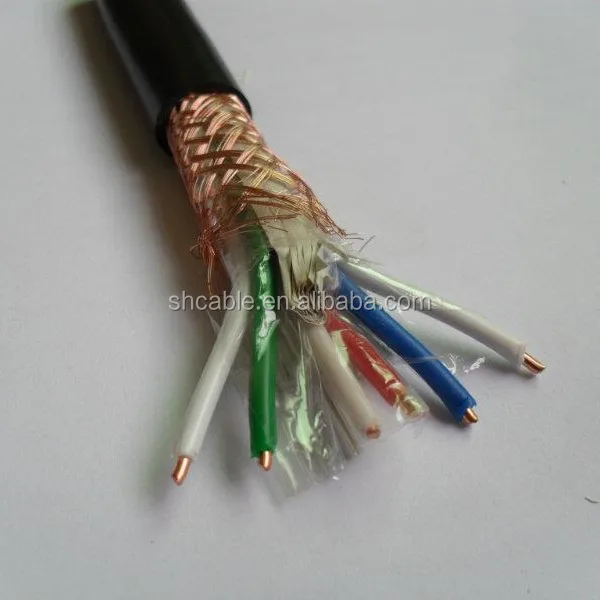

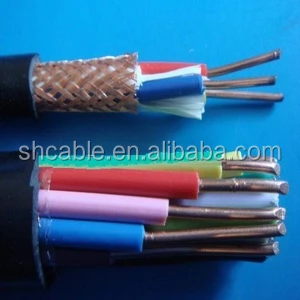

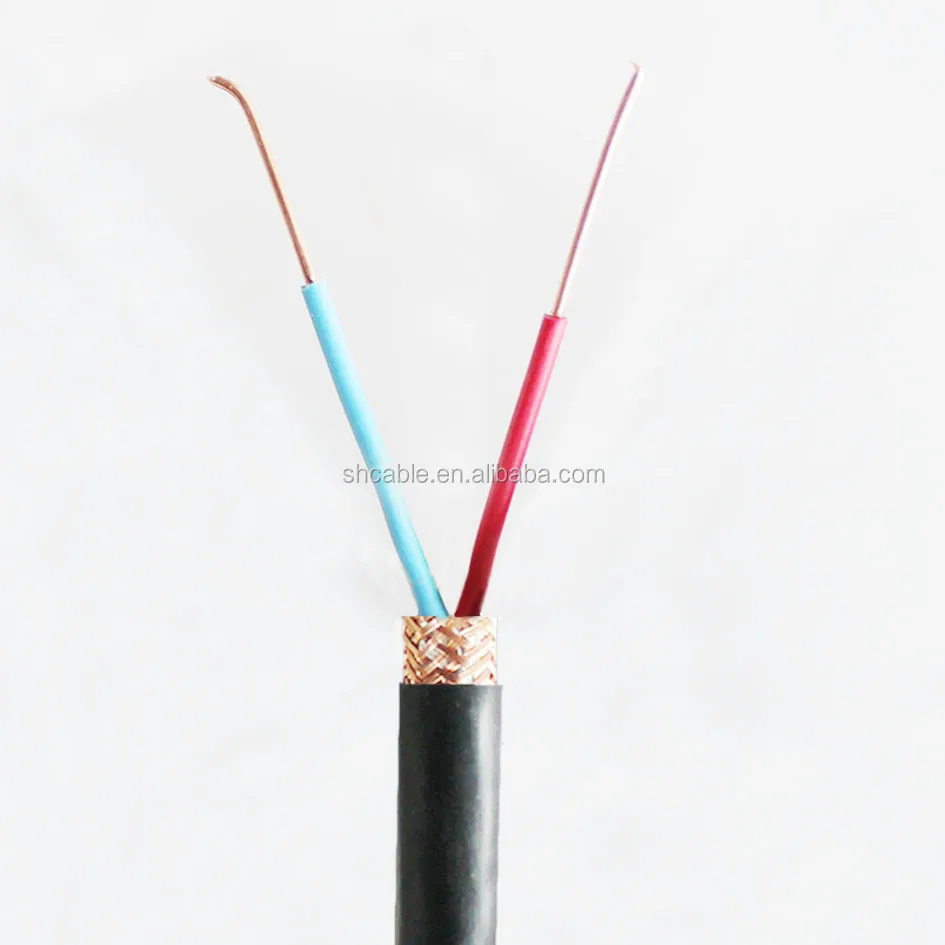

KVVP	Copper Conductor,PVC Insulated and Sheathed, Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors in cableditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed, Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors ,incable ditchesor pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed, Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors, in cable ditches,Be able to withstand stronger external mechanical force
		4 6	4-14
		10	4-14

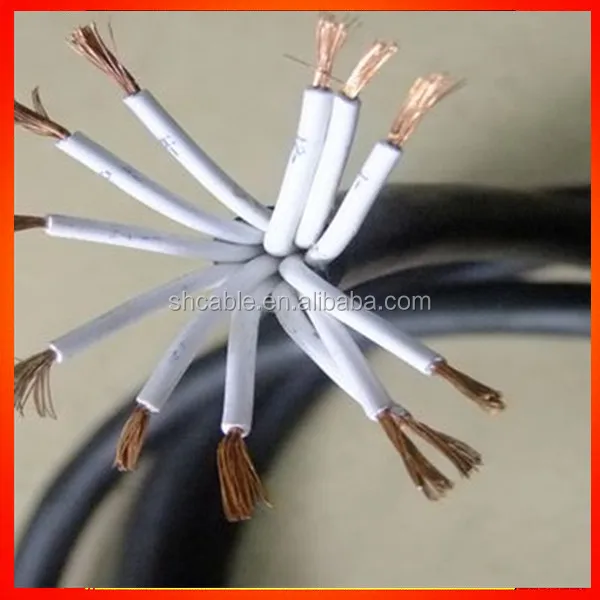

KVVR	Copper Conductor,PVC Insulated and Sheathed, Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KVVRP	Copper Conductor,PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61
