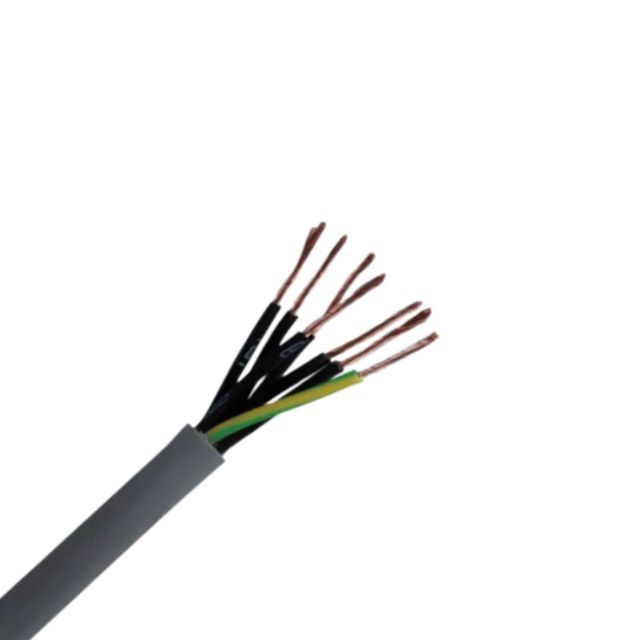

2 3 4 5 7 8 10 12 18 25-core category 5 flexible bare copper shield YY CY SY control cable
-
Supplier: Haiyan Hanker Electronic Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Lin Wang -
Price: $0.25 / 3000 - 9999 meters
$0.22 / >=10000 meters -
Min. Order: 3000 meters
| Packaging Details: | Inner: plastic bag, elevator card, double blister, slide card blister, outer: carton can be provided according to any customer requirements. | Origin: | Zhejiang, China |
| Supply capacity: | 20 km per week | Insulation Materials: | pvc |
| application: | industrial | payment terms: | L/C, T/T |
| brand: | Yilian | model: | YY control cable |
| Conductor material: | copper | port: | Shanghai/Ningbo |
| jacket: | pvc |
| application: |
YY control cables are suitable for instrumentation and control equipment, mold machinery production lines, and flexible applications that move freely without tensile loads. Suitable for dry, ambient and wet rooms. These indoor cables are not intended for exterior or underground installations.
| Product Description: |
| conductor | Class 5 Flexible Pure Copper |
| insulation | PVC, TI2 according to EN 50363-3, VDE 0207-363-3 |
| Sheath material | PVC, TM54 conforms to VDE 819-102 (TM54) |
| feature: |
| Rated voltage Uo/U | 300/500V |
| temperature class | Fixed: -40°C to +80°C |
| Flex: -5°C to +70°C | |
| Minimum bending radius | Fixed: 4×outer diameter |
| Bend: 12.5×outer diameter |

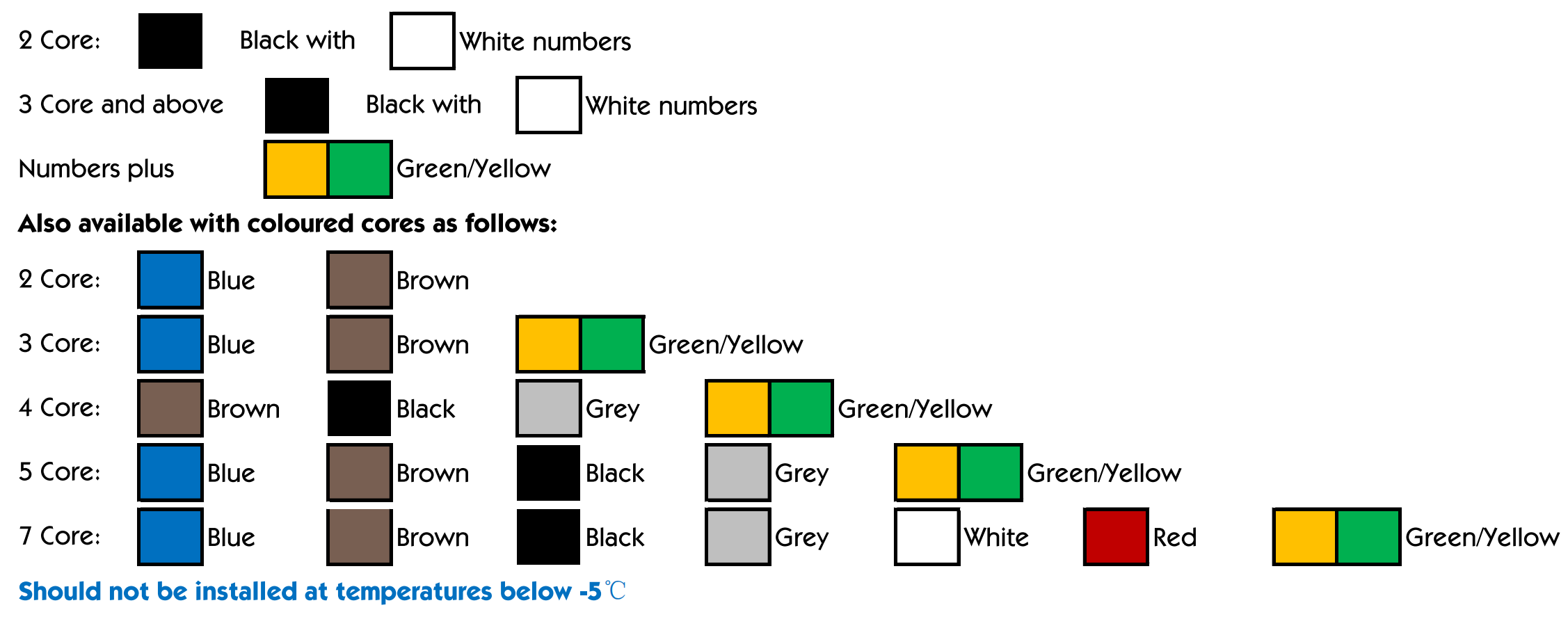

| Core ID: |

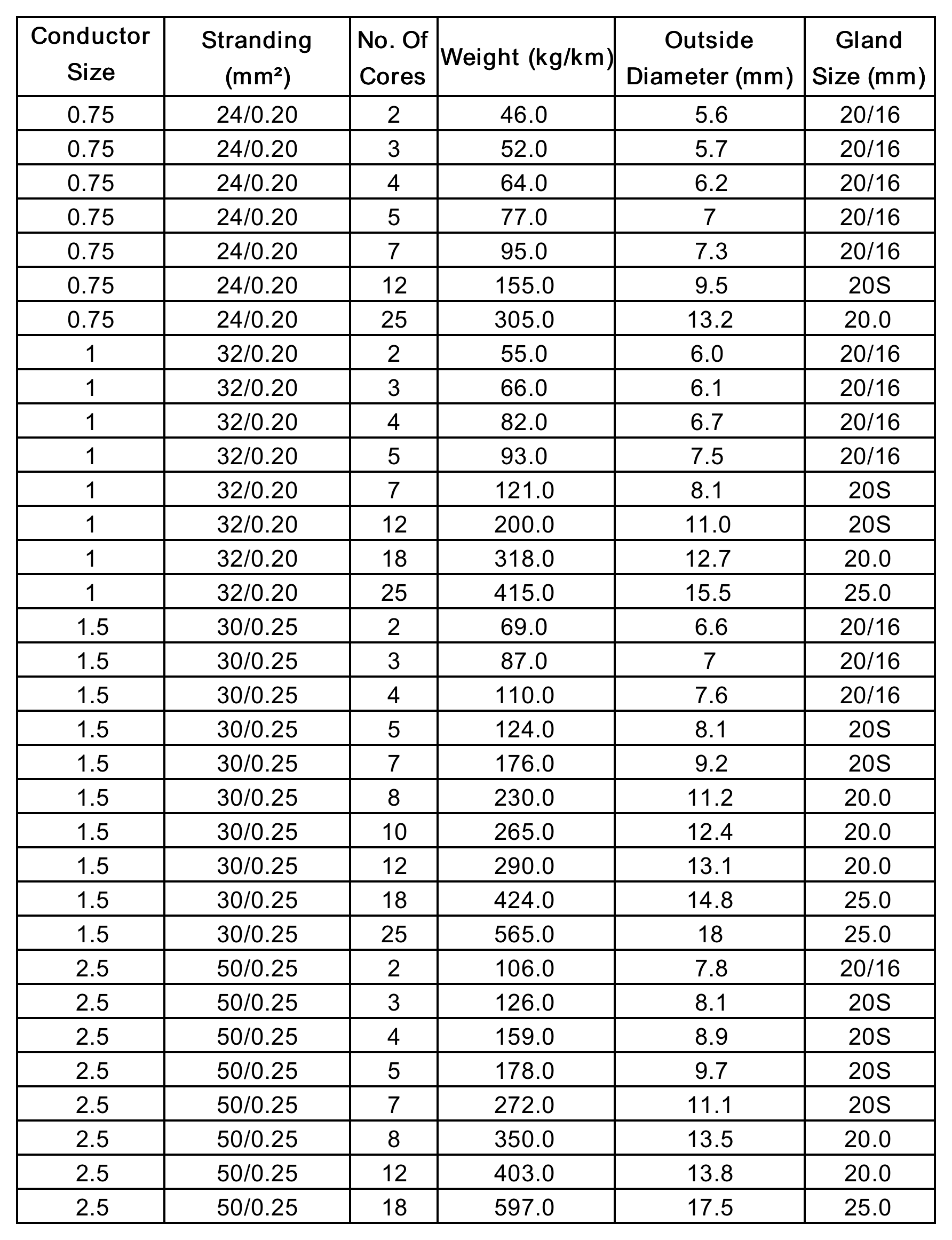

| Model list: |

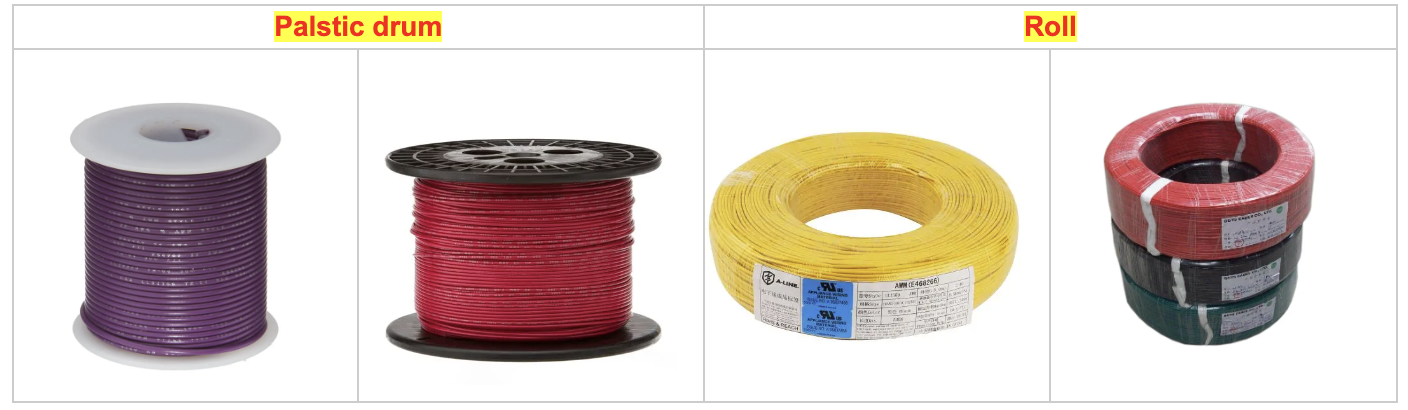

| Package: |
Roll/Plastic Bucket/Pat Bucket/Wooden Barrel.
100m/roll, roll
1000ft/305m/coil, roll or plastic drum
2000ft/610m/coil, roll or plastic drum
Outer packing: carton
Any customer's requirements can be met.
| Certification: |
| our service: |
1. Excellent quality, no cutting corners
2. Timely delivery
3. Reasonable price
4. Perfect pre-sales and after-sales service
| company information: |
Haiyan Hanke Electronics Co., Ltd. was established in February 2010; it is a high-tech enterprise full of vitality, potential and comprehensive strength. The company is located in Wanghai Industrial Park, Haiyan District, Jiaxing City, with superior geographical location and convenient transportation with neighboring Shanghai and Ningbo.
Based on technology development, the company has absorbed a group of experienced senior management personnel, marketing personnel and production technical personnel. The company pays attention to basic management, stabilizes quality, continuously improves pre-sales, sales and after-sales services, and enhances the market competitiveness of products. Our company's main products: alarm security wires, telephone wires, battery wires, audio wires, loudspeaker installation kits, microphone wires, power wires, electronic wires, accessories, etc.
Since its establishment, the company has always adhered to the belief of "honest sales, quality first, people-oriented, and benefiting customers".
We are doing everything we can to provide our customers with the best service and the best products. We promise that we will take full responsibility once our service starts.
| work process: |
| All products are strictly in accordance with the standard production and inspection process to ensure the stability of product quality |
| FAQ: |
1. Q: I need a price list for all your products, do you have a price list?
A: We do not have a price list for all our products. Because we have too many things, it is impossible
Mark all prices on the listing. Prices are always changing due to production costs. if you
Want to know any price of our products, please feel free to contact us. We will send you a quote as soon as possible!
2. Q: Can you make customized products and customized packaging?
A: Yes. We have made a lot of customized products for customers before. (mainly wiring harness)
We have made many molds for customers.
Regarding customized packaging, we can put your logo or other information on the packaging. No
question. It should be noted that this comes with some additional costs.
3. Q: Can you provide samples? Is the sample free?
A: Yes, we can provide samples. Usually, we provide 1-3pcs free samples for testing or quality checking.
But you have to pay the freight. If you need many items, or more quantity per item,
We will charge sample fee.
