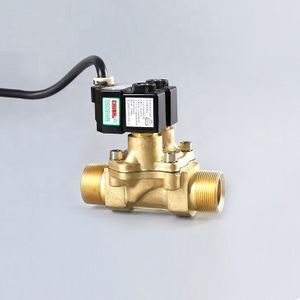

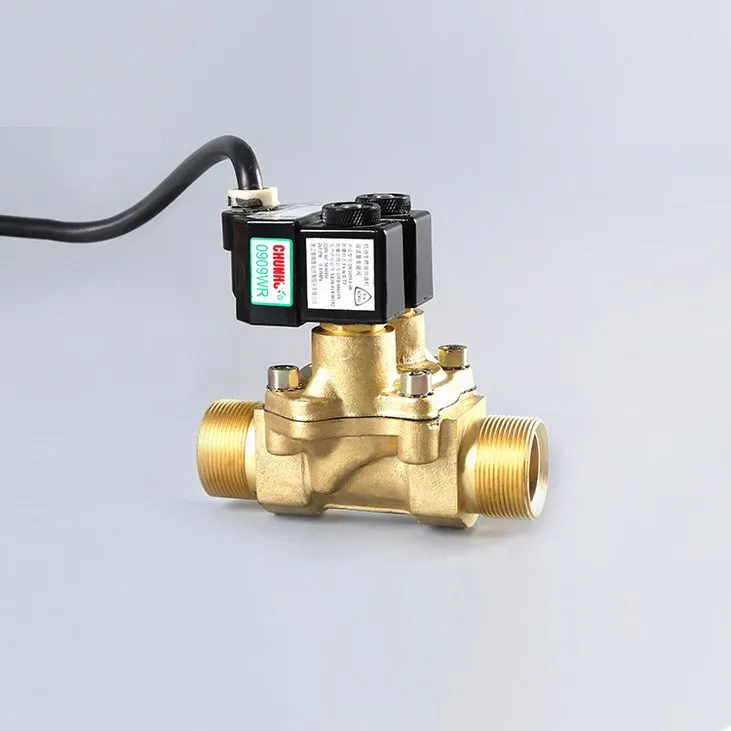

cheap solenoid valve, fuel dispenser part adjustable dual flow solenoid valve

Click here to contact

Product details

Application:	Fuel dispenser;	Material:	Brass;
Media:	Oil;	Relative humidity:	≤95%;
Place of Origin:	Zhejiang China;	Structure:	Diaphragm;
Ambient Temperature:	-40℃~+55℃;	Port Size:	Standard;
Power:	2x5.5W;	Medium Temperature:	-40℃~+55℃;
Keyword:	diesel fuel solenoid valve;	Pressure Range:	0.035~0.35MPa;
Voltage Input:	AC230V 50HZ;	Brand Name:	Chunhui;
Power:	Solenoid;	Supply Ability:	10000 Set/Sets per Month diesel fuel solenoid valve;
Port:	Shanghai / Ningbo, China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash, Escrow, PayPal;
Voltage deviation:	-10%~+15%;	Packaging Detail:	diesel fuel solenoid valve Carton box, wooden package;
Port:	Shanghai or Ningbo;	Temperature of Media:	Medium Temperature;
Ration 5L:	Preact 0.5L;	Model Number:	DV1050F-06;
Pressure:	Low Pressure;

Model:DV1050 F-10
Item	Parameter	Item	Parameter
Medium	Petrol,diesel,kerosene etc	Ration 5L	Preact 0.5L
Ambient Temperature	-40℃~+55℃	Displayed Value when main Valve Closed	≤4.85L
Medium Temperature	-40℃~+55℃	Voltage Input	AC220V 50/60HZ,AC110V 50/60HZ DC12V,DC24V etc.
Pressure Range	0.035~0.35MPa	Voltage deviation	-10%~+15%
Lead Length	1.5m(standard)	Relative humidity	≤95%
Flow DN25(1”)	>40L/min(Big Flow) 3~4.5L/min(Small Flow)	Insulating Strength	≥20MΩ
Working Mode	100%	Power	2x5.5W
Anti-Explosion Mark	Ex mb II T3	Coil Class	H
Material of valve body and valve cover	Copper or Aluminum Alloy	Life cycle	Under nomal working condition, the continuous cycle time is above 800,000
Other description
Product features	High quality, cost-effective
Market share	80% in China market
Cooperation case	Hengshan, Gilbarco,Censtar, Furen, Dresser, Jia Li Jia
Approval	domestic explosion-proof certification
Shortlisted in the suppliers of sinopec or not	Yes
Plan	stablize existing main customers, develop international market, try to be the international leading brand in the industry
Brief introductio	it is used to control the high and low flow of the computerized fuel dispenser to achieve rapid fueling with high efficiency and give a precise measuring of the fueled amount, the suitable media are including petroleum, diesel, kerosene
