CE LAUNCH TLT440W hydraulic lift 4 post wheel alignment car lift auto repair equipment

Supplier: Guangzhou Junliye Import & Export Co., Ltd.
Region: Guangdong, China
Contact: Ms Winnie Chan
Price: $2140.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 Months;	Brand Name:	LAUNCH;
Power:	2.2kw;	Equipment width:	3445mm;
Type:	Four Cylinder Hydraulic Lift;	Runway width:	500mm;
Certification:	CE;	Load capacity:	4000kg;
Supply Ability:	100 Set/Sets per Month;	Design:	Four Post;
Model Number:	TLT440W;	Port:	Guangzhou;
Place of Origin:	Guangdong China;	Raising time:	t≤60s;
Lifting height:	1900mm;	Payment Terms:	L/C,T/T;
Lowering time:	20≤t≤40;	Runway length:	2172mm;
Lifting Capacity:	4t;	Packaging Detail:	regular package: carton packing;
Equipment height:	2172mm;	Passing width:	3045mm;

Specification

CE LAUNCH TLT440W hydraulic lift 4 post wheel alignment car lift auto repair equipment

Intro.

Wheel Alignment 4 Post Lift (Rated Capacity: 4 Ton) is used for lifting of various small and medium-sized vehicles with total weight below 4.0t in garage and workshop.

Feature:

1.Designed based on the international standard, meeting the demand of the garage and workshop.
2.Driven by hydraulic cylinder in stable lifting and lowering.
3.Offering full-range mechanical safety protection by using the safety latches.
4.Connected by four steel cables; forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles.

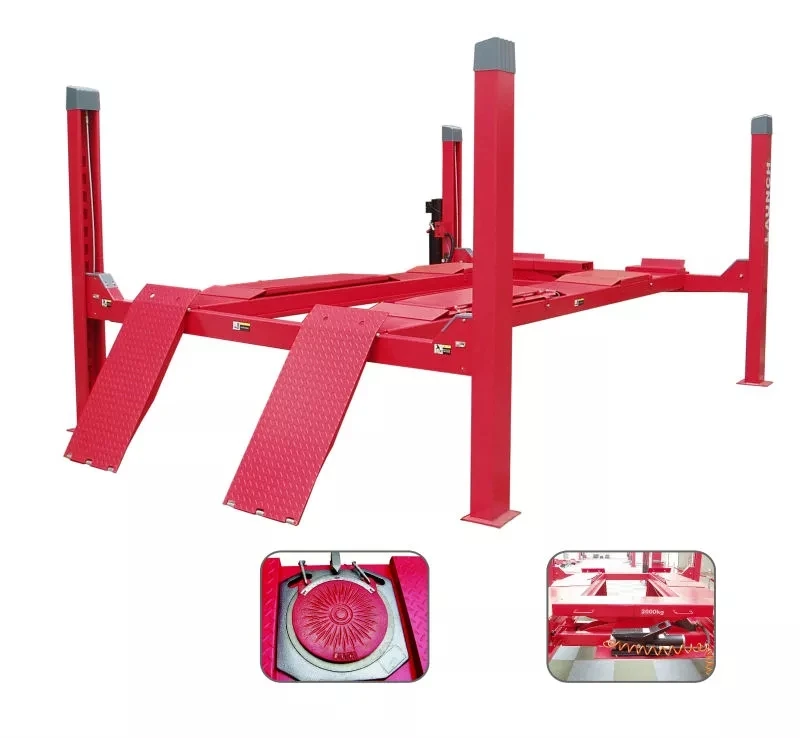

5.Equipped with rolling jack, turntable and sideslip, suitable for wheel alignment.
6.Adjustable distance between runways to accommodate different wheel track.

Specification:

*Load capacity(kg) 4000
*Lifting height(mm) 1900
*Raising time(s) t≤60
*Lowering time(s) 20≤t≤40
*Power(kw) 2.2
*Passing width(mm) 3045
*Equipment width(mm) 3445
*Equipment height(mm) 2172
*Runway length(mm) 4240
*Runway width(mm) 500
*Max wheel base(mm) 1950
*Min wheel base(mm) 950
*Lowest height(mm) 220
Rolling jack:
*Capacity(kg): 2000
Lifting height(mm) 250
Raising time(s) t≤30
Lowering time(s) 10≤t≤20
