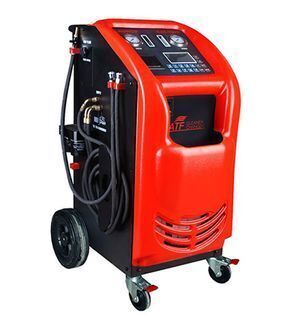

LAUNCH automatic auto transmission fluid flush machine CAT-501S

The transmission fluid inside transmission will go bad for a period of usage of automatic transmission. If the transmission fluid can not be changed completely in time, it may cause the abnormality to the transmission. General auto transmission fluid changer can not control the filling quantity of the ATF as required, the excessive or shortage filling will cause the damage to auto transmission. CAT-501S auto transmission changer can complete the flush and fluid exchange in 20 minutes for transmission, torque converter and radiator. The fluid exchange rate is nearly 100%.

LAUNCH automatic auto transmission fluid flush machine CAT-501S

Cycle cleaning with detergent
Equivalent exchange with high accuracy

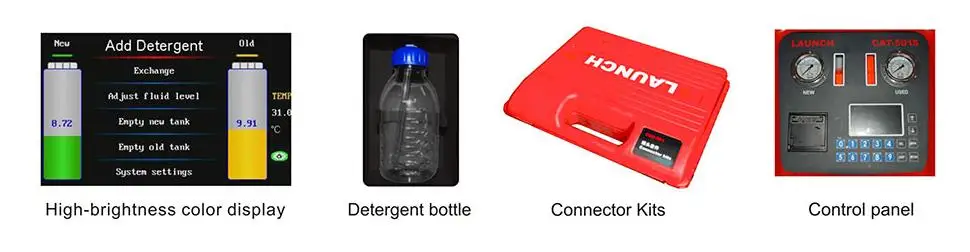

5 inch display,high-brightness color display
Fluid exchanging result customerized printing
Free full set of vehicle connectors upgrading globally
Fluid flow automatical recognization
fluid filter replacement warning.
Fluid level adjustment
Filter replacement warning
Optional VGA function
Frequently-used vehicle adding and searching list

LAUNCH automatic auto transmission fluid flush machine CAT-501S

Working temperature: 0 ° Fto120 ° F/-18 ℃to50 ℃
Humidity: <90%
Working noise: 70dB
Working pressure: 6-106kpa
Water-proof grade: IP42
Filter accuracy: 5μm
Flow speed: ≥2.2L/1min
Fluid tank capacity: 20L×2
Equivalent exchange accuracy: ±100ml
Voltage: DC12V
Power: 150W
Warranty: 1 Years
Certification: CE
Screen: LCD(High Resolution)
Printer: Yes
Database: Yes
Connector Kits: Yes Size:788*662*1156 Weight:78kg

LAUNCH automatic auto transmission fluid flush machine CAT-501S

No. PartCode PartName
1  X103260049  CAT-302 Adaptor Kit
2  103260005  Fluid filter,YO-104
3  107010678  CAT-401 User Manual(En&Chinese)

LAUNCH automatic auto transmission fluid flush machine CAT-501S
