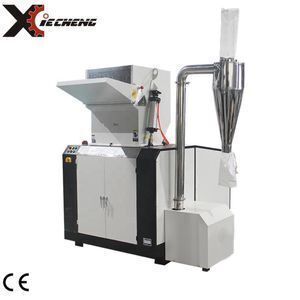

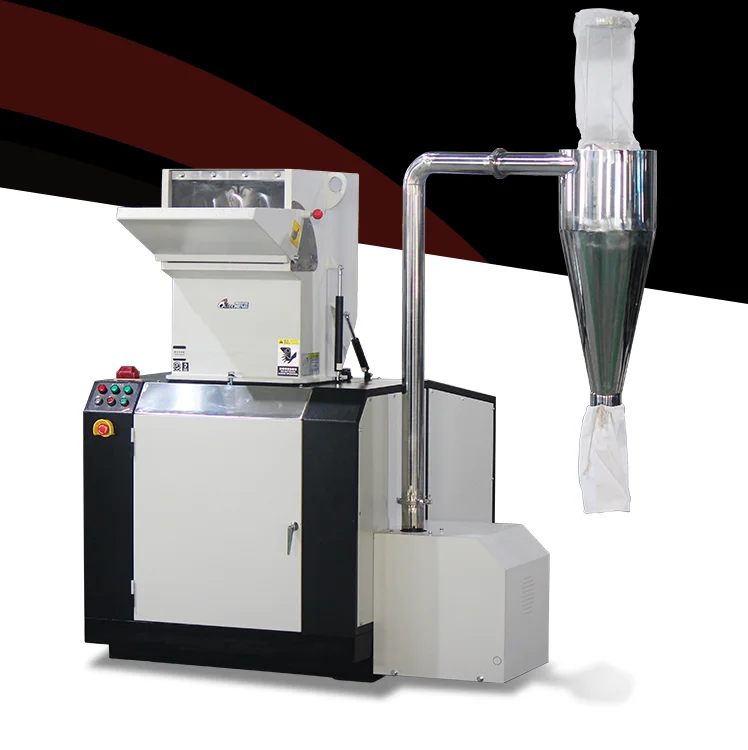

recycled plastic granules/abs plastic granules/recycled rubber granule
-
Supplier: Jiangmen Xiecheng Machinery Co.,Ltd. -
Region: Guangdong, China -
Contact: Ms Amy Zhau -
Price: $11800.00 /set -
Min. Order: 1 set
| Power: | 30HP; | Place of Origin: | Guangdong China; |
| Capacity: | 500-800kg/h; | Warranty: | 1 Year; |
| Lifetime: | more than 5 years; | Voltage: | Customized; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Packaging Detail: | export wooden case package; |
| Inner fitting: | Double layer hopper with deadening; | Supply Ability: | 100 Set/Sets per Month; |
| Application: | Waste Plastic Recycling; | stationary blade: | 4 pcs; |
| Screw Design: | Single; | Type: | Recycling Granulator; |
| Crushing chamber: | 660*350 mm; | Condition: | New; |
| rotary blade: | 27 pcs; | Brand Name: | XIECHENG; |
| Applicable Industries: | Manufacturing Plant; | Certification: | CE; |
| Power: | 22kw; | Material: | PP/PE; |
| Port: | Jiangmen/Shenzhen/Guangzhou; | Blade type: | Claw blade; |
| After-sales Service Provided: | Online support,Video technical support; | suit for: | plastic/soft pipe; |
| Weight: | 2280kg; | Dimension(L*W*H): | 1850*1400*2170mm; |
| mesh size: | 12 mm; |
recycled plastic granules/abs plastic granules/recycled rubber granule
| Model | XC-GY15HP-SP | XC-GY20HP-SP | XC-GY30HP-SP | XC-GY50HP-SP | |
grinding chamber (mm) | 420*280 | 480*330 | 660*350 | 720*500 | |
| grinding capacity (kg/h) | 300-500 | 350-550 | 500-800 | 800-1000 | |
| stationary cutter | 2 | 2 | 4 | 4 | |
| rotary cutter | 21 | 24 | 27 | 27 | |
| mesh size (mm) | Φ10 | Φ10 | Φ12 | Φ12 | |
| power | KW | 11 | 15 | 22 | 37 |
| HP | 15 | 20 | 30 | 50 | |
approx. dimension (L×W ×H mm) | 1540*1020*1800 | 1600*1140*1960 | 1850*1400*2170 | 2250*1570*2880 | |
| approx. NW(kg) | 1180 | 1400 | 2280 | 3630 | |
FEATURE
Soundproof type crusher be able to work with all kind plastic material ,
to reduce the noise
and keep the material pure to prevent pollution.

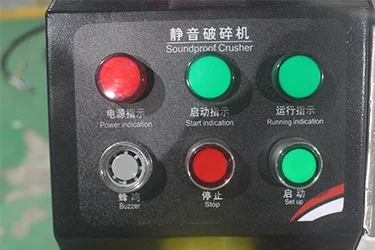

 | Control Panel All push-button are in one panel with English instruction , Easy and convenient to control |

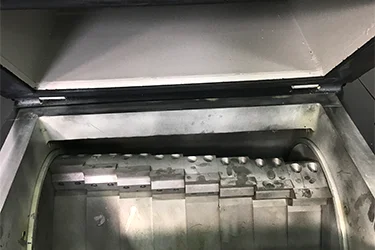

Crushing Saddle and Blade Axis and blade carrier made with #45 Carbon Steel. as S45C steel in JIS system, granular are uniform and cut evenly , less dust, blade hardness reach 57-59 degree |  |

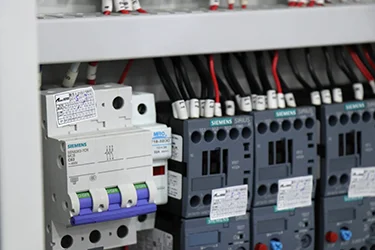

 | Electrical Components Adopted famous brand, ensure the XIECHENG’S Products are working with stable state |

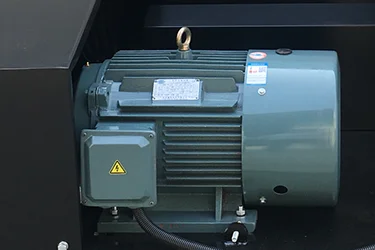

Motor Jiangsheng brand ,famous brand with stable performance, passed CQC ,CCC and CE certify |  |

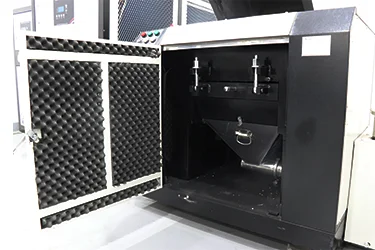

 | Soundproof Layer To make sure the noise is lower |

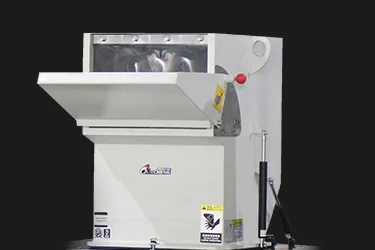

Hopper Chamber Four sides double layer hopper , decrease the noise ,inner is stainless steel, avoid paint will be fall off when crushing material and granular is rotating with high speed |  |
for more information,pleases click to contact
| CONTACT US |

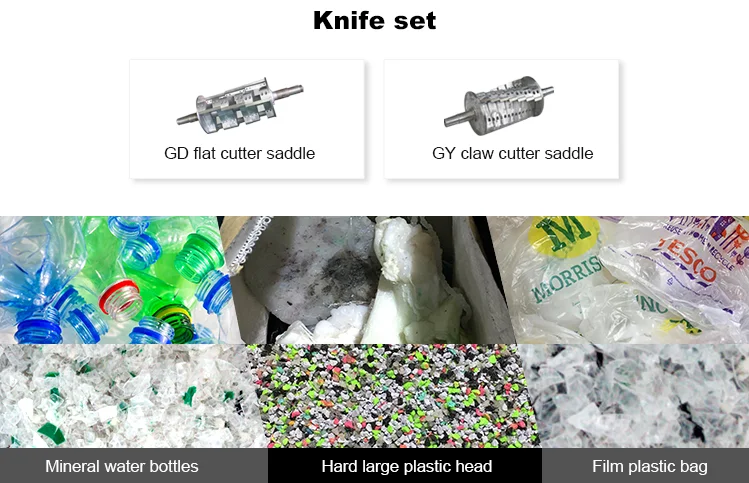

SCENES TO BE USED
Suitable for recycling of plastic products.
GY series is special for hard plastic,
GD series is special for larger size soft material

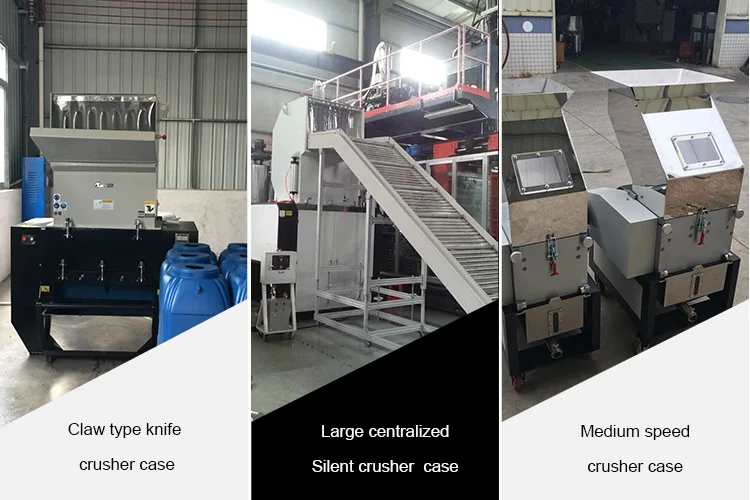

CUSTOMER CASE
User-centered service and detailed control
can provide customers
with cost-effective and reasonable solutions.
CUSTOMER REVIEW
Create more subsidiary value for customers
and continuously exceed customer expectations.

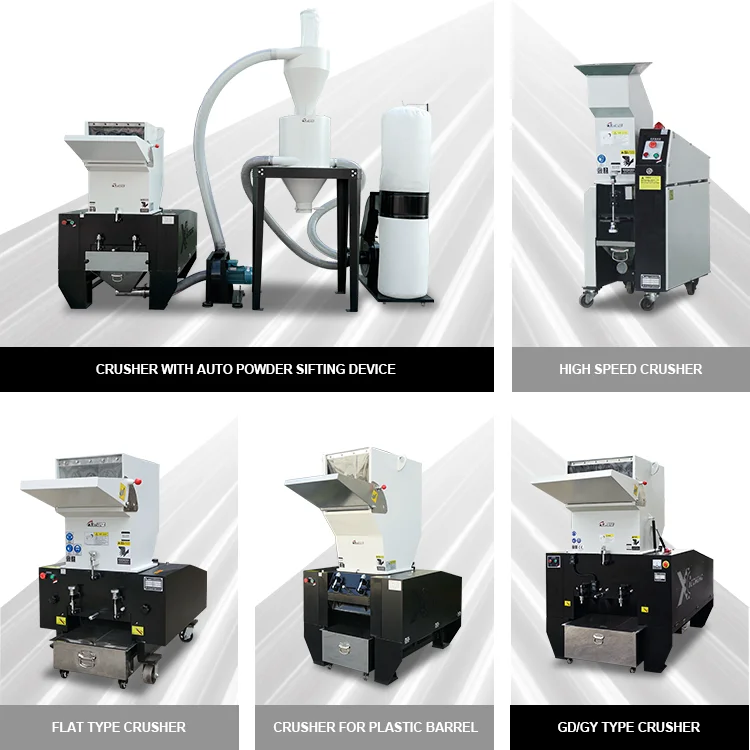

SAME TYPE OF PRODUCT
Create more subsidiary value for customers
and continuously exceed customer expectations.

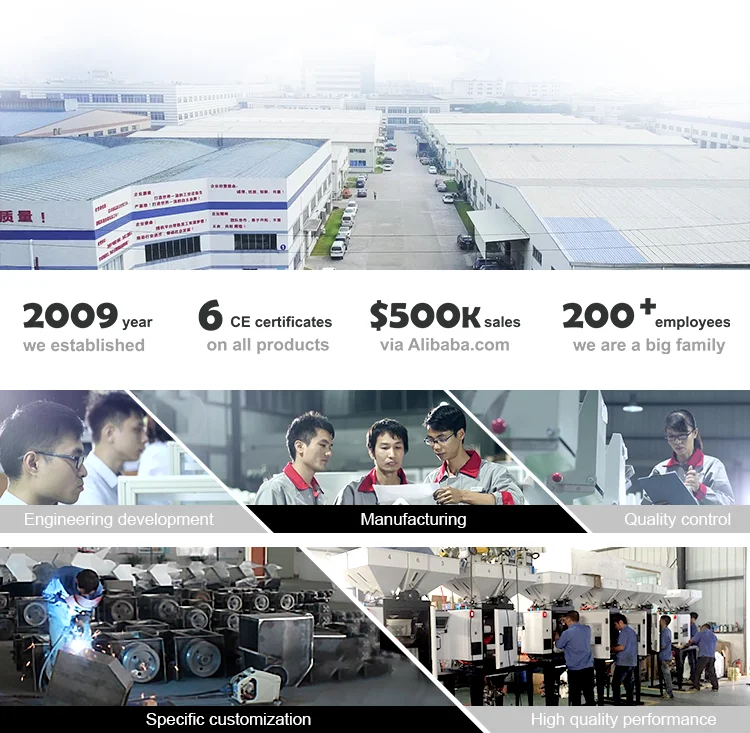

ABOUT US
Tailored to your specific needs
User-centric service and detailed control
Provide cost-effective and reasonable solutions
Good maintenance service
FAQ
Frequently asked questions when buying products
Q: How many years have your factory been established?
A:Our factory established from 2009,
but most of our engineers are working in this industry over 15 year.
Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.
Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts),
our company provide these parts for free.
Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,
Western Union or Trade Assurance order recommended.
