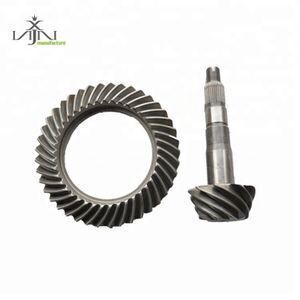

Pickup Rear Ring Pinion Gears with 10X43 ratio
- 35.00 set
| Port: | Dalian Port/Shanghai Port/Tianjin Port/As Request; | Shape: | Pinion; |
| Delivery Detail: | Shipped in1-2 days with stock,3-20 days without stock after payment; | Quality: | OEM&aftersale; |
| MOQ: | 1 set; | Length of th pinion: | 215mm; |
| Color: | White/Black; | Processing: | Forging; |
| Material: | 20CrMnTiH3; | Outer Packing Size: | 43*31*18CM; |
| Suitable Model: | Hilux Hiace Pickup; | Standard or Nonstandard: | Nonstandard; |
| Brand Name: | Xinjin; | Supply Ability: | 100000 Set/Sets per Year; |
| Place of Origin: | Liaoning China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/ Union Pay/Credit card; |
| Tooth Profile: | Bevel Gear; | Material: | 20CrMnTiH3; |
| Crown outer diameter: | 204mm; | Pressure Angle: | 22.5; |
| Packaging Detail: | Differential gears are protected by cytosepiment.covered by plastic film,One set of gears in one carton.; |

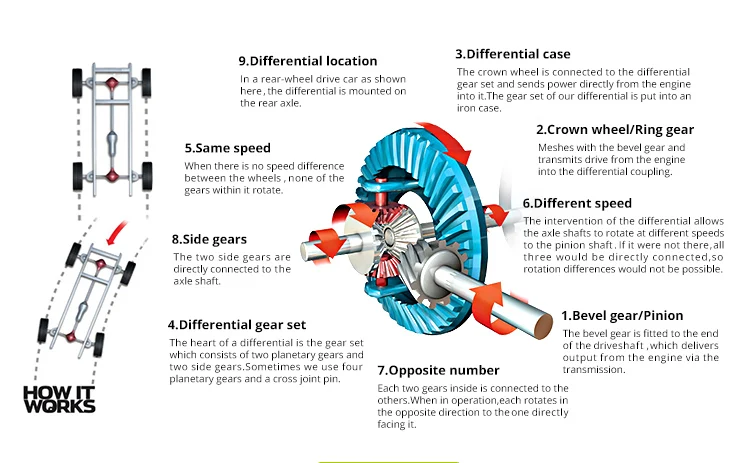

| Compose | Differential case,Differential flange part,Crown and pinion,Small differential,Bearings |
| Car make | Hiace Hilux |
| Speed ratio | 8*39 9*41 10*41 10*43 11*43 12*43 |
| Pinion length | 215mm |
| Ring gear inner diameter | 126mm |
| Ring gear outer diameter | 204mm |
| Material(housing) | Nodular cast iron |
| Material(gears) | 20CrMnTiH3 |
| Axle spline teeth | 30T |

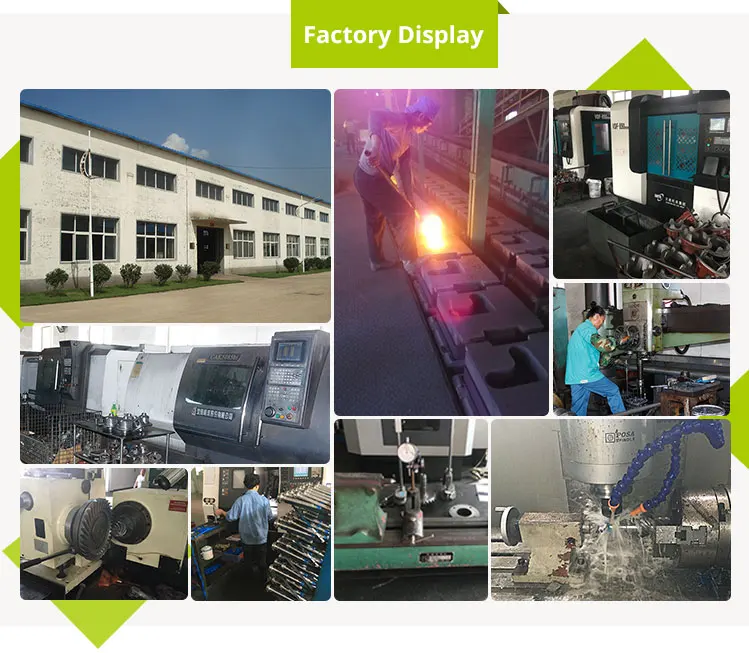

Shenyang Xin Jin Auto Manufacturing Co., Ltd located in the traditional industrial city-Shenyang, obtaining a competitive advantage in location and technology cluster. With 20 years professional manufacturing experience, reliable credit and high quality products.
Products are mainly exported to the United States, the Middles East, South Africa, Dubai, Argentina, Egypt, Malaysia, Fiji and other countries around the world. Our company exported differentials more than 100,000 sets and bulks were broke through 20,000 sets.
In terms of quality ,the raw material of the products are all purchased in high price and quality are also competitive,and ensure the quality of products in consistent.On the after-sale service ,we guarantee for the 12 months from the date on the board.Products will be provided technical support anytime and anywhere.as long as you contact with us at anytime.
With the principle of being both sincere and devoted in customer and active in innovation, Shenyang Xin Jin Auto Manufacturing Co., Ltd cordially invite you to develop a long term and mutual beneficial relation together.
