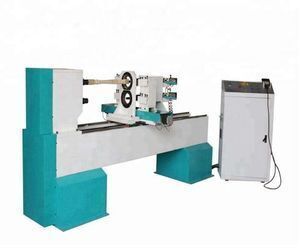

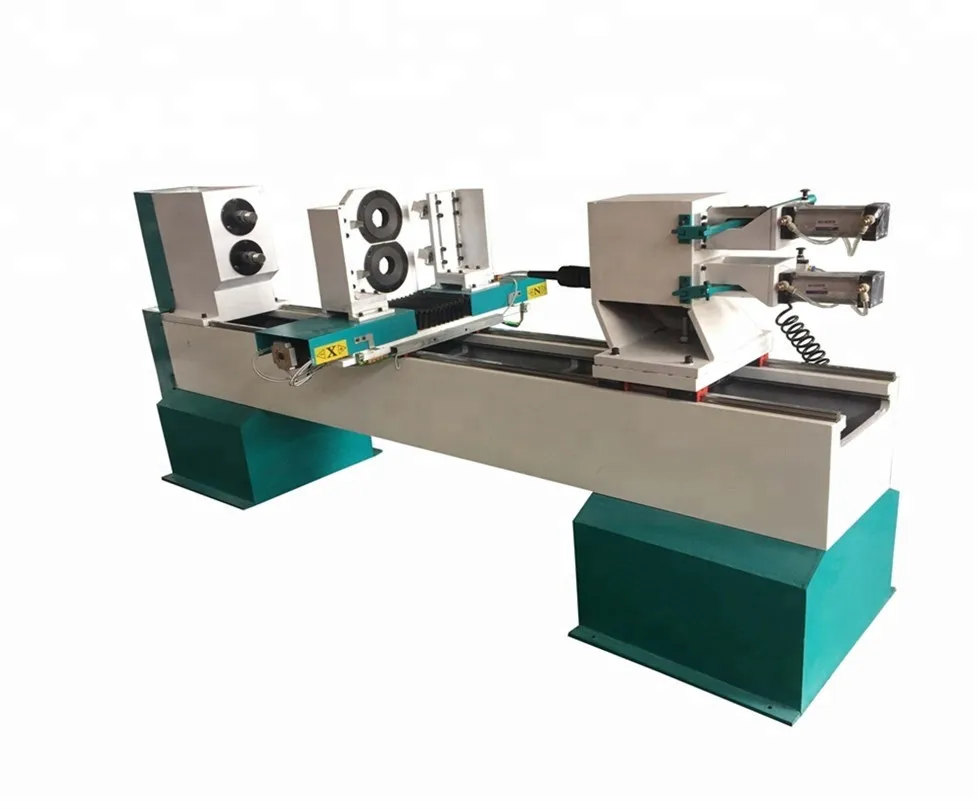

NC-1530 3d lathe milling drilling machine for wood

3d lathe milling drilling machine for wood

Product parameters

Max.working dimensins:   20mm—300mm Note: it does not represent the machining diameter, but the machined diameter depends on many factors such as material and finished product shape.

Max.length :                      100mm—1500mm(Customizable 2m and 2.5m)

Max.spindle :                    0-3000r/min

Air pressure :                     0.6-0.8Mpa

Incoming total power :      4.0KW

Use power supply Three-phase:     380V AC power supply

Bed net weight:                 1600kg

Packing dimensions of wooden cases:    3100mm*1280*1750mm (Wooden box packing)

Gross packing weight of wooden box :   1800kg

Use frequency :  50HZ

Product Features:

1. Whole Cue baseball bat stair railinge making lathe CNC 1530 cnc wood turning lathe is welded

with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe

body is stabilized and will not be deformed forever.

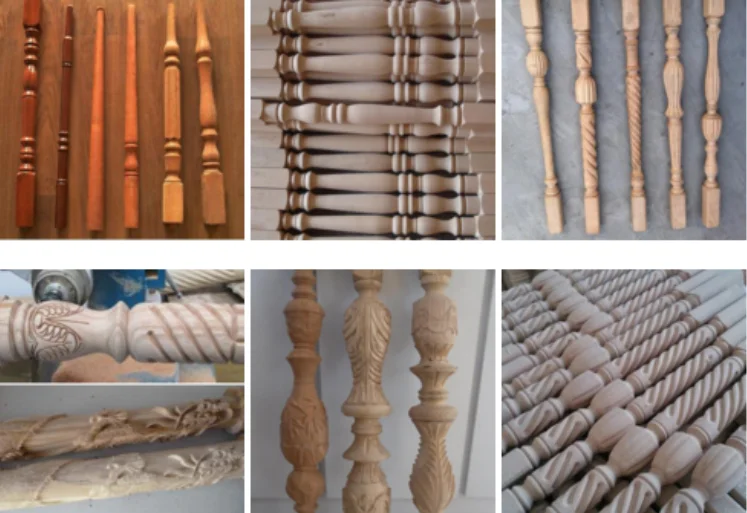

2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing

(banisters), etc. wood cnc turning lathe

3. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation.

Our engraver can completely work off-line and do not take any computer resources.

4. Adopt Germany ball screw and Taiwan PM I helical square guide rail with high transmitting precision

and longevity. Bid module helical/diagonal rack.

5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.
