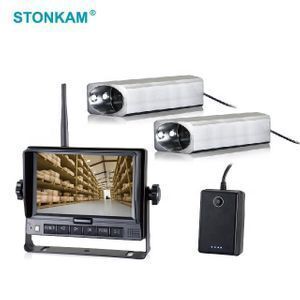

5 inches 2.4 GHz digital wireless rear view forklift camera system

  • Supplier: Stonkam Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Zoe Zhang
  • Price: $50.00 /piece
  • Min. Order: 1 piece
Product details
Car Make:all kinds;Voltage:DC 12V;
WEBSITE:www.stonkam.com;Frame Rate:PAL:25f/s NTSC:30f/s;
Place of Origin:Guangdong, China;Type:Digital Camera;
Power:standard;Payment Terms:L/C,T/T,Western Union;
Technology:Infrared;Warranty:15 Months;
Model Number:DW-714S,DW-687,DW-671,DW-673;Place of Origin:Guangdong China (Mainland);
TV System:PAL/NTSC;Power Supply:DC10~32V;
Type:wireless forklift camera system;AGC:Auto;
Brand Name:STONKAM;
5 inches 2.4 GHz digital wireless rear view forklift camera system

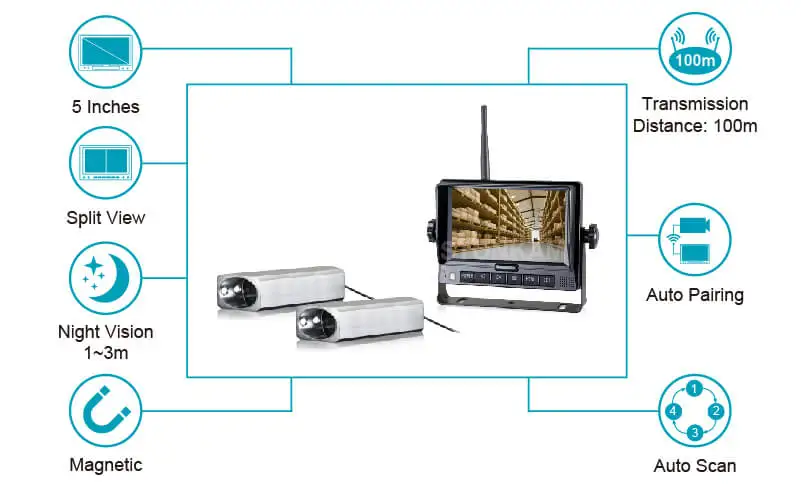

Features of 5 inches 2.4GHz Digital Wireless Forklift Monitor (DW-714S):

  • Dual screen mode,automatic cycle switching mode, single screen mode available,users can have any combinations of channels in dual view display
  • Support 4 channel single view trigger display and 1 channel split view trigger display
  • Auto dim function available ,automatic backlighting when in dim light longer than 5s
  • Auto scanning, each channel can be individually set to scan on or off, scan time 5-45S adjustable
  • Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing

Features of Wireless Forklift camera (DW-687):

  • Wireless image transmission distance: 100M
  • Waterproof: IP69K approved
  • Night vision distance: 1~2 m
  • With magnet housing, free installation








Specification of 5 inches 2.4GHz Digital Wireless Quad View Monitor (DW-714S):



LCD size      5"
Resolution800X3(RGB)X480
Brightness350 cd/m2
Viewing AngleU 50 / D: 70, R/L: 70
Aspect Ratio16:9
Channel4CH
Operating Frequency2400 - 2483.5 MHz
Transmitting Distance120M
Decompression FormMPEG4
Recieving Sensitivity-89 dBm
Modulation2.4G FSK/GFSK
Time Delay120ms
System FormatPAL / NTSC
Power SupplyDC 10-32V
Power Consumption  Max. 3W
Loudspeaker1W/8Ω
Operating Temperature-20~+70℃, RH 90%
Storage Temperature-30~-+80℃, RH 90%



Specification of Wireless Forklift camera (DW-687):

Image DeviceCMOS
TV SystemPAL/NTSC
Effective Pixels756×504 pixels
Sensing Area4.80mm×3.73mm
Scanning System2:1 Interlace
Sync. SystemInternal
Horizontal Sync Frequency15.625 kHz/15.734 kHz
Vertical Sync Frequency50Hz/60Hz
Video Output1.0Vp-p, 75Ohm
Gamma Consumption0.45
AGCAuto
S/N RatioBetter than 46.5dB
White BalanceAuto
Electronic ShutterAuto:1/60(NTSC)/1/50(PAL)~1/100,000 Seconds
BLCAuto
Operation Frequency2400-2483.5MHZ
Line of Sight Range100M
Receiving Sensitivity-89dBm
Video CodeMPEG4
Frame RatePAL:25f/s NTSC:30f/s
Spread SpectrumFHSS
Delay120ms
RF Bit Rate4Mbps
Operating Temperature–20℃ ~ 70℃, RH95%MAX
Storage Temperature–30℃ ~ 80℃, RH95%MAX
Minimum Illumination0Lux
Power SupplyDC10~32V
Lensf=6.0mm
Viewing Angle45°

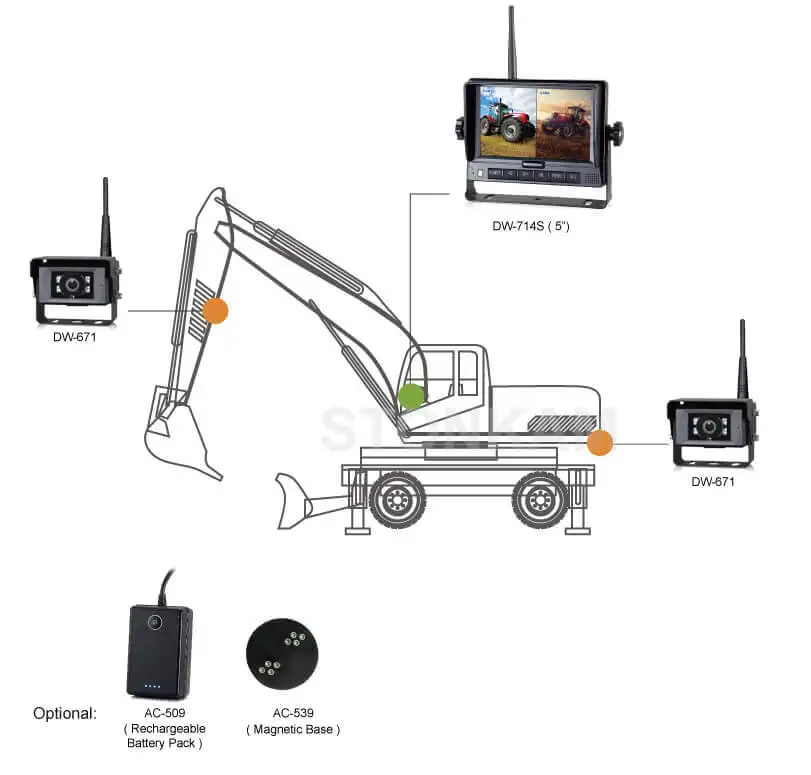

Application of 5 inches 2.4 GHz digital wireless rear view camera system:
