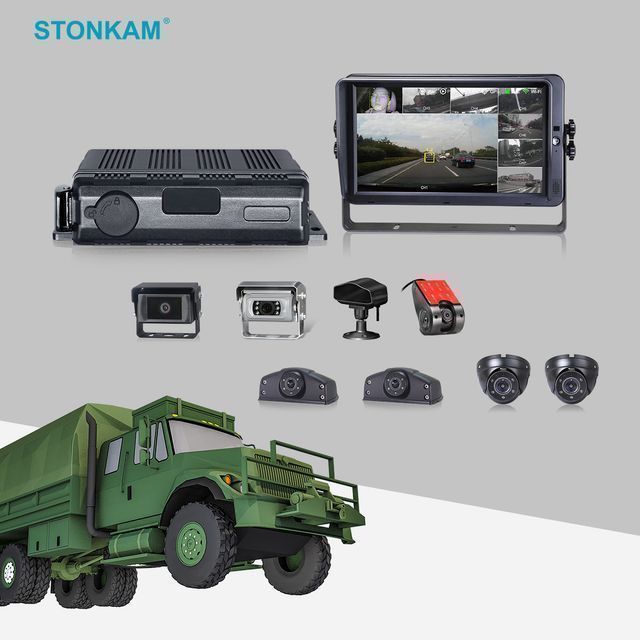

STONKAM mdvr 8ch 4g/gps/wifi truck/taxi/bus vehicle tracking system 360 panorama ADAS BSD optional

Supplier: Stonkam Co., Ltd.
Region: Guangdong, China
Contact: Ms Zoe Zhang
Price: $80.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Global Positioning System:	Tracking and Speed Recording	Warranty:	15 months
Model:	common	Video input:	Maximum 8 channels 1080P analog HD
year:	common	compression:	H.264/H.265
Operating temperature and humidity:	-20~70℃<80%	software:	Windows client
Driver Assistance Systems:	Elective	Packaging Details:	gift box
GPS Tracking:	support	Supply capacity:	50000 pieces per month
payment terms:	L/C, Western Union, T/T	Car equipment:	common
Voltage:	12V	Electronic clock:	Built-in clock, calendar
port:	Guangzhou	Audio input:	8 channels
Power consumption (W):	60W	Driver status monitoring:	Elective

Product Description

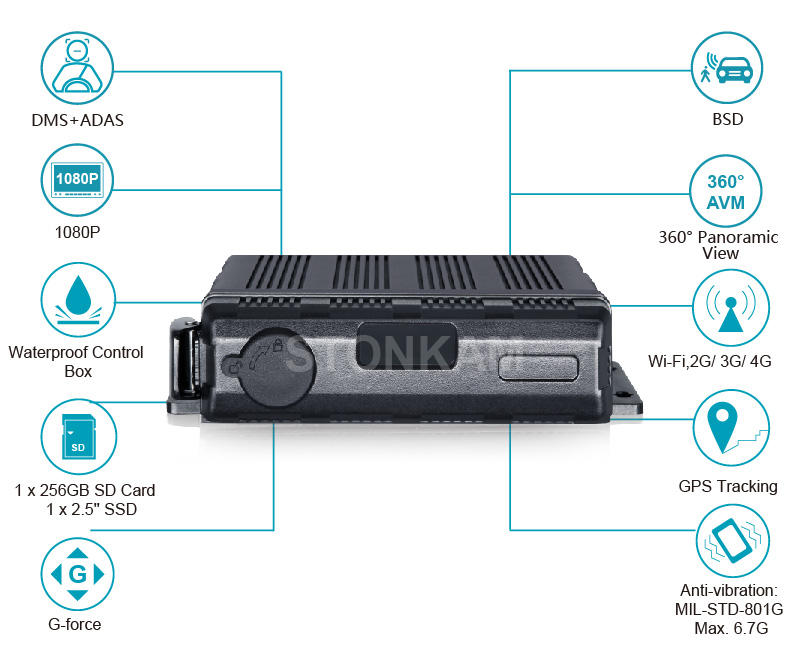

STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking systemAdopt H.264/H.265 compression technology, support real-time remote monitoring, and more efficient fleet management. Thanks to its multi-core processor and neural network inference engine, the smart MDVR is able to integrate ADAS, DMS, BSD, AVS algorithms on one device and provide various systems with different driving assistance functions. It can be combined with ADAS and DMS functions, blind spot monitoring function or 360-degree surround view function, allowing drivers to have a safer driving without spending extra time and money on separate installations.

* Integrating DMS and ADAS algorithms, STONKAM mdvr 8ch 4g / gps / wifi Truck/Taxi/Bus vehicle tracking system has functions of identification, warning, recording and remote reporting to improve driving safety in fleet management.
*Integrated with BSD algorithm, STONKAM 8-channel vehicle tracking system car driving recorder can detect pedestrians in front, side and rear of the vehicle in real time to avoid accidents caused by blind spots.
*Integrated 360° surround view algorithm, STONKAM 8-channel vehicle tracking system car dvr can realize real 360° wide-angle camera bird's eye view monitoring to ensure driving safety.
* GPS tracking adopts adaptive sparse algorithm and supports offline upload.
* Various trigger recording methods, with 15-second pre-recording function: motion trigger, G-sensor trigger, overspeed trigger, 6-channel custom alarm input trigger, emergency button trigger recording, DMS/ADAS/BSD warning trigger.
* Support 3G/4G/ WIFI/ GPS tracking; real-time remote monitoring can be realized on iOS, Android, Windows clients
* With WiFi station and AP mode; AP mode can support mobile phone directly connected to the device, which is convenient for preview and configuration on the mobile phone through WebUI.
* Automatically upload data for remote intelligent data analysis and management, including data: alarm video, alarm information, log information, GPS track, real-time video and images
* Support HD touch screen control and infrared remote control. Flat interactive interface, easy to operate.
* IP69K waterproof and dustproof control box, suitable for various environments.
* Support H.264/H.265 Encode, improve storage, and make better use of wireless network traffic.

system	operating system		Linux
		Operation interface		Graphical menu operation interface (OSD)
		video rights		Admin and User Settings
video	video input		Maximum 8 channels 1080P analog HD
		HD output		Support CVBS, VGA and AHD output
		video display		1, 2, 3, 4, 8, 9CH
		compression		H.264/H.265
sound	audio input		8 channels
		Audio output		1 channel
		record format		Synchronized video and audio recording
		audio compression		ADPCM
Digital Processing and Storage	video resolution		41080P(19201080)
		video bitrate		128kbps~6Mbps/channel
		storage		56~2700MB/(channel*hour)
		audio bitrate		32kbps

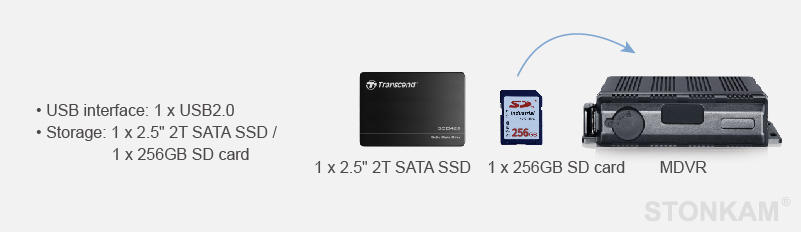

		storage		SD card*4, up to 128GB
		playback resolution		4*1080P (codec at the same time)
		video quality		Level 1~8 adjustable
alarm	Alarm input		8 channels
		Alarm Output		2 channels, 1 buzzer
		motion detection		Adjustable high/low sensitivity
Communication Interface	infrared		1 channel
		RS232		1 channel
		RS485		2 channels
		RJ45		1 channel
		USB2.0		1-way file backup and firmware upgrade
wireless	2G/3G/4G		Elective
		wireless online		standard
		WIFI hotspot/AP		usable
Global Positioning System	Tracking and Speed Recording
Gravity Sensor/Gyroscope	Gravity sensor
software	Windows client		usable
		iOS client		usable
		web portal		Support windows, android, mac, ios, etc.
strength	enter		10~32V
		output		12V@3.5A
		Maximum power consumption		60W
		Standby power consumption		50 mW
Electrical Specifications	Operating Temperature and Humidity		-20～70℃<80%
		Electronic clock		Built-in clock, calendar
		Super capacitor		usable

you always wondered...
How to get a complete fleet management solution? How to quickly know whether the driver is driving illegally? How to quickly provide evidence for traffic accidents, theft, extortion, etc.? ...

All your troubles can be solvedSTONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking systemWith a variety of optional features!

Solution 1: MDVR system combined with ADAS&DMS functions

Designed for various vehicle management, it is widely used in buses, passenger cars, construction machinery, taxis, trucks, fire trucks, ambulances, passenger vehicles, etc.STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking systemAdopt ADAS&DMS technology to provide better performance. DMS can detect and warn drivers of undesirable behaviors such as fatigue, distraction, talking on the phone, yawning, driverless driving, not wearing a seat belt or wearing a mask, thereby contributing to safe driving and easy fleet management.

ADAS functions include Forward Collision Warning (FCW), Lane Departure Warning (LDW), Pedestrian Detection (PD), Front Car Start Reminder, Speed Sign Recognition (SSR) and Speeding Warning, which can warn drivers of potential collision risks and make driving safer.

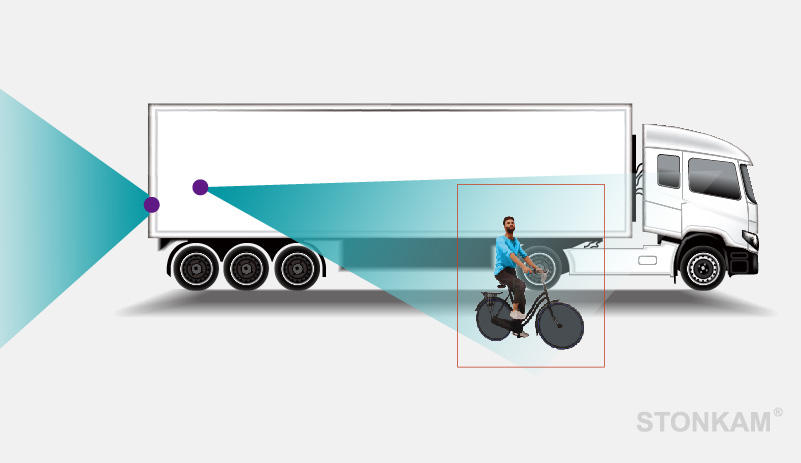

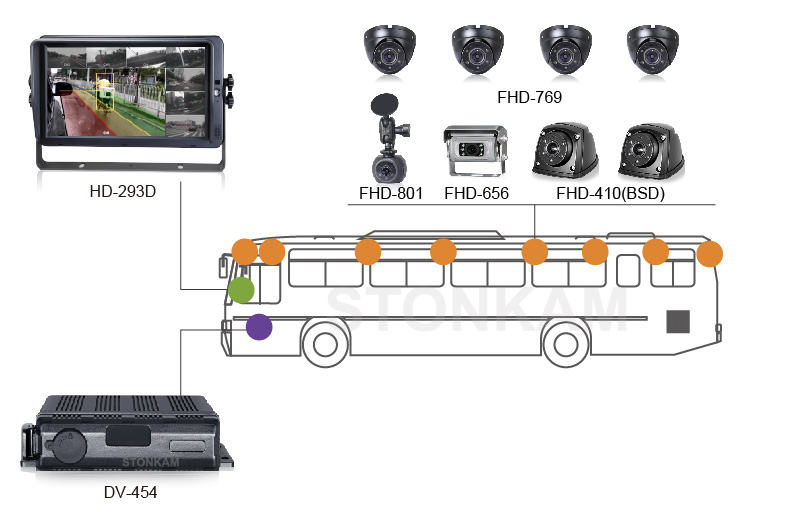

Solution 2: MDVR system combined with BSD function

Using the BSD algorithm,STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking systemIt can detect pedestrians in front, side and rear of the vehicle in real time to avoid accidents caused by blind spots. Therefore, such driving aids are essential for large vehicles such as trucks, buses, and construction machinery. Through PC CMS client or mobile phone APP, you can clearly query the current location and historical driving track map/Baidu map of the vehicle on OS map/Google.

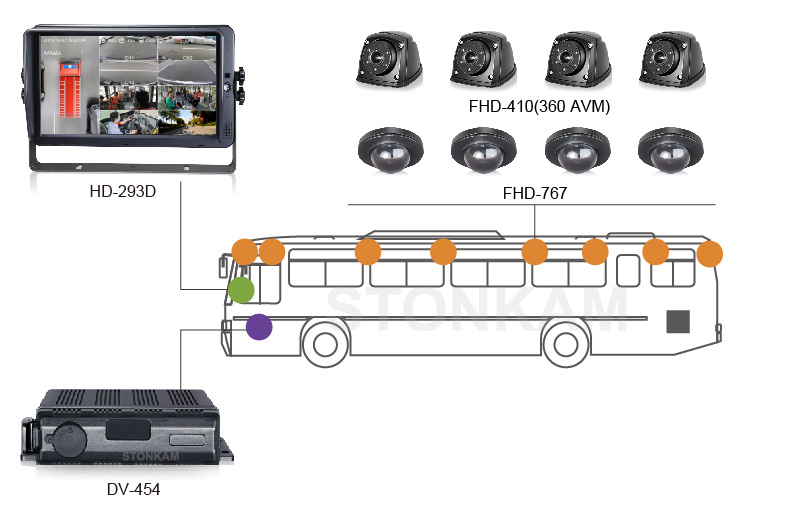

Solution 3: MDVR system combined with 360-degree panoramic monitoring

With 360 AVS algorithm,STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking systemCompatible with wide-angle cameras to achieve true 360° bird's-eye view surveillance without blind spots. At the same time, the system supports automatic calibration, saving installation time and cost. Using the BSD algorithm, the smart MDVR can detect pedestrians in front, side and rear of the vehicle in real time to avoid accidents caused by blind spots. Therefore, such driving aids are essential for large vehicles such as trucks, buses, and construction machinery. Through PC CMS client or mobile phone APP, you can clearly query the current location and historical driving track map/Baidu map of the vehicle on OS map/Google.

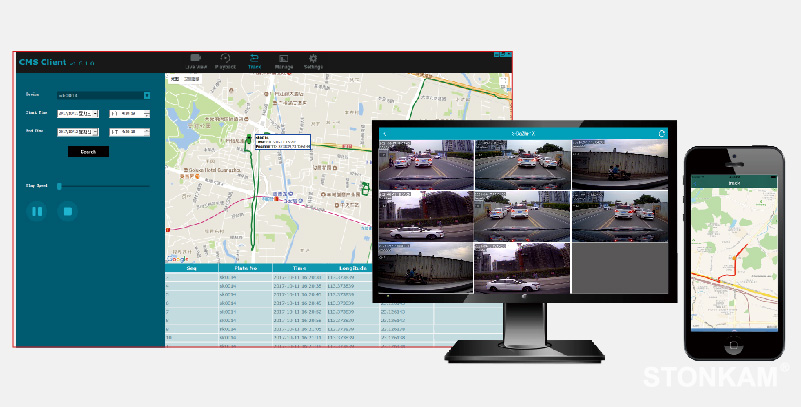

GPS vehicle history track playback

Through the PC-side CMS client or mobile APP, the current location and historical driving track of the vehicle can be clearly queried on the OS map/Google map/Baidu map.

Multiple trigger recording modes, 15-second pre-recording function

Support motion trigger, G-sensor trigger, overspeed trigger, 6-channel custom alarm input trigger, emergency button trigger recording, DMS/ADAS/BSD warning trigger. The 15-second pre-recording can capture the scene before the accident and provide evidence.

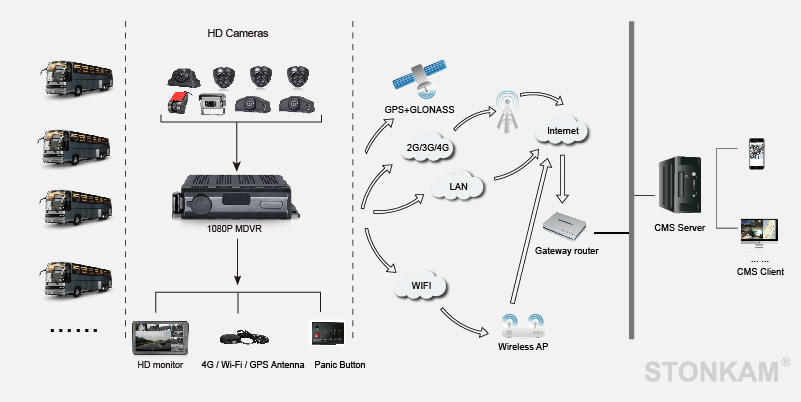

GPS vehicle historical trajectory playback Realize remote monitoring through DVR GPS tracking/ 3G/ 4G/ WiFi, convenient for PC/mobile vehicle management

Through the PC-side CMS client or mobile APP, the current location and historical driving track of the vehicle can be clearly queried on the OS map/Google map/Baidu map.

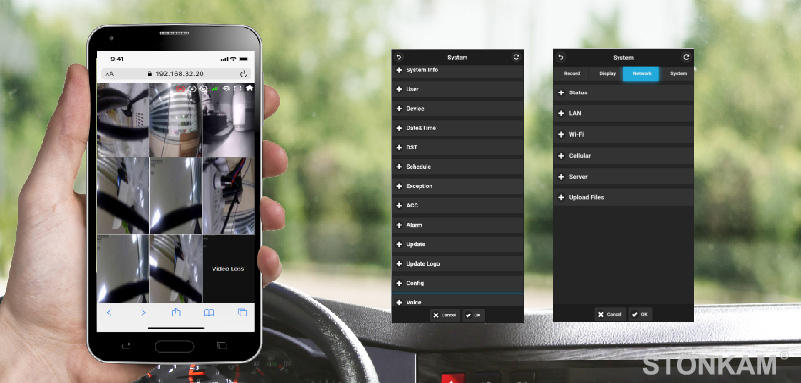

Preview using WIFI connection

With WiFi station and AP mode; AP mode can support direct connection to devices, easy preview and configuration on the mobile phone through WebUI.

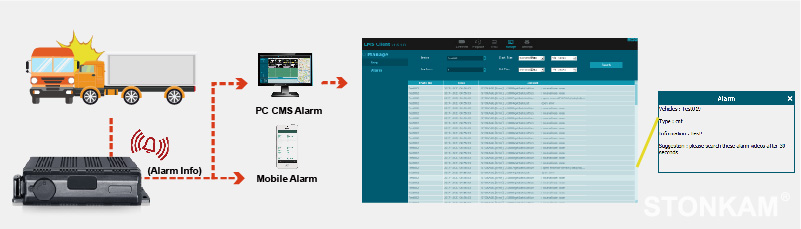

Alarm records, alarm information, log information automatic upload, data statistics and reminders

While providing vehicle tracking and tracing information, it helps to easily analyze anomalies.

Enhanced performance of the interactive interface

While providing vehicle tracking and tracing information, it helps to easily analyze anomalies.

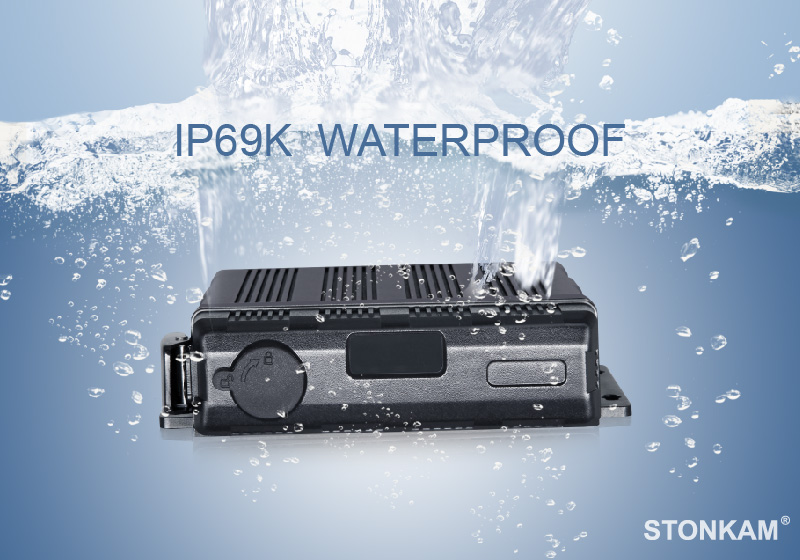

Water and dust resistant for outdoor and indoor use

IP69K protection level,STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking systemSuitable for various environments.

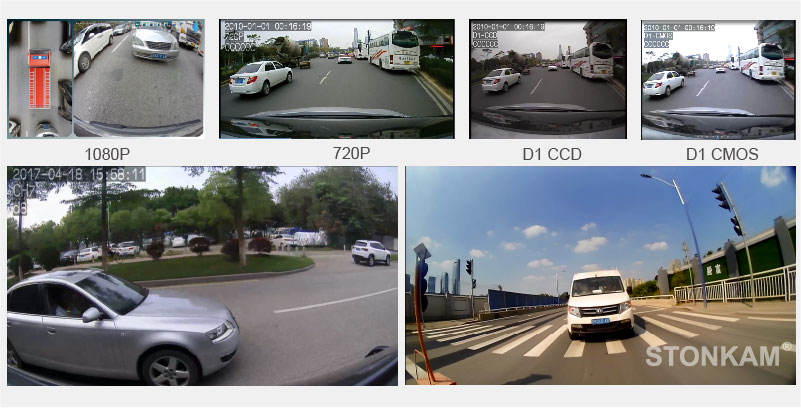

The whole process of incidents on the road is recorded, and remote high-definition screenshots are supported

STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking system You can set the video recording quality—1080P/720P/D1.

powerful recording

STONKAMmdvr 8ch 4g / gps / wifi truck/taxi/bus vehicle tracking system Various video recording methods, stable video storage equipment, vehicle information integration, and double protection of video data.

222

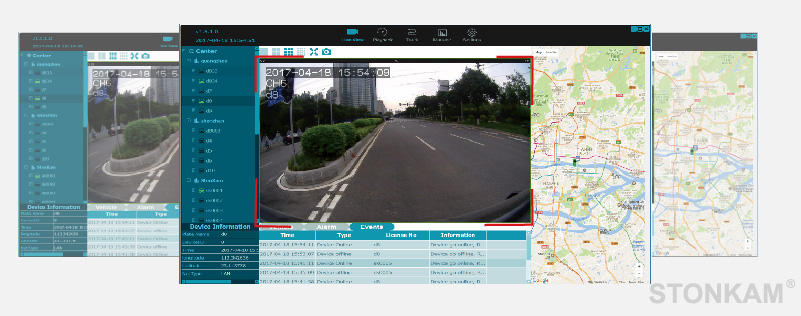

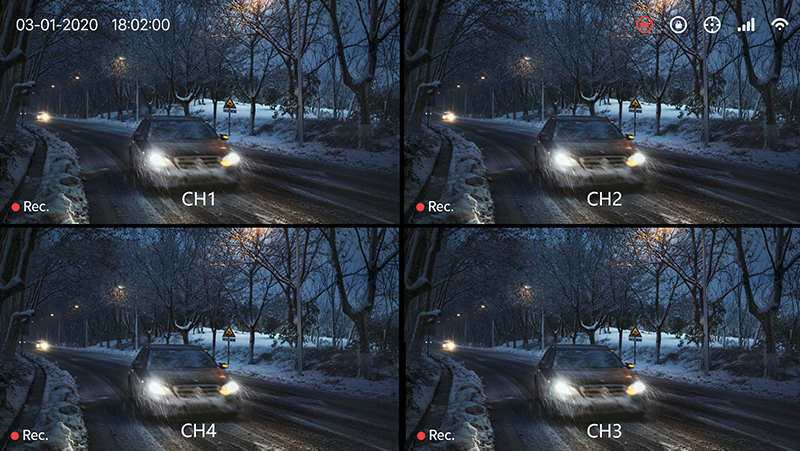

Watch Live Video on PC

Users can watch real-time video by selecting a specific license plate number on the left side of the CMS client. Each vehicle has a unique identification number in the CMS, which can be set by the user.
