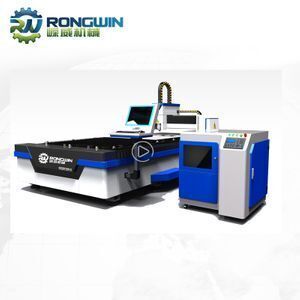

Cnc Fiber Laser Pipe Cutting Machine For Office Furniture
- 52000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Color: | Customized; | Condition: | New; |
| Automation: | Automatic; | Type: | Fiber Laser Cutting Machine; |
| Certification: | GS; | Voltage: | 220V/380V/400V; |
| Extra Services: | Slotting & Notching; | Payment Terms: | L/C,T/T,Trade Assurance; |
| Supply Ability: | 30 Set/Sets per Month 1 sets per day; | After-sales Service Provided: | Overseas service center available; |
| laser cutting machine price: | laser cutting machine price; | Raw Material: | PIPE; |
| Power: | Fiber Laser Cutting Machine; | Place of Origin: | Anhui China; |
| Packaging Detail: | shipped by FCL ,fixed in container .Sea worthdy packing; | Machine Type: | Pipe End Forming Machine; |
| Material / Metal Processed: | Aluminum; | Material: | Stainess Steel; |
| Model: | RW3015; | Application: | Construction Projects; |
| Warranty: | 2 Years; | Brand Name: | RONGWIN; |
| Usage: | Metal Sheet Rolling Cutting Bending; | Product name: | Cnc Fiber Laser Pipe Cutting Machine For Office Furniture; |
| Port: | Shanghai; |
Cnc Fiber Laser Pipe Cutting Machine For Office Furniture
Cutting area | 3000*1500mm |
X axis travel | 3050 |
Y axis travel | 1525 |
Z axis travel | 120 |
Position Accuracy | 0.03mm/m |
Repeat position accuracy | 0.03mm/m |
Maximum position speed | 120m/min |
Z axis height controller | Servo CNC |
Z axis servo system | Capacitance sensor |
Laser Power | 1000w |
Laser Source | USA |
Laser Generator Working Mode | Continuous /Modulation |
Max Work table load | 600kg |
Cutting thickness(in the required cutting condition) | Carbon steel 0.5-12 mm ,stainless steel:0.5- 5mm |
Format Supported | AI,BMP,PLT,DXF,DST,etc |
Size: | 7000*2750*1750(mm) |
Machine weight | 6T |
