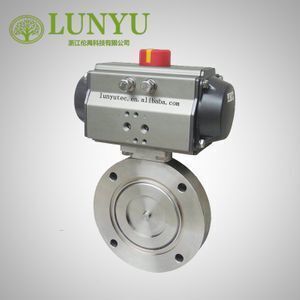

GIQ High Pressure Vacuum Pneumatic Butterfly Valve

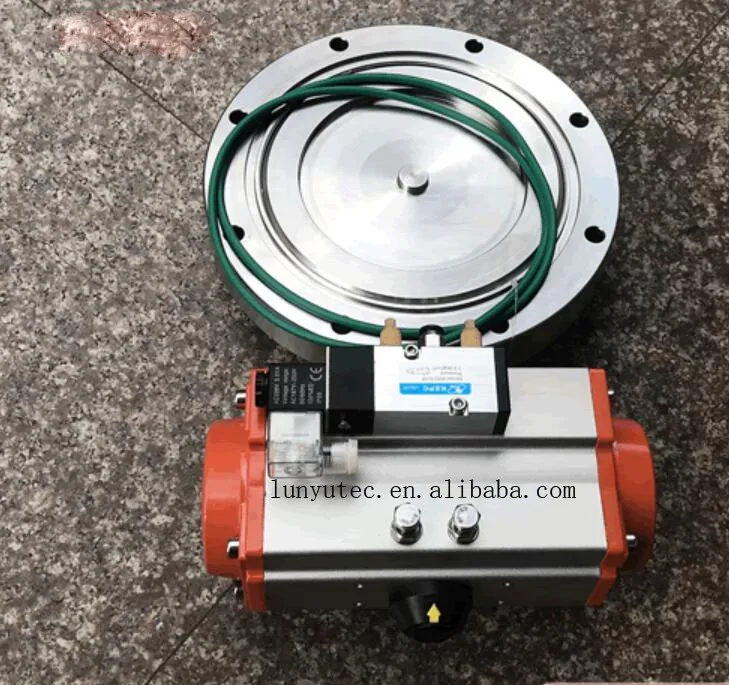

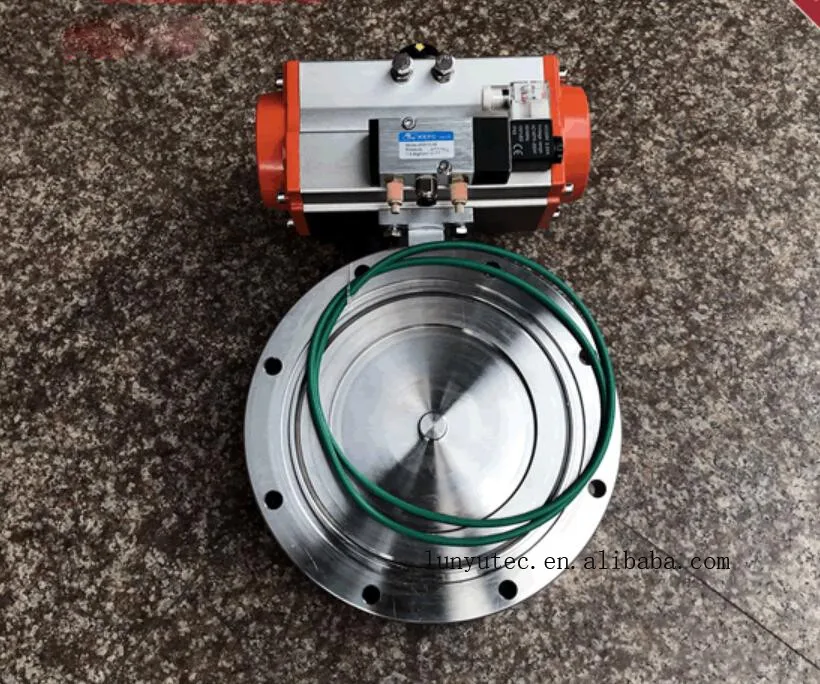

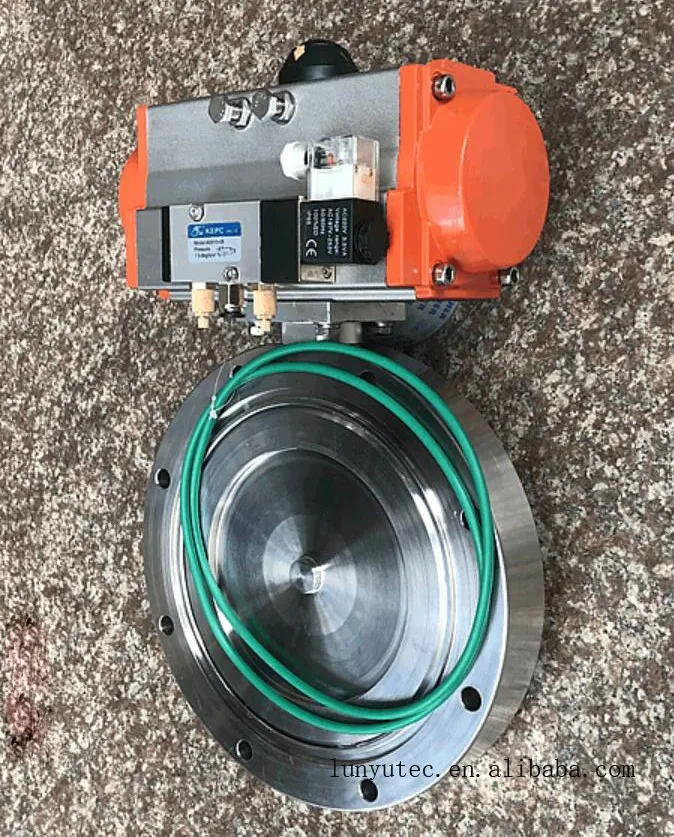

GIQ pneumatic high vacuum butterfly valve is to change the direction of gas path by electromagnetic reversing valve, and control the cylinder driven butterfly valve for opening and closing activities. Used to connect or cut off the air flow in a vacuum line. Applicable medium is pure air and non corrosive gas. Optional feedback signal assembly and electrical valve positioner.

Important technical performance
Applicability 105~1.3×10-4Pa
Valve Leak Rate ≤1.3×10-4Pa.L/S.
Applicable Temperature -25~+80ºC(Nitrile butadiene rubber)
-30~+150ºC(fluoro rubber)
Mains Voltage 0.4~0.6MPa
Mounting Direction optional

The valve is suitable for non corrosive saturated steam and low vacuum pipeline, as closed circuit equipment. The valve seal butterfly valve, 0.25MPa pressure sealing butterfly valve at both ends of the shaft seal, ensure that the shaft seal does not leak. The structure of the NKD941X-25C type double seat seat and between the situation, both at the shaft end is screwed with rubber pressure water (pressure 0.25MPa) combined sealing situation. If necessary, electric heating assembly can be installed on the valve body.

Model DN D Do D1 B H B1 L n-φc

Shape and connection size(mm)

GID-40 40 85 70 44 22 162 90 104 4-φ7
GID-50 50 110 90 55 22 175 90 104 4-φ7
GID-65 65 125 105 70 26 198 102 140 4-φ9
GID-80 80 145 125 85 30 208 102 140 4-φ9
GID-100 100 170 145 105 30 220 102 140 4-φ12
GID-150 150 220 195 156 35 272 115 164 8-φ12
GID-200 200 275 250 208 40 330 205 190 8-φ12
GID-250 250 330 300 258 45 335 205 190 8-φ14
GID-300 300 380 350 308 55 426 152 247 8-φ14
GID-400 400 500 465 410 60 520 180 308 8-φ18
GID-500 500 600 565 510 80 643 220 378 12-φ18
GID-600 600 710 670 610 100 760 270 524 12-φ21
GID-800 800 920 815 815 130 962 320 648 20-φ21
GID-1200 1200 1440 1280 1280 150 1360 385 1480 36-φ19

 Our company can provide the service making the products according to customer's requirement.
