CE approved factory prcice 30kw small biogas generator for sale

Product details
Working model:7x24 hours running;Option 2:heat recovery system;
Frequency:50/60HZ;Model Number:TG30GF;
Output Type:AC Three Phase;Gas type:Biogas;
Certificate:CE ISO;Warranty:1 year or 2000 running hours;
Rated Current:as per HZ;Product name:small biogas generator;
Speed:1500/1800rpm;Used field:Animal farm;
Packaging Detail:Wood case;Matched device:biogas digester;
Option 1:Parallel grid system;Rated Power:30kw;
Place of Origin:Shandong China (Mainland);Port:Qingdao;
Rated Voltage:110/220V or 220/380V;Brand Name:OEM;
Supply Ability:100 Set/Sets per Month;Maintenance time:300-400 working hours;
Payment Terms:L/C,T/T;
Product Description

we manufacture CE approved 10kw to 1000kw biogas generator

(click the below picture to check more generators)



Biogas generator requirement for gas:

1) Gas temperature ≤ 40℃                               2) Gas pressure 3 - 10kpa

3) H2S ≤ 40mg/Nm3                                        5) CH4 content ≥ 40%, changing rage ≤ 2%/min

6) Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3             7) Without moisture

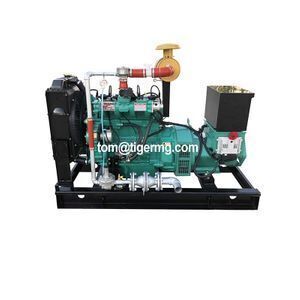

The 30kw biogas generator pictures:

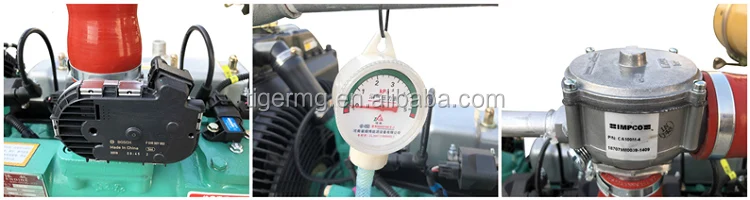

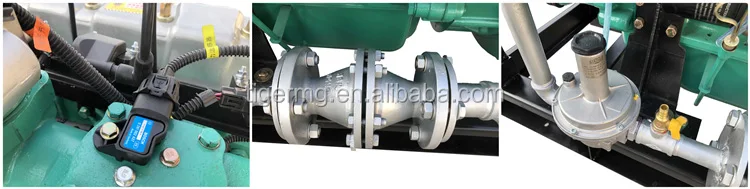

The 30kw biogas generator details



Parameters & supply details for 30kw biogas generator



Generator set parameters

Parameters

3 phase, 50HZ, 220/380V or 60HZ, 110/220V

Engine basic parameters

Model

High quality industrial gas engine

Continuous power/speed

40kw/1500rpm

Intake method

Naturally aspirated

Gas consumption

0.6 m3/kw.h

Starting method

24V electric start

Alternator basic parameters

Brand

Stamford

Type

Brushless, 100% copper wires stator & rotator

Copper wires vernished times

3 times

Rated output power

30kw

Voltage Regulate method

Adjusted automatically by AVR

Protection class / Insulation Class

IP21 / H

Supply details

1)  Gas engine with gas control system

2)  Alterantor

3)  controller with cabinet

4)  Base steel frame

5)  Free-maintenance battery

6)  Strong woodcase packing.



Options

1) Parallel with grid to sell electricity

    the system include the Smartgen controller and AUTO-PARALLEL switch, easier operation.

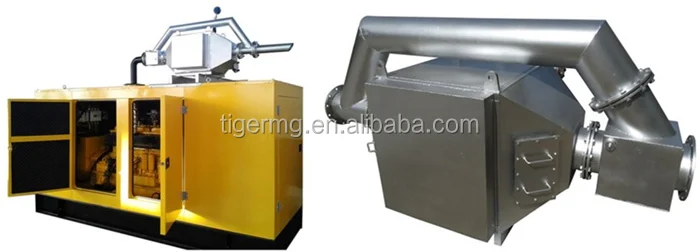

2) silent canopy

industrial class soundproof cotton, smaller shake, smaller noise!

3) heat recovery systemcan produce hot water >90

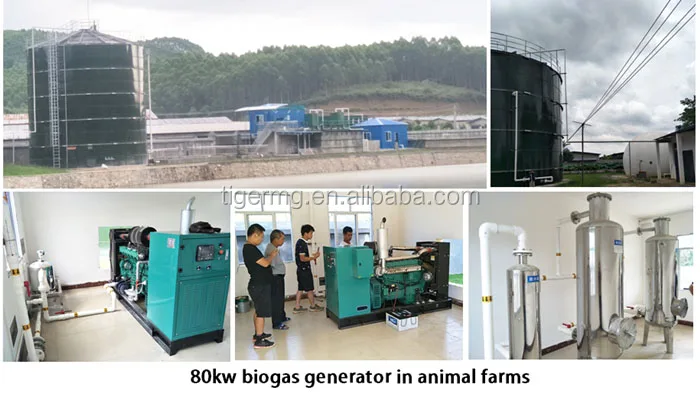

The successful projects for pig farms in China

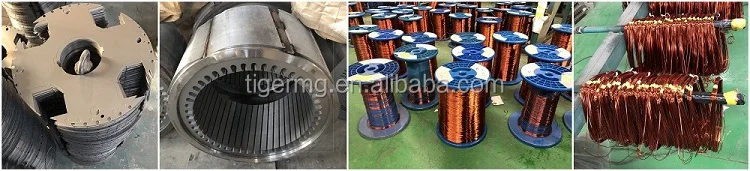

Alternator

100% copper wires brushless , AVR, air breaker with 2 years warranty

Services

Quality control

1) Engines: Only choose high quality engines with excellent quality parts like P type injectors, Bosch fuel pump etc

2) Alternators: Only choose 100% copper wires alternator, with China top brand breakers & AVR.

3) High quality parts like Schneider breaker, Omron relay, ComAp controller etc.

4) Professional 8 Hours test on 25%, 50%,75%, 100%, 110% load before delivery.



Worry-free service

1) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want.

2) Trade-assurance purchase: make the safe deal through Alibaba, no matter money, quality or service, all is guaranteed!

3) Production service: keep tracking for the progress of production, you will know how they are produced.

4) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time.

About us

1) Experienced workers, responsible atitudes, advanced equipments !

2) Super long warranty & worry free service!





Certificates

The company is legally registed with import & export rights, with CE / ISO certificates, own the patent of gas generator control system
