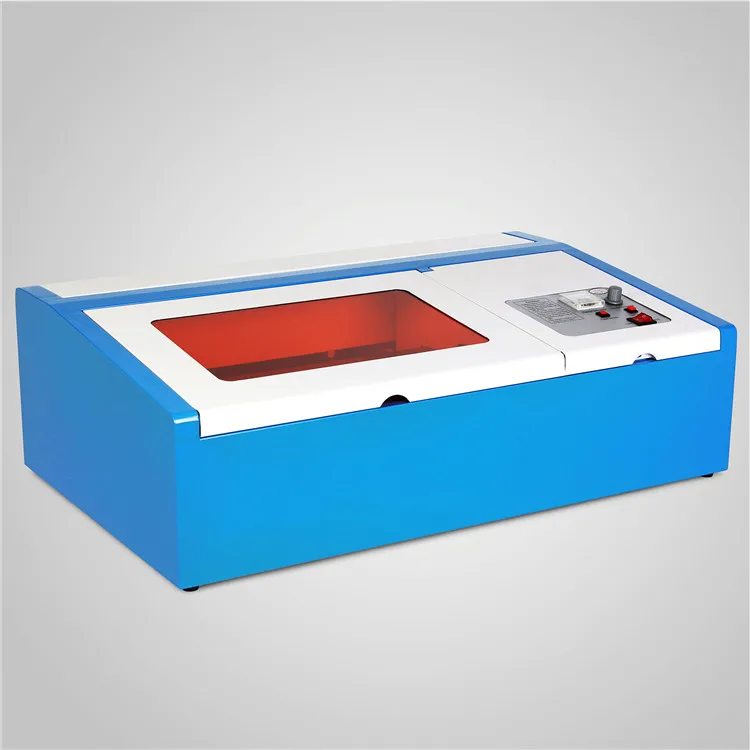

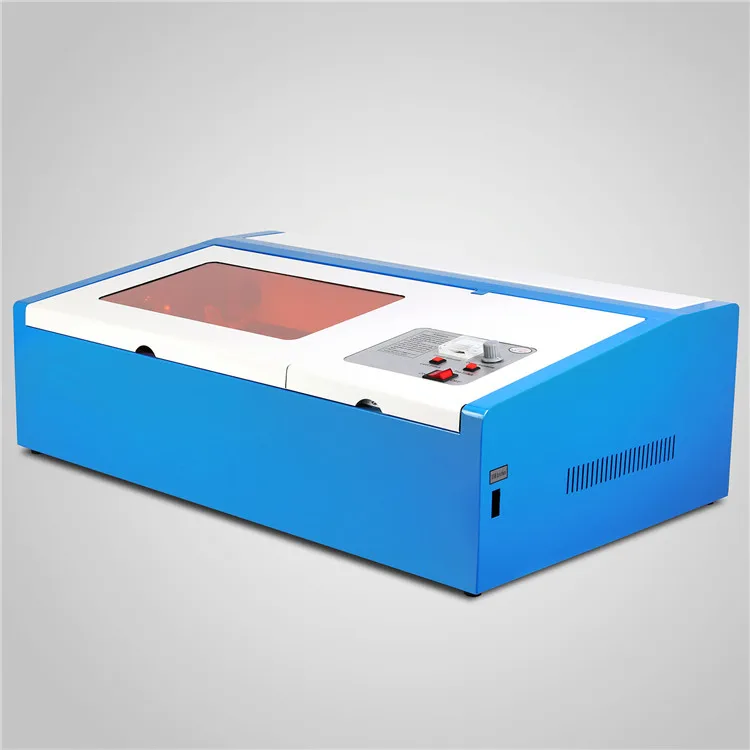

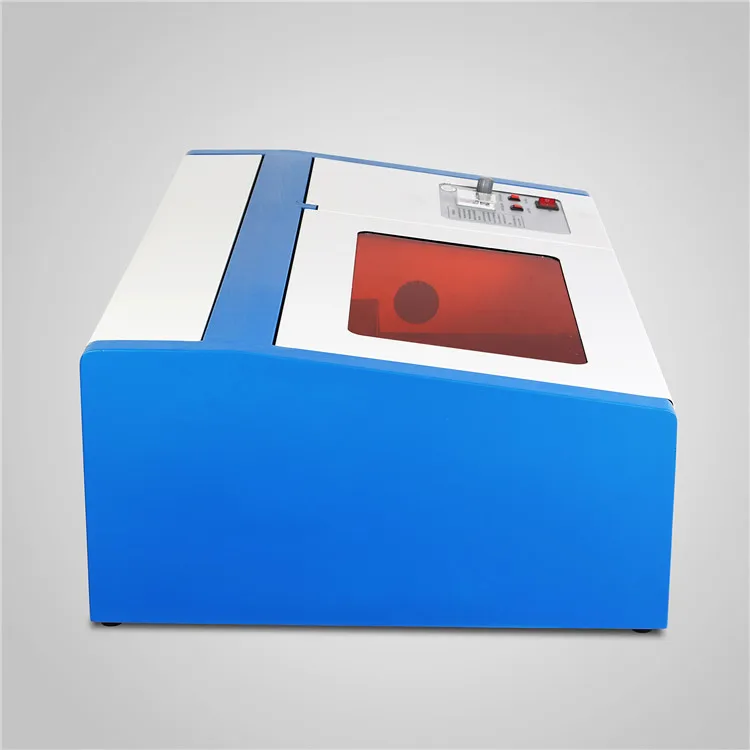

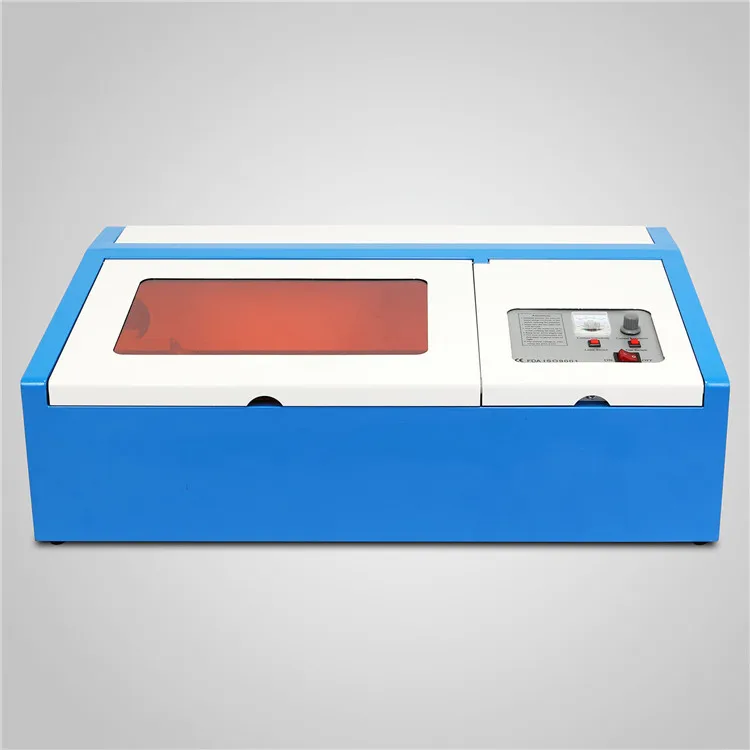

40W CO2 Laser Engraving Cutting Machine with USB PORT

Supplier: Taicang Vevor Machinery Equipment Co., Limited
Region: Jiangsu, China
Contact: Ms. Vevor Vevor
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

key words:	Laser Engraving Cutting Machine;	Warranty:	1 Year;
Cooling Mode:	Water Cooling;	Laser Source Brand:	EFR;
Graphic Format Supported:	AI,BMP,PLT,JPG/JPEG/WMF/EMF;	Key Selling Points:	High-accuracy;
CNC or Not:	No;	Optical Lens Brand:	II-VI;
Application:	Laser Engraving;	Payment Terms:	T/T,Western Union,MoneyGram,paypal;
After-sales Service Provided:	Online support;	Applicable Material:	Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Rubber,Stone,Wood;
Place of Origin:	China;	Guiderail Brand:	TPI;
Brand Name:	Laser Engraving Cutting Machine;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Packaging Detail:	CARTON WELL-PACkED;	Port:	Shanghai;

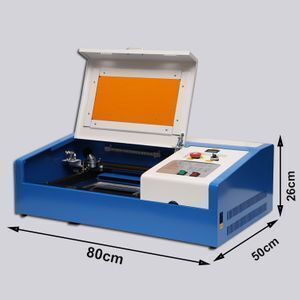

Dimension(LWH):	95X63X41 cm;	Engraving Area:	12x8in (300x200mm);
After-sales Service Provided:	Engineers available to service machinery overseas;	Engraving Speed:	0-1.38 in./s (0-35mm/s);
Condition:	New;	Certification:	CE;
Laser Type:	CO2;	Product name:	40W CO2 Laser Engraving Cutting Machine with USB PORT;
Supply Ability:	10000 Set/Sets per Month Laser Engraving Cutting Machines;

40W CO2 Laser Engraving Cutting Machine with USB PORT

Introduction:

This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

1.Applicable Material:

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials. All laser engraving machines can not carve and cut metal.

2.Applicable Industry:

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.

Features:

This machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver.

USB Port to Computer.
CorelDraw Software Included. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.
Adopt Japan imported mainboard and chip which can control the engraving more precise.

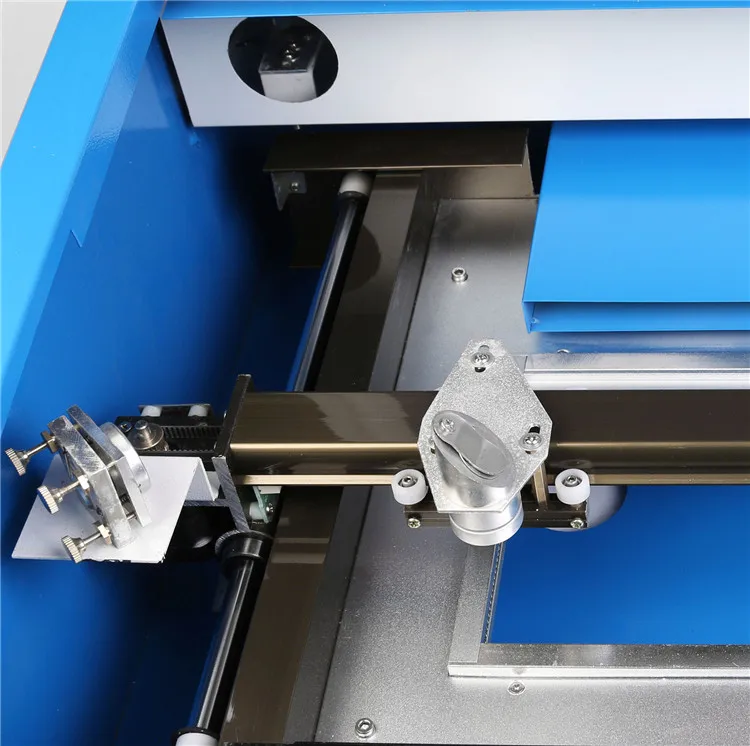

Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 LASER Engraver.
The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.
High Precision Stepping motor makes engraving more precise.
This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.
Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Operating Temperature:32-113F (0-45C)
Graphic Format Supported:BMP/JPG/JPEG/WMF/EMF/PLT

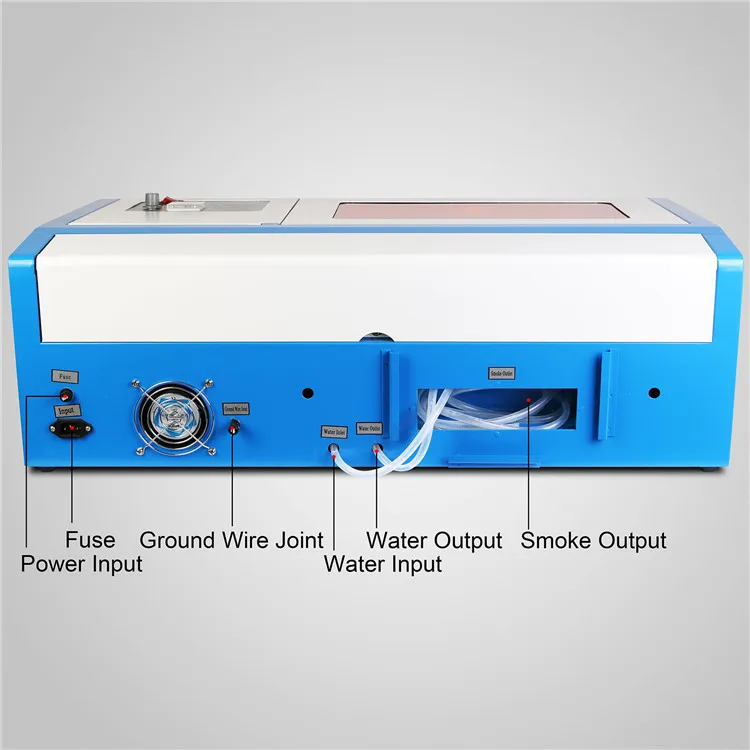

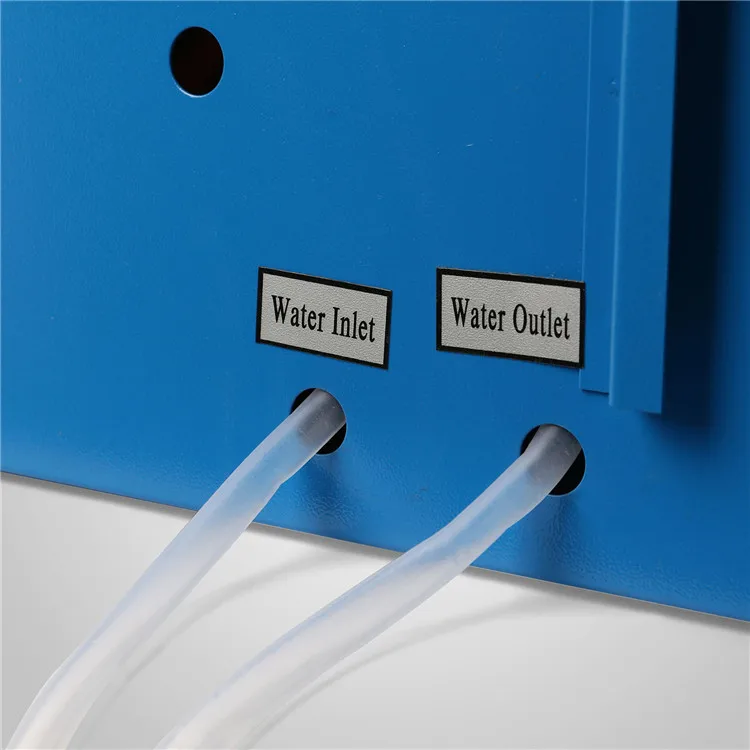

Water Cooling:Water Pump include
Recommended Spare Parts/Consumables:Laser Tube, Focal lens,Reflection lens
Software Supported: CorelDraw software (both NewlyDraw and NewSeal function)
Motor Type:Stepper Motor

Technical Specifications:

Interface to Computer	USB Port	FDA Compliant	Yes
Laser Type	CO2 Gas	CE Certification	Yes
Tube Trigger Volt	20KV	ISO9001 Certification	Yes
Tube Operating Volt	15KV	Power Consumption	≤250W
Current	0~22mA	Resetting Positioning	≤0.0004 in (0.01mm)

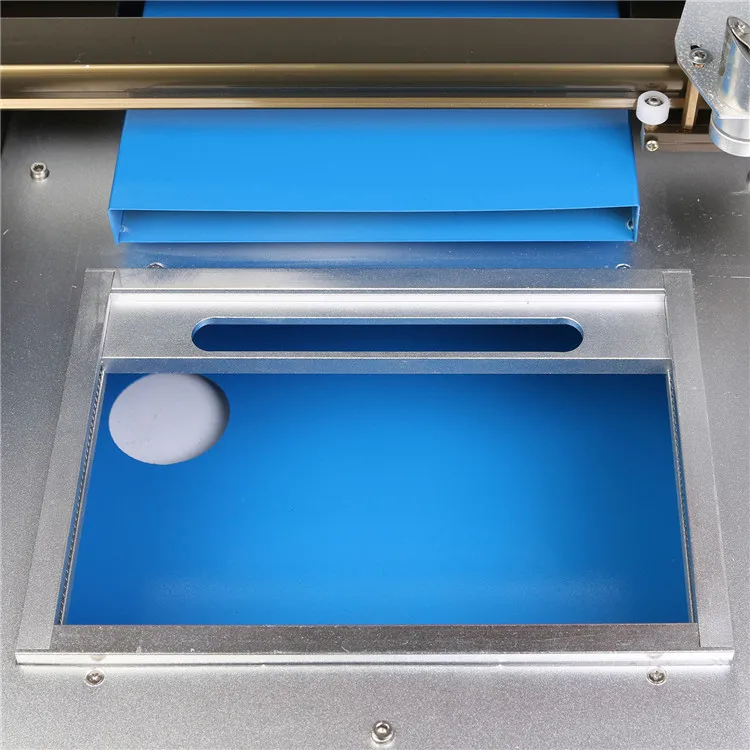

Engraving Area	12x8in (300x200)	Maximum Item Size to Engrave	260mm x 220mm x 70mm
Laser Power	40W	Laser Tube (life hours)	1000-1300 Hours
Engraving Speed	(0-350mm/s)	Minimum Shaping Character	0.04 X0.04in (1mm X 1mm)
Cutting Speed	(0-35mm/s)	Resolution Ratio	(0.026mm) / (1000dpi)
Product Dimensions	800x500x250mm	Product Weight	30Kg/67lb (shipping 48kg)

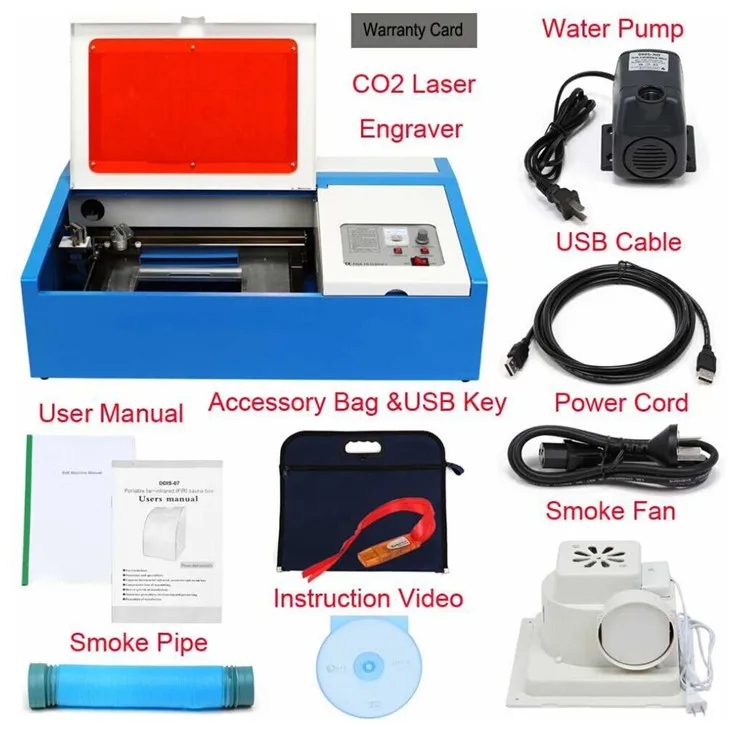

Packing list:

1 x CO2 LASER Engraver
1 x Water Pump
1 x Smoke Pipe
1 x Smoke Fan
1 x Power Wire
1 x USB Cable
1 x USB Key
1 x Accessory Bag
1 x Instruction Video
1 x English User Manual

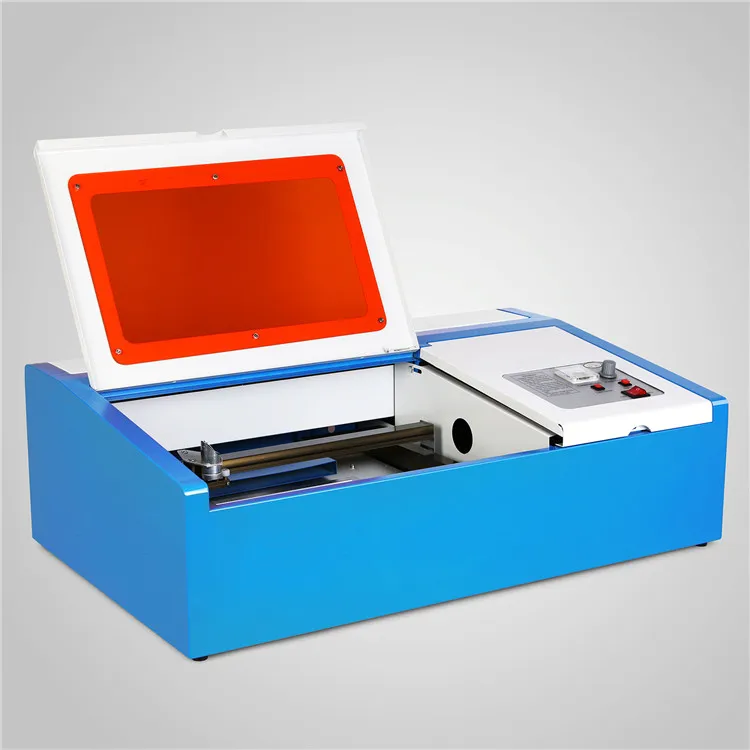

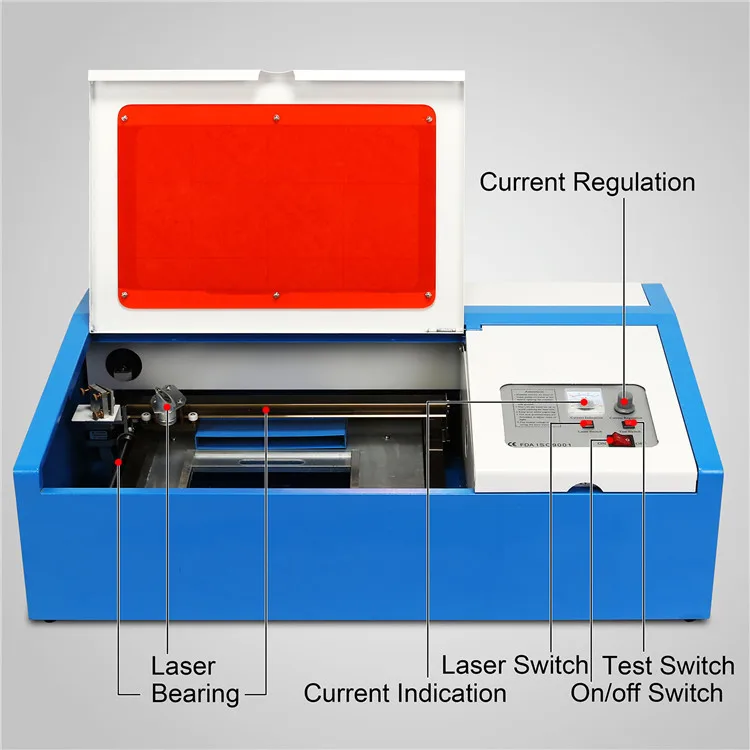

Pictures:
