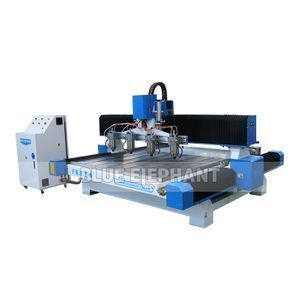

Heavy Duty Body 3D Stone Carving Cnc Router Machine , Marble Stone Cutting Machine for Granite Engraving

Supplier: Jinan Dxtech CNC Machine Co., Ltd.
Region: Shandong, China
Contact: Ms Emma Lee
Price: $7880.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Computer Interface:	USB;
Certification:	CE ISO9001 SGS BV TUV;	Type:	CNC Router;
Drive Motors:	450C stepper motor and YAKO2811 bigger driver;	Voltage:	AC380V/50/60Hz, 3PH (200V);
Weight:	1400Kg;	Name:	3D Stone Carving Cnc Router Machine , Marble Stone Cutting Machine;
Stone Machinery Product Name:	Stone Cutting Machine;	Dimension(LWH):	18001500200 mm;
Applicable Industries:	Building Material Shops,Home Use,Advertising Company;	Supply Ability:	200 Set/Sets per Month marble cutting machine;
Port:	Qingdao,Tianjin,etc.;	Use:	Marble;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram,Paypal;	Production Capacity:	100Sets/Month;

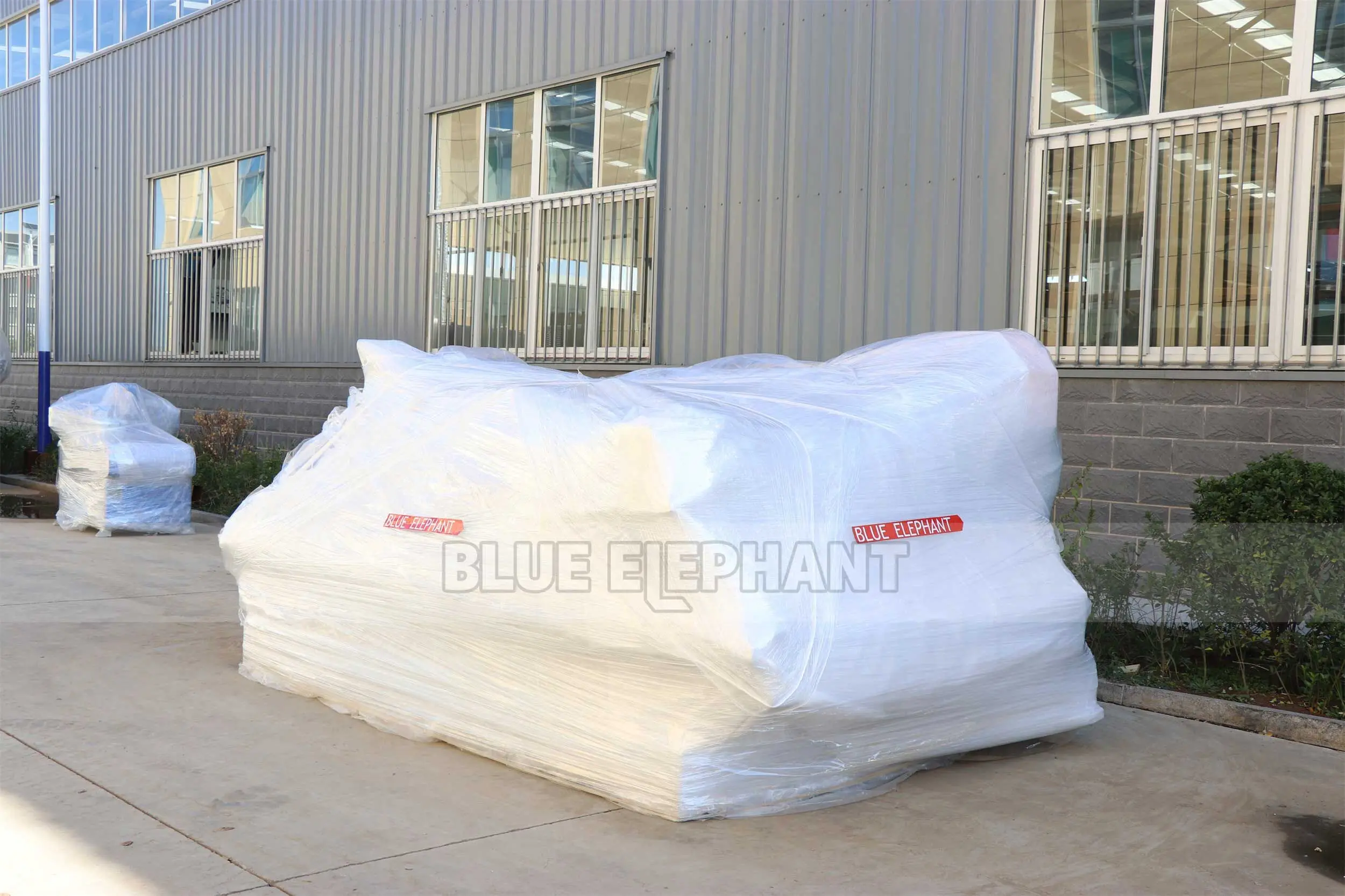

Spindle:	5.5kw*4 Chang sheng ATC water cooling spindle;	Packaging Detail:	Standard export wooden package for exporting stone cutting machine.;
Condition:	New;	Application:	Stone Industrial;
Power(W):	5.5KW;	Table Surface:	T-slot work table;
Warranty:	12 Months;	Key Selling Points:	Automatic;
Operating System:	Mach 3 4 axis control system;	Stone Machinery Working Area:	18001500200 mm;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;

Heavy Duty Body 3D Stone Carving Cnc Router Machine , Marble Stone Cutting Machine for Franite Engraving

---10 years factory experience

---very professionally produce 3 axis, 4 axis, 5 axis, ATC cnc router, laser cutting machine

---big discount in this month, welcome to inquiry!

Advantage:

Strong power acquired by water cooling spindle 5.5kw, and customized sink work table is just right for stone, granite etc processing;
Dust proof design on X and Y axis do you favor on machine maintenance;
Removable rotary device just for your option, in case that you need to process cylinder objects;

Technical parameters

Model	ELECNC-1815
Color	According to your needs
Effective Working Area	18001500200 mm
Working Voltage	380V, 3Phase, 50Hz or option
Control system	Mach 3 4 axis control system
Spindle	5.5kw*4 Chang sheng ATC water cooling spindle
Lubrication System	Auto Lubrication System
Gantry Structure	Gantry Moving
Table Surface	T-slot work table
Transmission	25# square linear guide Taiwan TBI ball screw for Z axis
Tool Sensor	simple tool sensor calibration
Structure	Heavy duty stone machine body
Rotary device	Chuck Diameter in 200mm
Inverter	5.5KW Best inverter*4
motor and driver	450C stepper motor and YAKO2811 bigger driver

PS:All the working area and specifications can be customized according to your requests.

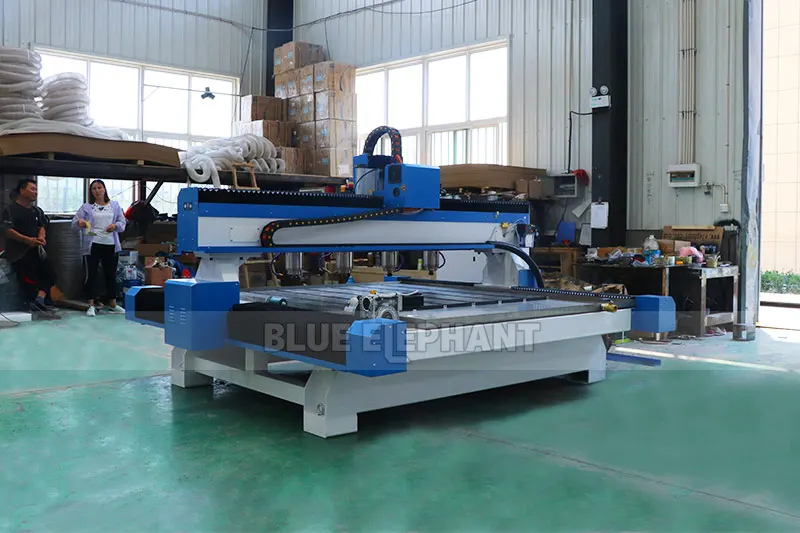

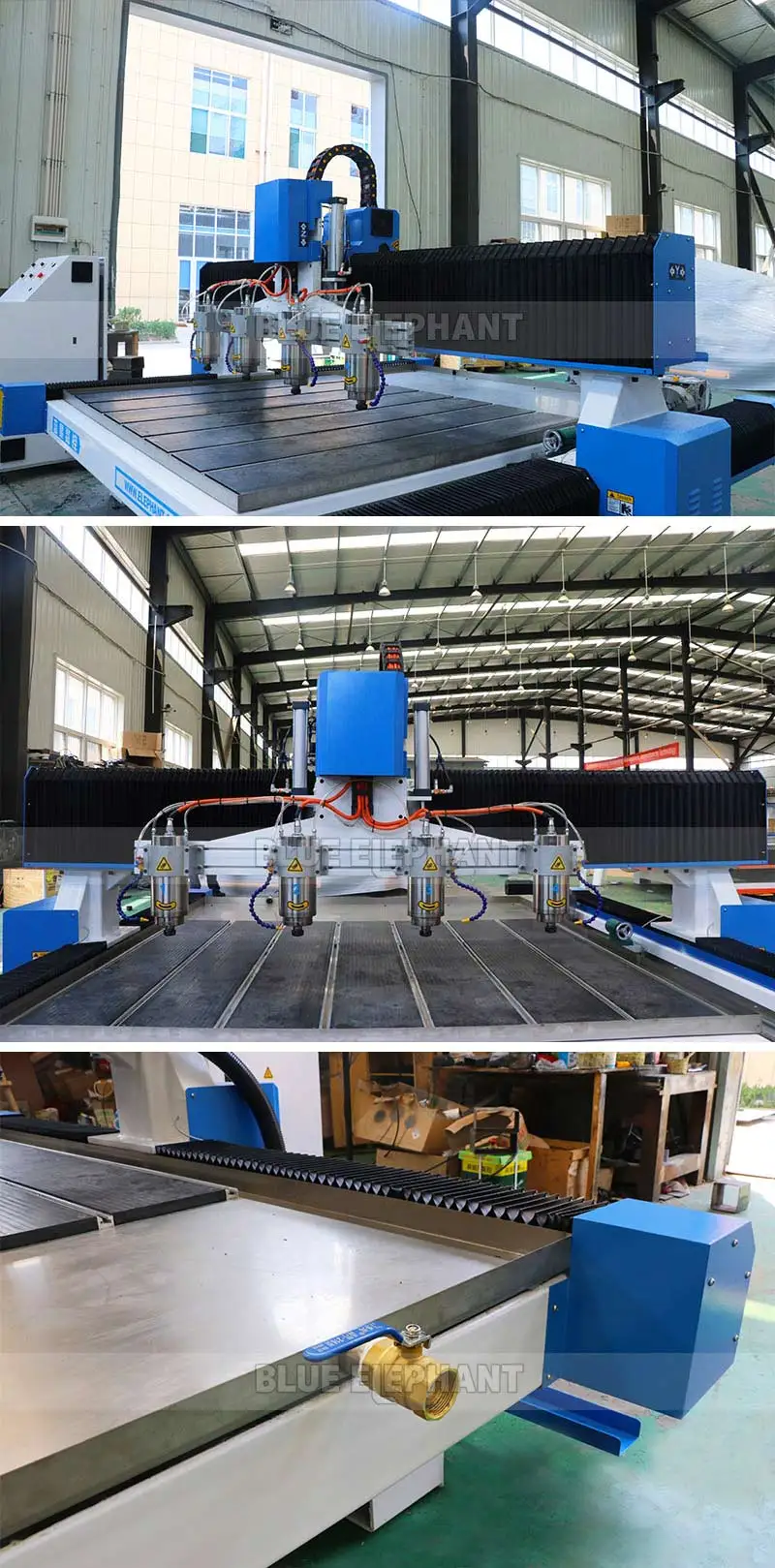

marble cutting machine detail images:

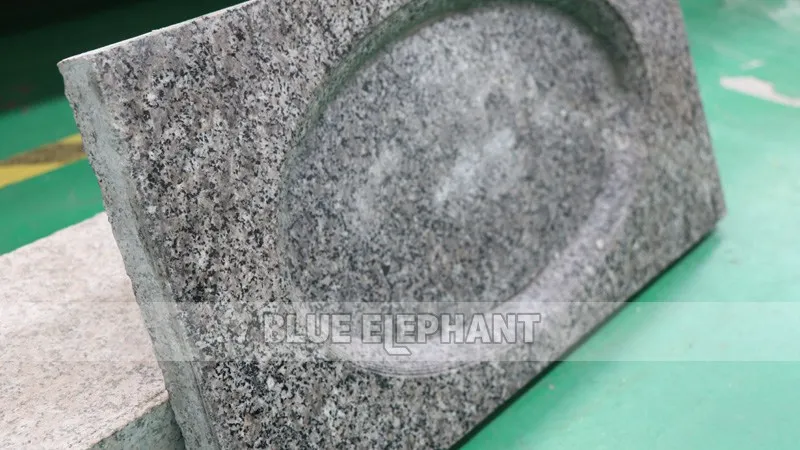

Applications of stone cutting machine:

Marble, granite, standstone, glass, artificialstone, headstone, tablet, such as ceramic engraving and cutting materical.

FAQ

Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)

Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Question 4: This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

Other Questions ?
1 set machine, mixed order is also welcomed.

Our Service& Clients

Guarantee and After-sale service:

12 months warranty for the whole machine.

Technical support by phone, email or WhatsApp/Skype around the clock.
Friendly English version manual and operation video CD disk.
Engineer available to service machinery overseas.

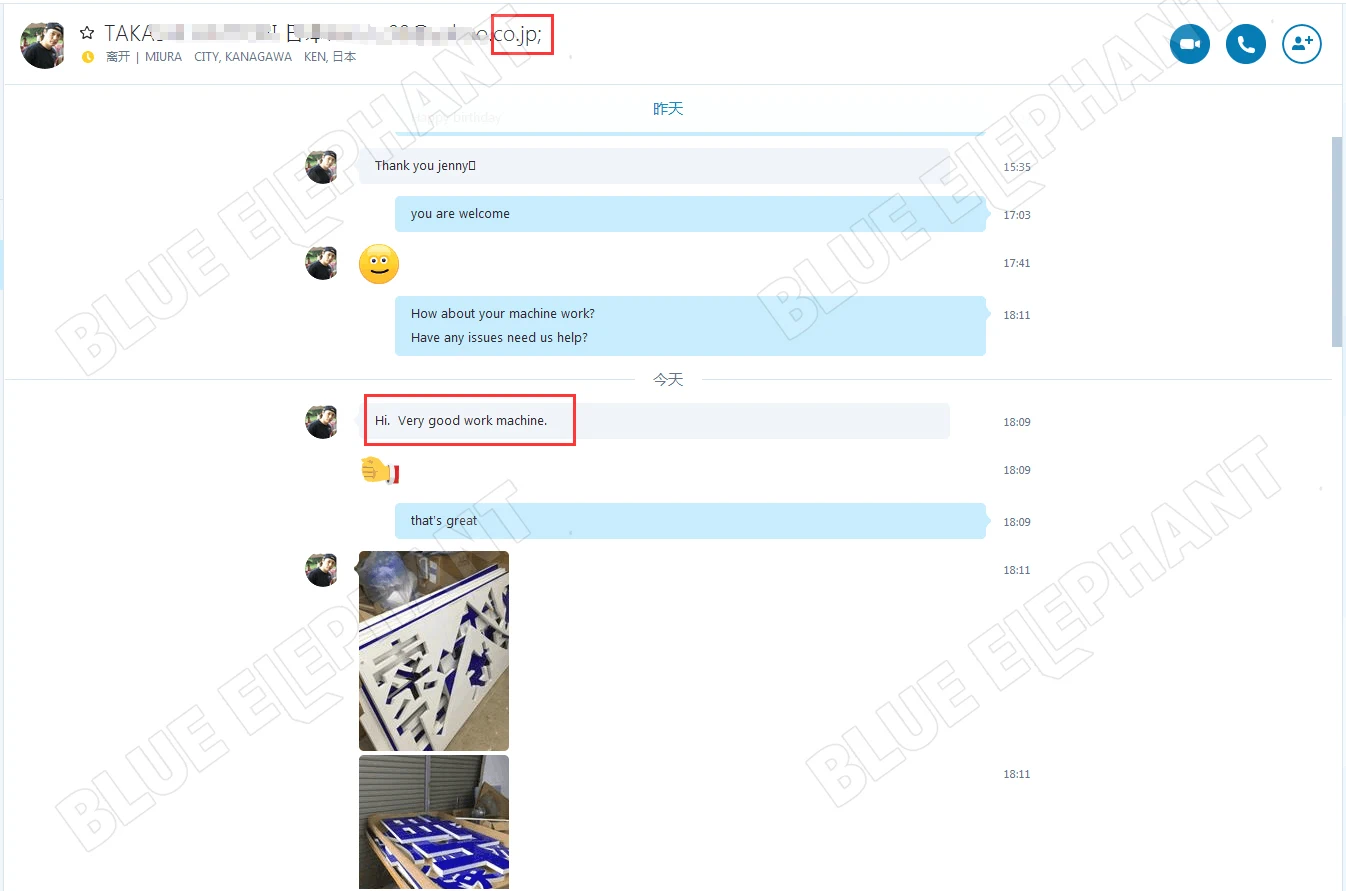

You can see that many customers visited us, more and more customers in the world are using our machine, we received many good feedbacks or reviews from lots of countries.
