Power Accessories Aerial Line OPGW Suspension Clamp
-
Supplier: Hunan GL Technology Co., Ltd. -
Region: Hunan, China -
Contact: Ms GL Fiber Cable -
Price: $5.00 / >=100 pieces -
Min. Order: 100 pieces
| Key Words: | Opgw suspension clamp; | Port: | SHENZHEN; |
| Color: | Silver, white,etc.; | Material: | Metal; |
| Brand Name: | GL; | Supply Ability: | 10000 Piece/Pieces per Week electric power line clamp; |
| Corrosion resistance: | YES; | OEM/ODM: | YES; |
| Packaging Detail: | Wooden Box,etc.(As customer required) for Power Accessories Aerial Line OPGW Suspension Clamp; | Payment Terms: | T/T,Western Union,MoneyGram; |
| Certificate: | ISO9001:2000; | Application: | Aerial; |
| Model Number: | OPGW SUSPENSION; | Place of Origin: | Hunan China; |
| Packing: | Wooden Box,etc.; |

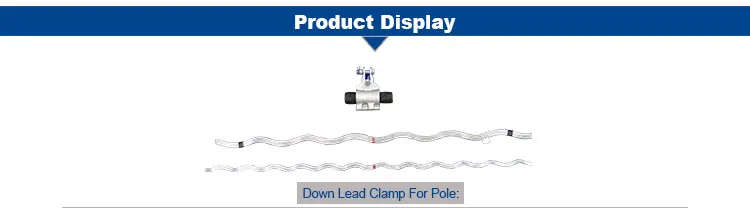

Power Accessories Aerial Line OPGW Suspension Clamp
The Helical Suspension Sets are intended for connecting OPGW/ADSS Cables and poles,
reducing static stress to the OPGW Cables at support points and cushioning against the dynamic stress of aeolian
vibration, Providing protection against cable bending stress, there is no other stress concentration, so that the fiber
optic does not produce extra loss in the cable after installation.
Structure and Raw Material:
Housing Clamp------It is made of cast aluminum alloy, which is stable, better anticorrosive in areo and mechanical performance.
Rubber Insert------It is made of high-class rubber, compounded for resistance to ozone, wheathering extreme high and low temperature variations and compression set.
Bolt, Nut, Split Washer, Lock Pin------Hot dipped galvanized.
Flat Washer------Electric power standards
Anchor Shackle------Electric power standards
Outer Protection Rods ------High strength aluminium alloy for wheathering extreme high and low temperature variations, compression set, water resistance and high hardness.
Inner Protection Rods------the same to Outer Protection Rods
Connection Hardware----- Anchor Shackle,Clevis Screw, UB Hang Plate,ZH Hang Plate, Electric Power standards.
Single Suspension Sets Technical Specification:
Model |
Cable Dia. range (mm) | Length of Structural Reinforcing Rods (mm)
| Length of Outer Rods (mm) | Weight (kg)
| Color Code | Collocate | |
AGS Clamp | Link Fittings | ||||||
GL-OXY 0800 | 7.4-8.0 | 1650 | 1100 | 1.27 | Blue |
Referrence Table 16.3
| Reference Appendix1 |
GL-OXY 0880 | 8.1-8.8 | 1650 | 1100 | 1.37 | Green | ||
GL-OXY 0960 | 8.9-9.6 | 1690 | 1140 | 1.49 | Yellow | ||
GL-OXY 1010 | 9.7-10.1 | 1690 | 1140 | 1.49 | Black | ||
GL-OXY 1060 | 10.2-10.6 | 1690 | 1140 | 1.56 | White | ||
GL-OXY 1110 | 10.7-11.1 | 1720 | 1140 | 1.57 | Red | ||
GL-OXY 1160 | 11.2-11.6 | 1760 | 1180 | 1.72 | Blue | ||
GL-OXY 1170 | 11.7-11.7 | 1840 | 1240 | 1.88 | Green | ||
GL-OXY 1200 | 11.8-12.0 | 1840 | 1240 | 1.88 | Yellow | ||
GL-OXY 1270 | 12.1-12.7 | 1860 | 1240 | 1.89 | Black | ||
GL-OXY 1290 | 12.8-12.9 | 1960 | 1240 | 2.12 | White | ||
GL-OXY 1360 | 13.0-13.6 | 1960 | 1320 | 2.2 | Red | ||
GL-OXY 1410 | 13.7-14.1 | 2000 | 1320 | 2.22 | Blue | ||
GL-OXY 1430 | 14.2-14.3 | 2000 | 1320 | 2.22 | Green | ||
GL-OXY 1450 | 14.4-14.5 | 2120 | 1440 | 2.61 | Yellow | ||
GL-OXY 1510 | 14.6-15.1 | 2120 | 1440 | 2.62 | Blue | ||
GL-OXY 1580 | 15.2-15.8 | 2180 | 1440 | 2.65 | White | ||
GL-OXY 1600 | 15.9-16.0 | 2400 | 1620 | 3.05 | Red | ||
GL-OXY 1690 | 16.1-16.9 | 2400 | 1620 | 3.05 | Blue | ||
GL-OXY 1730 | 17.0-17.3 | 2400 | 1620 | 3.2 | Green | ||
GL-OXY 1800 | 17.4-18.0 | 2400 | 1620 | 3.3 | Yellow | ||
GL-OXY 1840 | 18.1-18.4 | 2400 | 1620 | 3.3 | Black | ||
GL-OXY 1880 | 18.5-18.8 | 2400 | 1620 | 3.55 | White | ||
GL-OXY 1890 | 18.9-18.9 | 2400 | 1620 | 3.55 | Red | ||
GL-OXY 1990 | 19.0-19.9 | 2400 | 1620 | 3.55 | Blue | ||
Double Suspension Sets Technical Specification:
Specification Model | Cable Diameter (mm) | Distance between Housing Clamps | Color Code |
GL-OXF 1010 070S | 9.5-10.1 | 485 |
orange |
GL-OXF 1080 070S | 10.2-10.8 | 485 | yellow |
GL-OXF 1150 070S | 10.9-11.5 | 485 | green |
GL-OXF 1220 070S | 11.6-12.2 | 485 | cyan |
GL-OXF 1290 070S | 12.3-12.9 | 485 | blue |
GL-OXF 1360 070S | 13.0-13.6 | 485 | purple |
GL-OXF 1430 070S | 13.7-14.3 | 485 | black |
GL-OXF 1500 070S | 14.4-15.0 | 485 | red |
GL-OXF 1570 070S | 15.1-15.7 | 485 | orange |
GL-OXF 1640 070S | 15.8-16.4 | 485 | yellow |
GL-OXF 1710 070S | 16.5-17.1 | 485 | green |
GL-OXF 1780 070S | 17.2-17.8 | 485 | cyan |
GL-OXF 1850 070S | 17.9-18.5 | 485 | blue |
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
PAKING AND SHIPPING
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. | Our Service: 1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2.We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3.Please send us inquiry for more products info and we will give you feedback in 12 hours. |
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
