Factory Adss Fittings Accessories 200/400/600 Span Adss Fiber Optical Cable Tension Suspension Clamp In China
-
Supplier: Hunan GL Technology Co., Ltd. -
Region: Hunan, China -
Contact: Ms GL Fiber Cable -
Price: $4.90 / >=10 sets -
Min. Order: 10 sets
| Standard: | IEC Standard; | Voltage: | 1-220KV; |
| Install: | Aerial Tension; | Packaging Detail: | wooden case; |
| Brand Name: | GL fiber; | Product name: | Tension Clamp suspension clamp; |
| Function: | Anchoring; | Sample: | Providing Sample Confirmed; |
| Model Number: | Adss Fittings Accessories; | Place of Origin: | Hunan China; |
| Advantage: | Economic; | Service: | Customized; |
| Application: | High Voltage Transmission Line; | Suitable Span: | 100m/150m/200m/300m/400m Span; |
Factory Adss Fittings Accessories 200/400/600 Span Adss Fiber Optical Cable Tension Suspension Clamp In China
This ADSS fitting clamps used to connect ADSS fiber optic cable and tower in ADSS fiber optic cable erection. Pre-skewers can protect and improve the resistance of ADSS fiber optic cable. The special design of pre-stranded wire can ensure that the tension clamp itself will not produce the stress concentration that causes damage to the ADSS cable, so as to ensure the normal life of the cable system.
Tension clamp datasheet(for reference only):
Model no. | Dia.of ADSS cable (mm) | Tensioning preformed rods | Color code | |
Length(mm) | Rods quanlity | |||
ANF 1000 010 | 9.0-10.0 | 750 | 6 | Red |
ANF 1110 010 | 10.1-11.1 | 800 | 7 | Orange |
ANF 1220 010 | 11.2-12.2 | 850 | 7 | Yellow |
ANF 1330 010 | 12.3-13.3 | 900 | 8 | Green |
ANF 1440 010 | 13.4-14.4 | 950 | 8 | Blown |
ANF 1550 010 | 14.5-15.5 | 1000 | 6 | Blue |
ANF 1660 010 | 15.6-16.6 | 1050 | 6 | Purple |
ANF 1770 010 | 16.7-17.7 | 1100 | 7 | Black |
ANF 1880 010 | 17.8-18.8 | 1150 | 7 | Red |

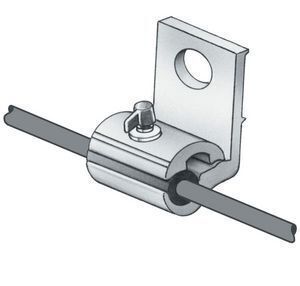

Suspension clamp( for reference only):
Model No. | Dia. Of ADSS cable (mm) | Length of clamp(mm) |
AXJ 1110 010 | 9.0-11.1 | 116 |
AXJ 1330 010 | 11.2-13.3 | 116 |
AXJ 1550 010 | 13.4-15.5 | 116 |
AXJ 1770 010 | 15.6-17.7 | 116 |
Remark: Pls advise the details of ADSS cable to customized the ADSS fitting clamps.
20 sets tension/suspension clamp in one carton box, 100 sets in one wooden case( for reference only).
-
