HSS HSSCobalt Hand reamer BS328/ISO236/DIN206
- 1.00 >=50 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Shanghai; | Place of Origin: | Jiangsu China (Mainland); |
| Delivery Detail: | 40 days; | Usage: | reaming; |
| finish: | bright finish; | Packaging Detail: | plastic box packing; |
| Payment Terms: | L/C,T/T; | Type: | Hand Reamer; |
| Suitable for: | Cast Iron; | Application: | Hole Processing; |
| Product Name: | Right-hand Reamer; | Supply Ability: | 5000 Piece/Pieces per Month; |
| Flute: | Sprial Flute; | Material: | HSS; |
| standard: | din206; | Precision: | High Precision; |
| Processing Type: | General Cutting; | SIZE: | M3-M22; |
| Model Number: | S40; | Brand Name: | STC; |

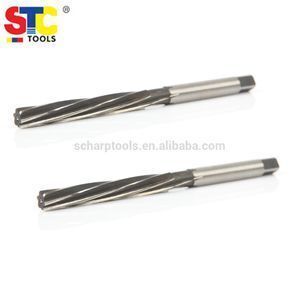

HSS HSSCobalt Hand Reamer BS328/ISO236/DIN206.
- High speed steel,
- Tolerance H7.
- Available in straight/spiral flute.
D | L | l | D | L | l |
5 | 87 | 44 | 23 | 215 | 107 |
5.5 | 93 | 47 | 24 | 231 | 115 |
6 | 93 | 47 | 25 | 231 | 1165 |
7 | 107 | 54 | 26 | 231 | 115 |
8 | 115 | 58 | 27 | 247 | 124 |
9 | 124 | 62 | 28 | 247 | 124 |
10 | 133 | 66 | 30 | 247 | 124 |
11 | 142 | 71 | 32 | 265 | 138 |
12 | 152 | 76 | 34 | 284 | 142 |
13 | 152 | 76 | 35 | 284 | 142 |
14 | 163 | 81 | 36 | 284 | 142 |
15 | 163 | 81 | 38 | 305 | 152 |
16 | 175 | 87 | 40 | 305 | 152 |
17 | 175 | 87 | 42 | 305 | 152 |
18 | 188 | 93 | 44 | 326 | 163 |
19 | 188 | 93 | 45 | 326 | 163 |
20 | 201 | 100 | 46 | 326 | 163 |
21 | 201 | 100 | 48 | 347 | 174 |
22 | 215 | 107 | 50 | 347 | 174 |
