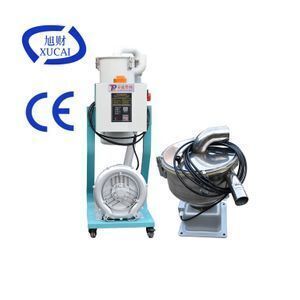

Vacuum auto feeder plastic autoloader plastic hopper auto loader for injection molding machine

Supplier: Guangzhou Xucai Environmental Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Zongben Pan
Price: $680.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Plywood case.;	Place of Origin:	Guangdong China;
Weight:	53kg;	Condition:	New;
Feature:	Reduce Labor Intensity;	Alarm:	Lack;
Warranty:	1 Year;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Convey materials;
Motor:	Induction/1.1kw/1.5HP;	Power(W):	1100w;
Voltage:	220-440v,50/60Hz,3 phase(customized made);	Security Setting:	Overload protective;
Port:	Guangzhou/Shenzhen;	Supply Ability:	100 Set/Sets per Month;
Control:	Microcomputer;	Application:	Loading granules;
Dimension(LWH):	55x35x100cm;	Name:	Automatic feeder machine/vacuum auto loader;
Voltage:	380v,50Hz,3 phase;	Used for:	Molding Injection Machine;
Certification:	ISO CE;	Brand Name:	XUCAI;
Operation:	Fully automatic;	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Usage:	Plastic Ganules Conveying Loading Machine;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Cash;

Product Description

Vacuum auto loader features:

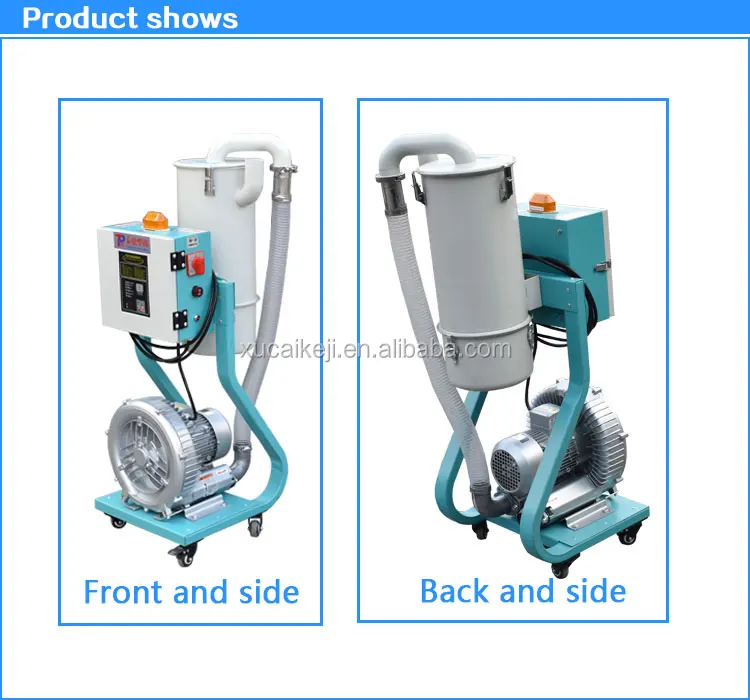

1.Host machine separated from the hopper, easy and safe to operate;

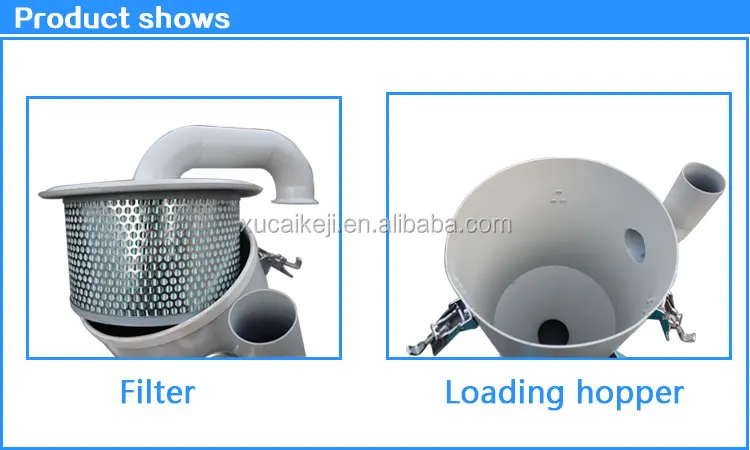

2.Independent filter make it easier for cleaning;

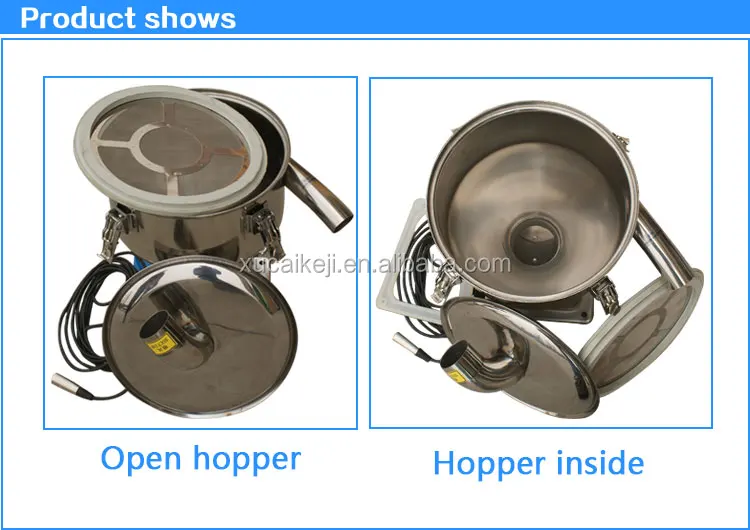

3.Stainless hopper can resist rust;
4.Microcomputer controlled which can realize auto operation;
5.Alarming system in case of overloading and lackage of material;
7.Inductive vacuum pump has low noise but enjoys a long service time;
8.Industrial plastic hopper loader has reverse cleaning function;
9.Can be customized according to your materials and requirements.

Technical parameters:

Model	Motor		Voltage type	Material feeding capacity (kg/h)	Suction Lift(M)	Storage Tank Volume (L)	Static Air Pressure(MAX)	Weight (kg)
Model	Type	Motor Power (kw)	Voltage type	Material feeding capacity (kg/h)	Suction Lift(M)	Storage Tank Volume (L)	Static Air Pressure(MAX)	Weight (kg)
TAL-1.5HP	Induction	1.1	220-380v 50/60HZ,3Φ	350	5	7.5	2100mm/HZO	53
TAL-3HP	Induction	2.2	220-380v 50/60HZ,3Φ	450	6	12	2900mm/HZO	74
TAL-5HP	Induction	4	220-380v 50/60HZ,3Φ	550	6	25	3000mm/HZO	100
TAL-7.5HP	Induction	5.5	220-380v 50/60HZ,3Φ	800	8	40	4000mm/HZO	147
