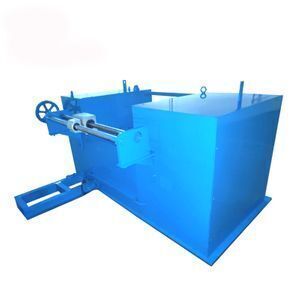

Spool take up machine/spooler
-
Supplier: Shijiazhuang Tops Hardware Manufacturing Co., Ltd. -
Region: Hebei, China -
Contact: Mr Kevin Zhao -
Price: $1500.00 /set -
Min. Order: 1 set
Product details
| Application: | used for steel wire take up; | Condition: | New; |
| Take up spool: | metal spool; | Production Capacity: | 200-1000kg/hour; |
| Supply Ability: | 10 Set/Sets per Month; | Applicable Industries: | Building Material Shops; |
| Warranty: | 1 Year; | Certification: | BV; |
| Brand Name: | TOPS; | Dimension(L*W*H): | 1000X800X700MM; |
| Mian market: | Middle; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Takeup spool size: | 300/400/700/860; | Coil weight: | 100-1000 Kg; |
| Wire material: | Carbon Steel Wire; | Max. take-up speed: | 13M/s; |
| Finished wire function: | Nail; | Voltage: | 380V/50HZ; |
| Wire diameter range: | 0.8mm-3.2mm; | Control type: | electrical cabinet; |
| Packaging Detail: | no packng/wooden case packing; | Product name: | Spool take up machine/spooler; |
| Weight: | 400-800KGS; | Payment Terms: | L/C,T/T,Western Union; |
| Power(W): | 7.5-18.5KW; | Port: | Tianjin port; |

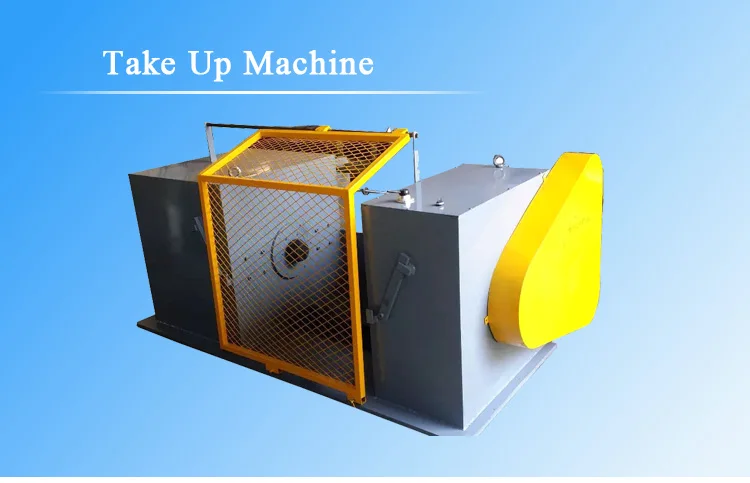

Spool take up machine/spooler

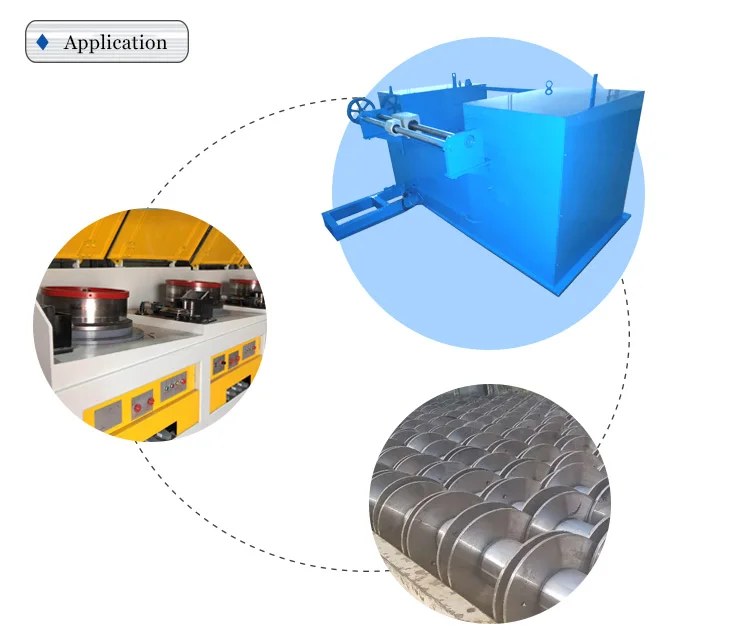

Metal Spool Take Up is used for carbon steel wire take up behind the straight line wire drawing machine.
| Winding Wire Diameter | 0.8mm - 5.0mm |
| Wire Load Weight | 500kg - 1000kg |
| Motor Power | 7.5kw - 18.5kw |
| Voltage | 380V/50HZ |
