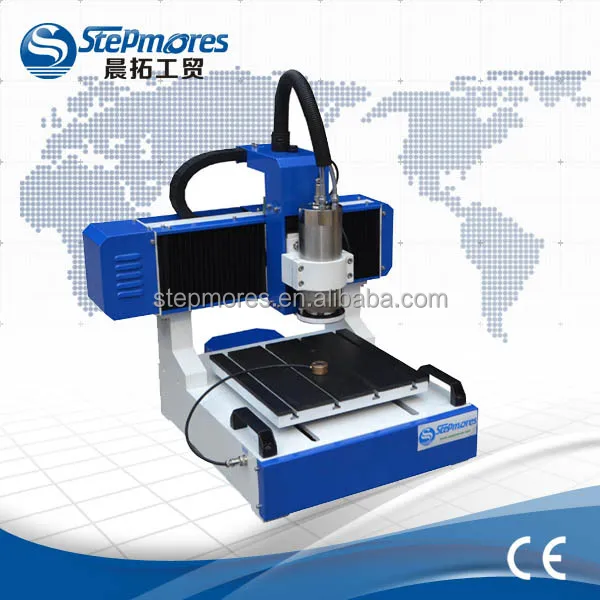

SM-3030M 1500w mini cnc router 3d metal cutting machine
- 1000.00 set
| Milling Cutter Diameter: | 3.175-6mm; | Weight: | 100kg; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,ESCROW/PAYPAL; | Certification: | CE, ISO; |
| Supply Ability: | 50 Set/Sets per Month metal cutting machine; | Warranty: | one year; |
| Delivery Detail: | 10days after payment; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Main Axle Rotational Speed: | 0-24,000rpm; | Port: | Qingdao/Tianjin/Shanghai; |
| engraving size: | 300*300mm; | Engraving Speed: | 0-4000mm/min; |
| Compatible Software: | Type3/Artcam/Ucancam, etc; | Model Number: | SM-3030M; |
| Packaging Detail: | metal cutting machine standard exporting plywood case; | Driver Type: | Stepper driver; |
| motor: | stepper motor; | Condition: | New; |
| Place of Origin: | Shandong China; | Feeding height: | 70mm; |
| Dimensions: | 0.74m*0.76m*0.82m; | Feeding Height: | 70mm; |
| control system: | mach3 USB port; | Spindle: | 1.5kw water cooling spindle; |
| Rated Power: | 2000w; | Structure: | Aluminum casting structure; |
| Application: | Aluminum sheet, brass, steel, etc; | table: | Aluminum profile; |
| Brand Name: | Stepmores; | Working precision: | 0.05mm; |
metal cutting machine
Wide range of application:
Such as seal, packing, scutcheon and pane making, decorating, art and craft,
architecture model, souvenir, badge, electric circuitry and carpentry field.
Suitable for Materials:
Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet,
wooden sheet, scagliola, PCB Aluminum sheet, brass, steel, etc.
Features:
Aluminium casting whole body won't transform for long use. Table move design
make machine more precise.
Specifications:
Model | SM-3030M |
X Y Z travel | 300 x 300 x 45 mm |
Feeding height | 70 mm |
Structure | Aluminum casting structure. table moving type |
Movement parts | X and Y Z axis ----1605 ball screw |
X and Y Z is 20mm round rails | |
Motor | stepper motor: X and Y Z ---57BYG76 |
Driver | Stepper driver: brand -leadshine, model: M542 |
Spindle power | 1.5kw water cooling spindle |
Working Speed | 0-4000mm/min |
Control system | mach3 USB port |
Command code | HPGL, G code |
Working precision | 0.05mm |
Repeatability | 0.01 mm |
Power | AC220V±10% / 50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V10, etc |
Tool bits shank | 3.175-6mm |
Parts of 3030 cnc router machine:

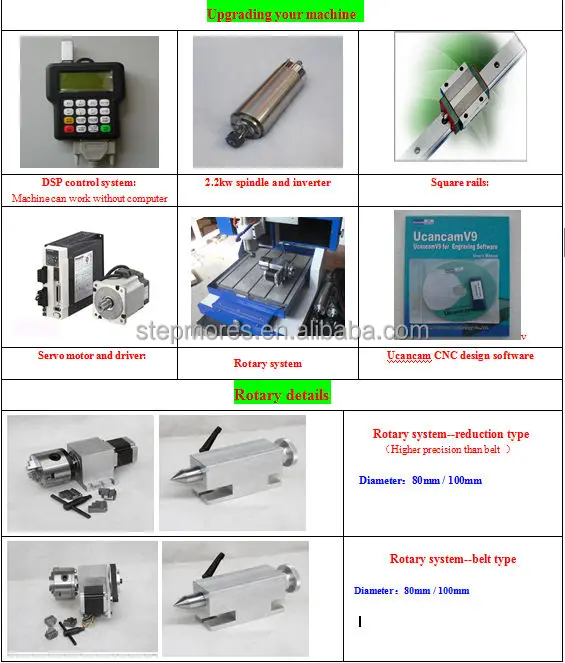

Optional parts:
Advantages:
Samples:
Packing:
CE Certificate:
Service:
Factory:

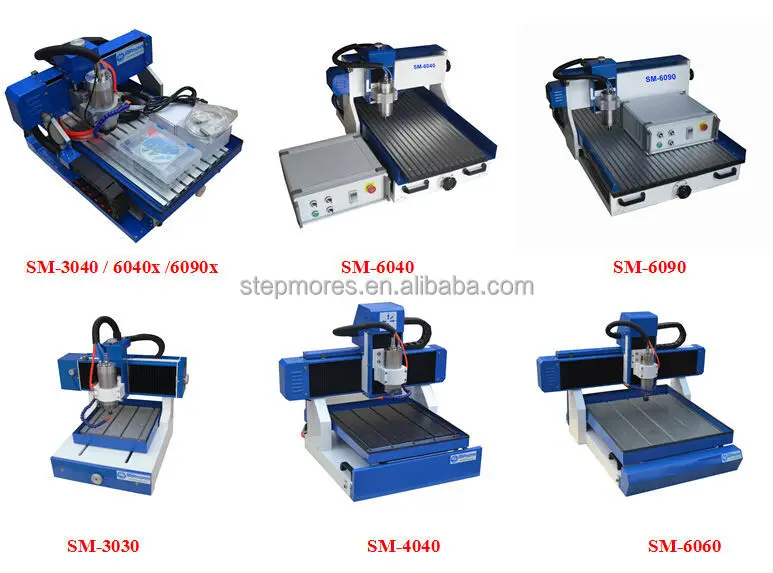

Other mini cnc router:
