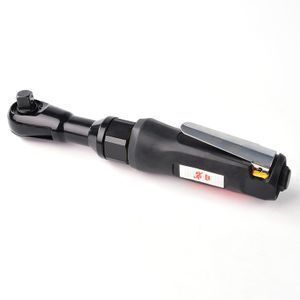

Heavy Duty Torque Air Wrench Drive 1/2 Inch Power Pneumatic Spanner Air Ratchet Wrench

Product details
square drive:1/2 in.;free speed:180 RPM;
MAX. TORQUE:60FT-LB (85N.m);Single package size:30X7X5 cm;
weight:1.22 KGS(2.69LBS);air hose:3/8 in. (inside diameter);
average air consumption:4 SCFM;item number:MELEVEY 50-56B;
Working pressure:90PSI (6.3BAR);air inlet:1/4 in.;
Selling Units:Single item;Single gross weight:2 KG;
capacity bolt size:1/2 in. (13mm);Place of Origin:Shandong China;

Heavy Duty Torque Air Wrench Drive  1/2 Inch Power Pneumatic Spanner Air Ratchet Wrench

Product Description

Item munberMELEVEY 50-56B
Square drive1/2 in.
Capacity bolt size1/2 in. (13mm)
Free speed180 RPM
Max. torque60FT-LB (85N.m)
Average air consumption4 SCFM
Working pressure90PSI (6.3BAR)
Air inlet1/4 in.
Air hose3/8 in. (inside diameter)
Length x height10.83x2.24 in. (275x57mm)
Weight1.22 KGS(2.69LBS)

setting up air line for tool operation
Air Supply
  • Make sure that the air compressor being used for the air tool operation supplies the correct output (CFM).
  • Have the tool in the "off"position when connecting the tool to the air supply.
  • Use normal 90 psi working pressure for best tool performance while running the tool.High pressure and unclean air will shorten the tool life due to faster wear and also may create a hazardous situation.
  • Drain water from air compressor tank daily,as well as any condensation in the air lines.Water in the air line may enter the tool and damage the tool mechanisms at operation.
  • Clean the air inlet filter cartridge weekly. The recommended hook-up procedure can be viewed in the said diagram.
  • Line pressure should be increased accordingly to make up for extra long air hoses (usually over 8 meters). The minimum hose diameter should be 1/4 in. (inner diameter) and the fittings should have the same inside dimensions. But usually a 3/8 in. I.D. air hose is recommended for air supply to get the best function of air tool operation.
  • Use proper hoses and fittings. We do not suggest connecting quick change couplings directly to the tool since they may cause failure due to vibration. Instead, add a leader hose and connect coupling between air supply and hose whip.
  • Check hoses for wear before individual use. Make certain that all connections are in security.

Important Notice

  1. working pressure refers to the air line pressure set to tool when tool is under working conditions (i.e. the tool has been started). It does NOT refer to the air pressure from air compressor.
  2. An air hose (3/8" x 50 ft. air hose is the most common one in stores) may cause up to 15 PSI drop in pressure from the air compressor to the tool, so you may need to set the output air pressure of compressor higher to maintain the required pressure at the tool.
  3. An individual air tool has its specification of air consumption (CFM). Check the specifications of your compressor to be that it can support both minimum CFM (cubic feet per minute) and PSI (pounds per square inch) required.
Feedback

Packaging & Shipping

Company Information
 Jining Mingyang Machinery Equipment Co., Ltd.

Jining Mingyang Machinery Equipment Co., Ltd. was established in 2007, It's located in Jining, Shandong Province, China, where Confucius was born.

We has always been Mingyang's belief that advanced world class equipment is the foundation for world class quality. The company possess 6 fully automated metal hardening system from AICHELIN (Austria), 1 automated powder coating line with auto cleaning capalilities, over 100 CNC machines that have vertical and horizontal machining capabilities, 3 coordinate measuring instruments from Carl Zeissas (Germany) well as many other advanced monitoring and testing equipment.

These advance production equipment are the foundation of world class quality products. MELEVEY, a high-end brand of the company, has been designated to be purchased by the Chinese army. Now MELEVEY products have been distributed in more than 20 countries and regions around the world.

MELEVEY production line is different from other production lines. It has the most advanced production equipment in the industry. This production line is developed and manufactured in Austria, Europe. All operations are automatically controlled by computers. The workshop is an unmanned workshop. Only one person is needed in the control room. These advanced equipment plays a decisive role in MELEVEY products. All the oil we use is from the United States Houghton quenching oil.

Jining Mingyang Machinery Equipment Co., Ltd. and employees make the solemn commitment as the following four core values is basis of all works:

Achieved:Dedicated to the user's satisfaction and success.

Innovation:Pursue reliability and efficiency of products;concentrate on innovation which has good effect on customers and companies.

Accurate and Realistic:Base on factual decision and product tacking management.

Integrity an Reliable:Build confidence for users to products.
FAQ

Q1. Is customized products accepted?

A1: Yes,customized products is accepted. We can do OEM.



Q2. What’s the payment method?
A2: We accept T/T.



Q3. What quality level is your tool ?
A3: We have pretty wide range, most of our tools are automotive or industrial quality.



Q4. Is there any discount price can be offered?
A4: Depending on the order q’ty, for more q’ty we can offer some discount for the tool.



Q5. Are there samples available before orders?
A5: Yes,we can sell samples to you.



Q6. What’s your main market?
A6: We export to all over the world, and now our main markets are Asia, and Africa.
