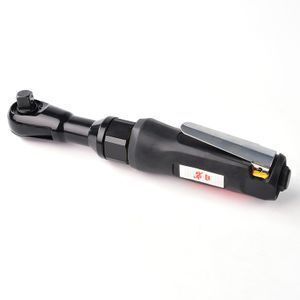

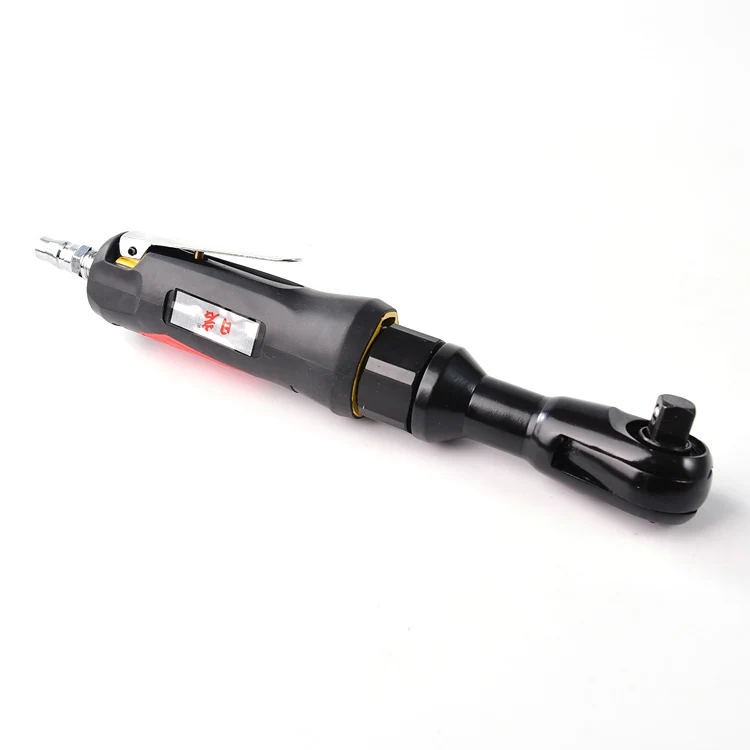

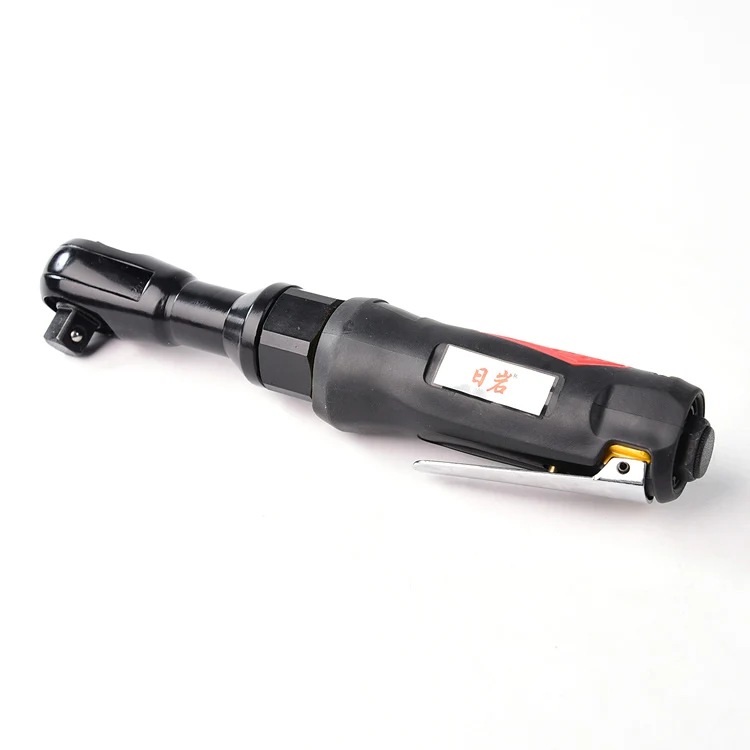

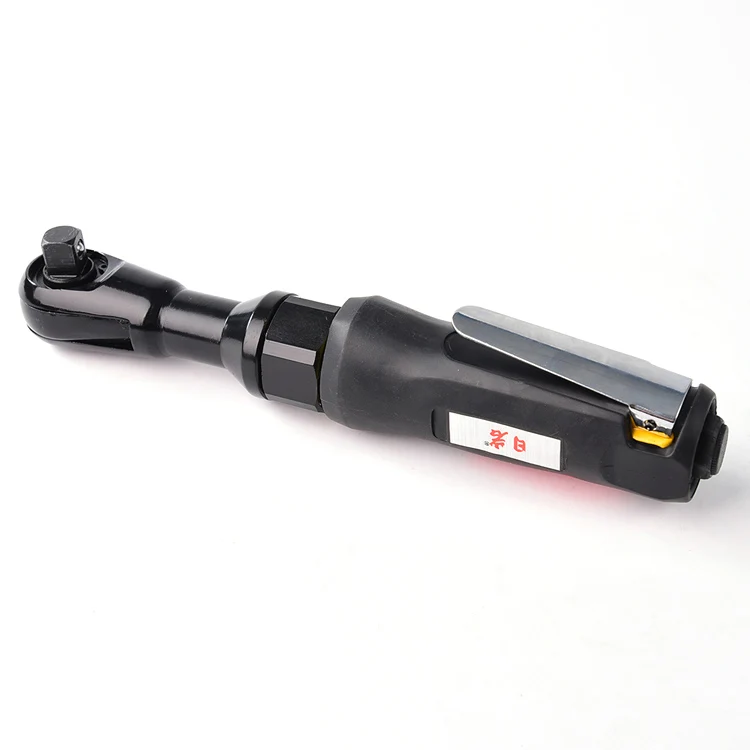

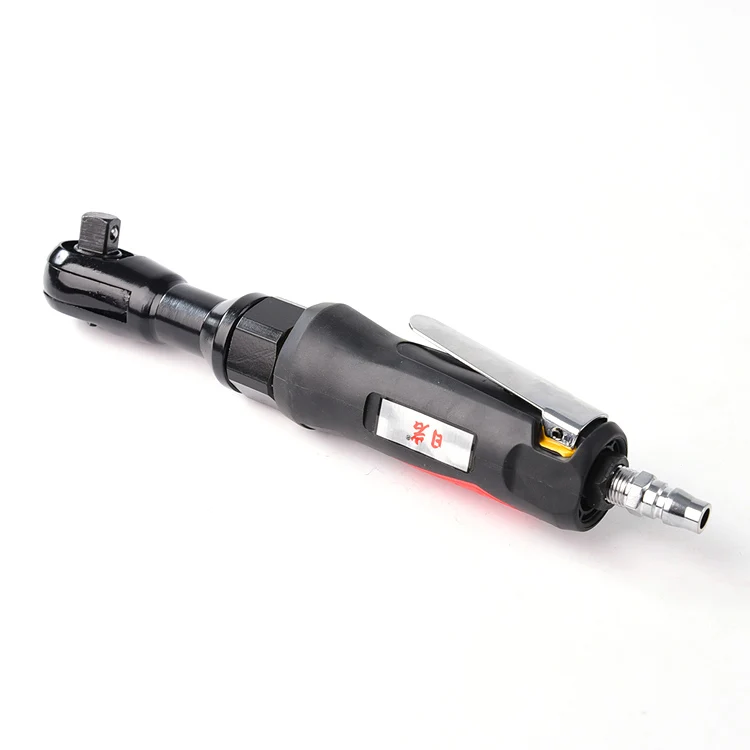

1/2 air ratchet impact torque wrench Pneumatic Ratchet Wrench high quality

Product details
average air consumption:4 SCFM;Single package size:30X7X5 cm;
item number:MELEVEY 50-56B;Model Number:MELEVEY 50-56B;
weight:1.22 KGS(2.69LBS);Single gross weight:2 KG;
No-Load Speed:180 RPM;Selling Units:Single item;
MAX. TORQUE:60FT-LB (85N.m);air hose:3/8 in. (inside diameter);
Working pressure:90PSI (6.3BAR);free speed:180 RPM;
capacity bolt size:1/2 in. (13mm);square drive:1/2 in.;
Place of Origin:Shandong China;air inlet:1/4 in.;

1/2 air ratchet impact torque wrench Pneumatic Ratchet Wrench high quality

Product Description

Item munberMELEVEY 50-56B
Square drive1/2 in.
Capacity bolt size1/2 in. (13mm)
Free speed180 RPM
Max. torque60FT-LB (85N.m)
Average air consumption4 SCFM
Working pressure90PSI (6.3BAR)
Air inlet1/4 in.
Air hose3/8 in. (inside diameter)
Length x height10.83x2.24 in. (275x57mm)
Weight1.22 KGS(2.69LBS)

setting up air line for tool operation
Air Supply
  • Make sure that the air compressor being used for the air tool operation supplies the correct output (CFM).
  • Have the tool in the "off"position when connecting the tool to the air supply.
  • Use normal 90 psi working pressure for best tool performance while running the tool.High pressure and unclean air will shorten the tool life due to faster wear and also may create a hazardous situation.
  • Drain water from air compressor tank daily,as well as any condensation in the air lines.Water in the air line may enter the tool and damage the tool mechanisms at operation.
  • Clean the air inlet filter cartridge weekly. The recommended hook-up procedure can be viewed in the said diagram.
  • Line pressure should be increased accordingly to make up for extra long air hoses (usually over 8 meters). The minimum hose diameter should be 1/4 in. (inner diameter) and the fittings should have the same inside dimensions. But usually a 3/8 in. I.D. air hose is recommended for air supply to get the best function of air tool operation.
  • Use proper hoses and fittings. We do not suggest connecting quick change couplings directly to the tool since they may cause failure due to vibration. Instead, add a leader hose and connect coupling between air supply and hose whip.
  • Check hoses for wear before individual use. Make certain that all connections are in security.

Important Notice

  1. working pressure refers to the air line pressure set to tool when tool is under working conditions (i.e. the tool has been started). It does NOT refer to the air pressure from air compressor.
  2. An air hose (3/8" x 50 ft. air hose is the most common one in stores) may cause up to 15 PSI drop in pressure from the air compressor to the tool, so you may need to set the output air pressure of compressor higher to maintain the required pressure at the tool.
  3. An individual air tool has its specification of air consumption (CFM). Check the specifications of your compressor to be that it can support both minimum CFM (cubic feet per minute) and PSI (pounds per square inch) required.
