PV Solar Cable 2.5mm2 / 4mm2 / 6mm2 / 10mm2 / 16mm2 / 25mm2 For Solar Power System
- 0.40 >=100 meters
| Selling Units: | Single item; | Jacket: | XLPE; |
| Insulation Material: | XLPE; | Package Preview: | https://sc01.alicdn.com/kf/HTB167y_c6fguuRjy1zeq6z0KFXaf.jpg_640x640.jpg; |
| Brand Name: | R&X; | Cable spec: | 1x4mm2; |

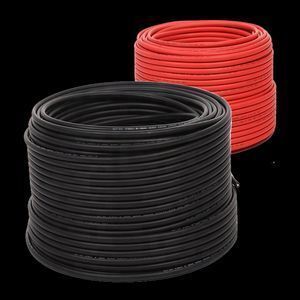

| Color: | Black and red; | Model Number: | 4mm2; |
| Type: | High Voltage; | Certification: | TUV; |
| is_customized: | Yes; | Single gross weight: | 0.08 KG; |
| Single package size: | 10X10X10 cm; | Conductor Material: | Copper; |
| Package Type: | By carton; | Application: | Solar power system; |
| Place of Origin: | Jiangsu China; |
Factory Price Solar PV Cable 2.5 / 4 / 6 / 10 / 16 / 25 / 35 mm2
Sample Purchase online: Click here
Techincal Data
Cross Section (mm²) | Conductor Construction (n/mm) | Conductor Stranded OD.(mm) | Insulation Min.Wall Thickness(mm) | Sheath Min.Wall Thickness(mm) | Cable OD.(mm) | Conductor Max.Resistance AT20°C (Ω/km) | Current Araaing Capacity AT 60°C(A) |
1.5mm² | TXR30/0.25 | 1.58 | 0.67 | 0.73 | 4.90 | 13.3 | 30 |
2.5mm² | TXR50/0.25 | 2.02 | 0.67 | 0.73 | 5.45 | 7.98 | 41 |
4mm² | TXR56/0.30 | 2.60 | 0.67 | 0.73 | 6.10 | 4.95 | 55 |
6mm² | TXR84/0.30 | 3.42 | 0.8 | 0.80 | 7.20 | 3.30 | 70 |
10mm² | TXR142/0.30 | 4.56 | 0.9 | 0.90 | 9.00 | 1.91 | 98 |
16mm² | TXR228/0.30 | 5.60 | 1.00 | 0.90 | 10.20 | 1.21 | 132 |
25mm² | TXR361/0.30 | 6.95 | 1.19 | 0.92 | 12.00 | 0.780 | 176 |
35mm² | TXR276/0.40 | 8.74 | 1.20 | 1.00 | 13.80 | 0.554 | 218 |
Drawing |
| ||||||
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1)Conductor: Tinned annealed copper
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red
3.Marking:TÜV 2 PfG 1169 PV1-F 1×**mm2
4.Application: Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,
UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.
