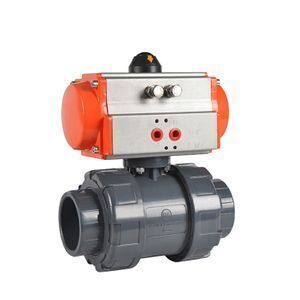

Double Union Quick Connect Air Plastic UPVC Pneumatic Control Ball Valve

Supplier: Dongguan Chuancheng Pneumatic Components Co., Ltd.
Region: Guangdong, China
Contact: Ms Sherry Huang
Price: $37.33 /piece
Min. Order: 1 piece

Click here to contact

Product details

Nominal size:	DN50-DN600;	Material:	Plastic;
Connection type:	Wafer, Flange;	Brand Name:	COVNA;
Port Size:	DN40-1200;	Structure:	Ball;
Power:	Pneumatic;	Connection:	G, NPT, BSP;
Model Number:	HK57 Pneumatic Valve;	Temperature of Media:	Medium Temperature;
Supply Ability:	10000 Piece/Pieces per Month;	Port:	shenzhen/shanghai;
Seal:	EPDM, PTFE, NBR;	Standard:	GB, ANSI;
Working Pressure:	0-1.6 MPa;	Payment Terms:	L/C,T/T,Western Union;
Liquid Temperature:	-5-80℃;	Action:	Single Return or Double Acting;
Packaging Detail:	Each Pneumatic Plastic Ball Valve in a poly bag and single box, then in a master carton or as required.Plastic pallet and wooden pallet is avalibale.;	Pressure:	Medium Pressure;
Application:	General;	Place of Origin:	Guangdong China (Mainland);
Item:	Pneumatic Plastic Ball Valve;	Certificate:	ISO9001:2008,CE,RoHS;
Media:	Air, water, oil, gas, liquids, steam;

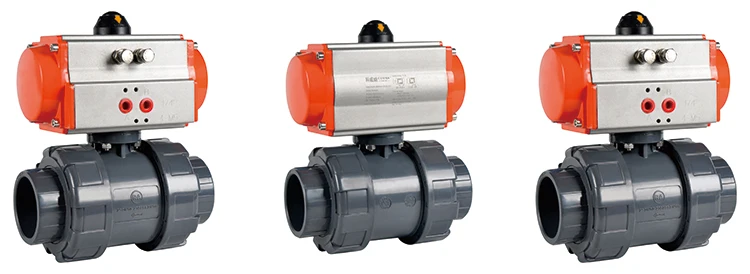

Double Union Quick Connect Air Plastic UPVC Pneumatic Control Ball Valve

Specification

Product Introduction:

Ultra Low Torque, Elegant, Durable, Corrosion Resistance

Full flow, PTFE ball sealing, Low torque

Can use the handle regulating valve seat tightness. Release by the central section is still intact, valve, replaceable

to profice supplementary platform embedded copper nut products. Convenient automatic actuator

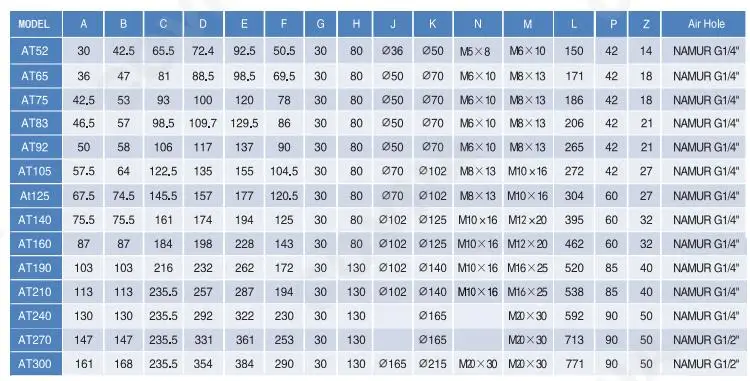

Pneumatic Actuator:

Double acting	Air to open, air to close, air supply failure to keep the current position
Single Acting Normally Close	Air to open, interrrupt air to close, air failure to close
Single Acting Normally Open	Air to close, interrupt air to open, air faliure to open
Optional Acessory	Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, Handle manual, look up valve.

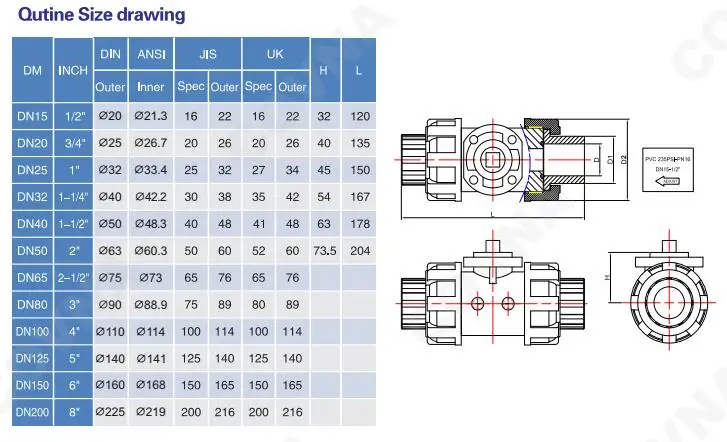

Technical Parameters

Body		Valve components
Nominal Size	DN15-DN400	Seal Material	PTFE: -30℃~180℃
Body Material	Plastic UPVC	Disc Material	Plastic UPVC
Connection Type	Double union	Stem Material	SS304, SS410
Pressure Rating	PN1.0Mpa, PN1.6Mpa	Applicable Medium	Water, Liquids, Gas, Oil, Powder, Steam, Acid-base Corrosive Medium.
Structure Type	Floating ball core	Applicable Medium

Click here for more information!

All can be made to order:

1. Single acting and double acting

2. Material: Cast iron, cast steel, stainless steel 304/316 and plastic

3. 2 way and 3 way ball valve

4. Thread, flange and clamp type ball valve

5. Wafer, lug and flange type butterfly valve

Recommend To You

Sanitary Pneumatic Butterfly Valve PVC Pneumatic Butterfly Valve Cast Iron Pneumatic Butterfly Valve

Flange Pneumatic Ball Valve PVC Pneumatic Ball Valve Pneumatic Ball Valve

Company Information

COVNA founded in 2000, a manufacturer who have 18 years of experience for valves, like solenoid valves, pneumatic valves and motorized valves.. We own professional quality management and process inspection team which ensure the product with good quality. One year warranty and CE, RoHS, ISO9001, TUV certificate. We have large number of stock and most of the products could be delivered to you about 3-5 working days. COVNA professional and fast response sales team can reply your inquiry within 12 hours and offer you the best product consultant service.

“We are confident that our products can get your one hundred percent of trust and help you to achieve success with our great efforts.” - CEO Mr. Bond.

Our Advantage:

1. 18 years of experience of valves

2. Consistent product quality and reduction of defective productivity

3. Significant cost reduction versus competitors

4. 1 year of warranty time

Factory View:
