ARCBRO "Stinger" Metal art cnc Cutting Machine/plasma cutting table

Supplier: Beijing Arcbro Technology Ltd.
Region: Beijing, China
Contact: Mr Tony Leung
Price: $1.01 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE;	Condition:	New;
Torch height controller:	air pressure THC and arc voltage THC;	Voltage:	Single phase,110V or 220V selectable by internal switch;
Shape library:	24 patterns;	Dimension(LWH):	1500*1500mm;
Place of Origin:	Beijing China;	Delivery Detail:	5-10work days;
Item:	Stinger Bench CNC plasma cutting machine;	Effective Cutting Width:	1300,1500mm;
Supply Ability:	1000 Set/Sets per Year;	After-sales Service Provided:	Engineers available to service machinery overseas;
Cutting speed:	0-20000mm/min;	Model Number:	Stinger;
Weight:	200KG;	Software:	Fastcam;
Brand Name:	ARCBRO;	Rated Power:	1000W;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Contouring:	X/Y/Z 3 axes control;
Packaging Detail:	Sea Worthy Package and according to the customer's requirement.;	Port:	BEIJING,TIANJIN,DALIAN;
Color:	Black and yellow;	Warranty:	1 year;
cutting mode:	plasma;	Program input:	1 set of USB port;

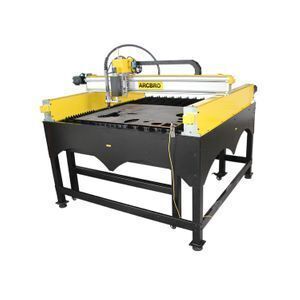

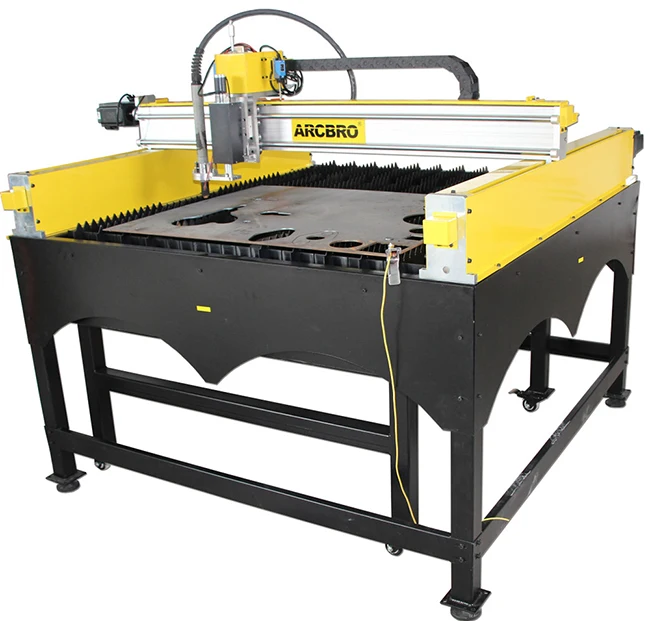

ARCBRO Stinger

High Performance table/bench cnc plasma cutting machine

New Feature:

more details & videos pls visit : www.arcbro.com

Welcome to join in ARCBRO family

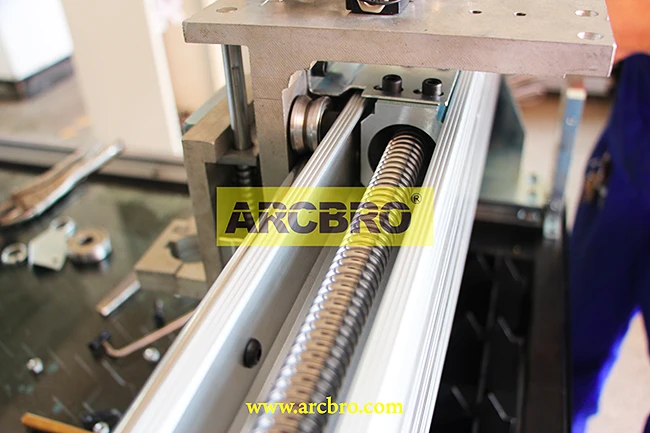

1. ARCBRO High accuracy transmission, Ball screw drive mode, improve cutting precision and operation stable

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

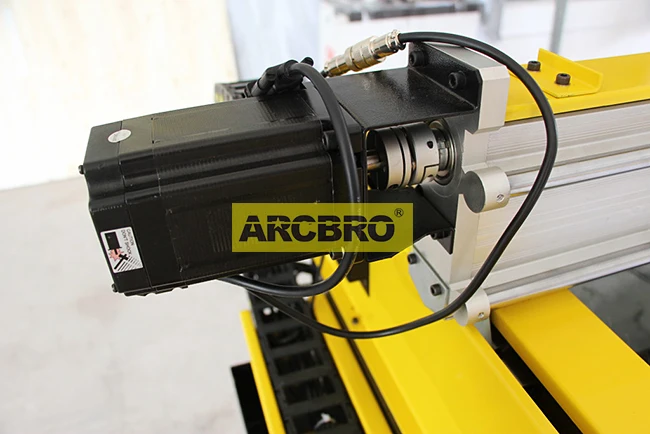

2. Equipped with ENCODER motor, machine is powerful and strength :

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

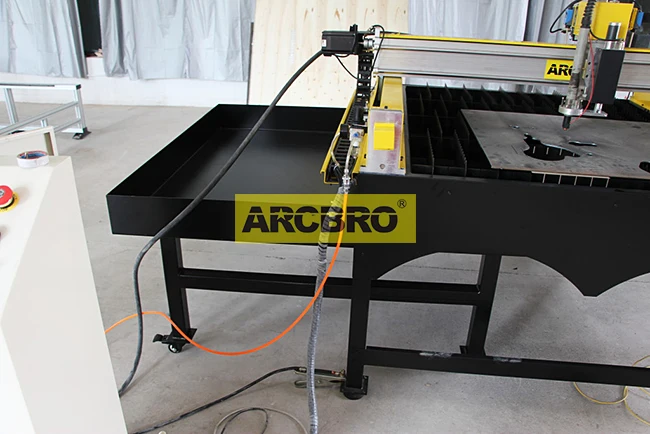

3. Work trash collector can be move and fill water, easy to collect and clean the trash.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

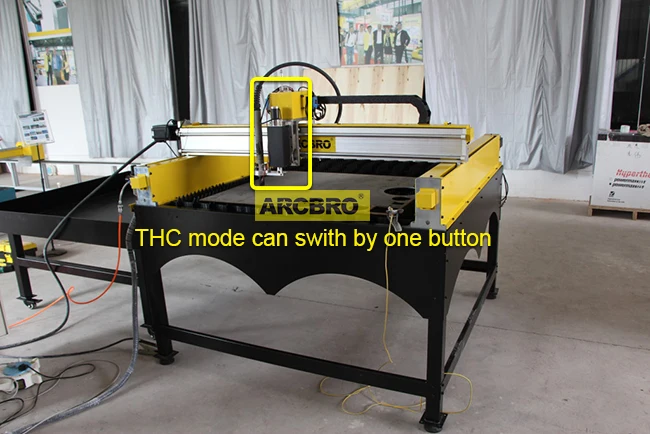

4. THC support both arc voltage and air pressure two functions to control the torch height, one button to switch mode, cut thin sheet use air pressure mode, cut thick plate use arc voltage mode.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

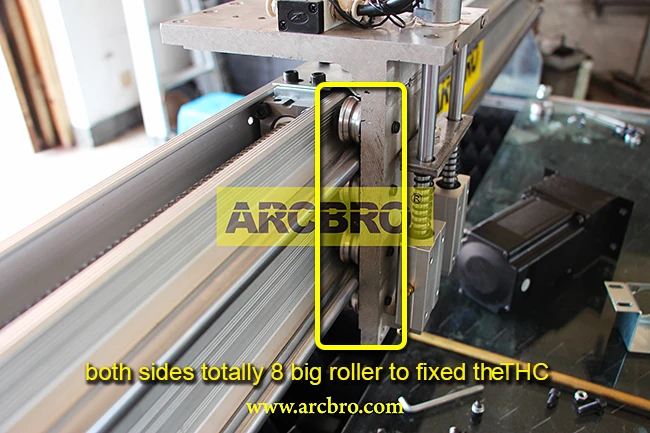

5. 8 big roller fixed the THC, running more stable and smooth.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

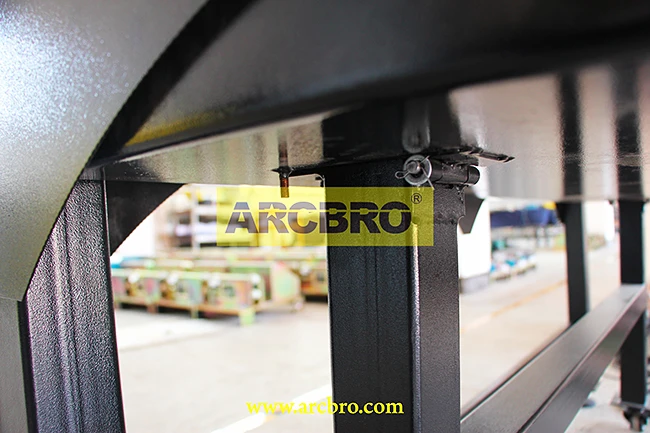

6. The work piece collector can be folded, machine legs is dis-assembly, easy to transportation

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

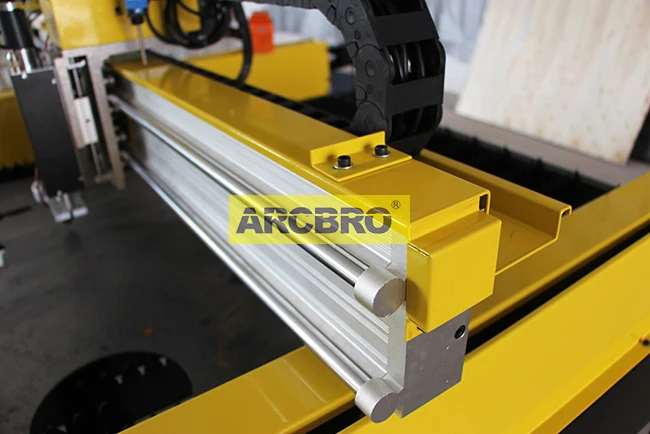

7.Use linear shafting guiding rail, repeat-ability precision is very high

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

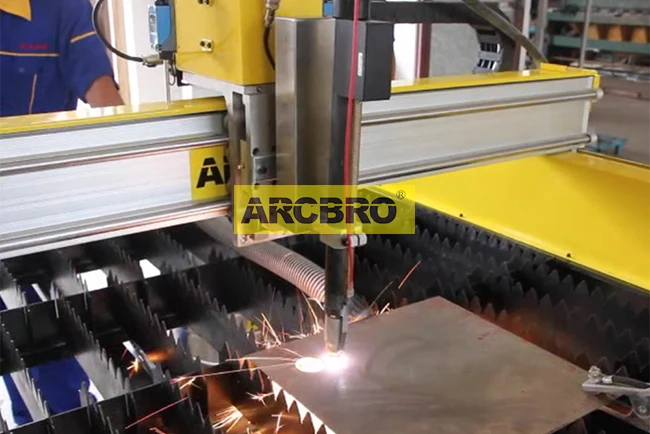

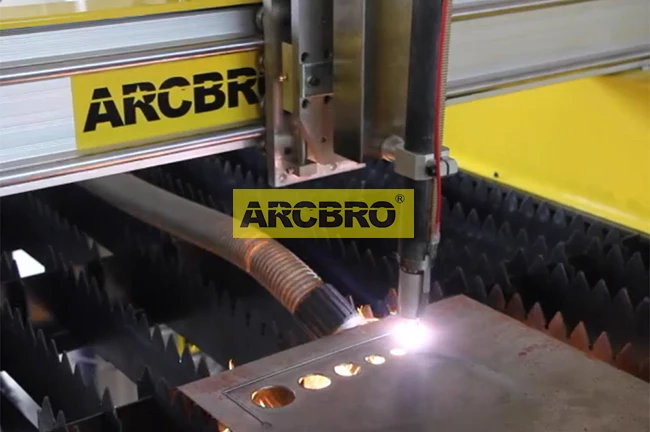

8. Here are the working action photos

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Cutting Parameters :

Cutting Area	1300mm X 1300mm
Machine Size	1500mm X 1500mm
Frequency	50 Hz / 60 Hz
Input Voltage	110 V / 220 V
Cutting Speed	0~20,000mm/mi
Cutting Thickness	0.3mm-30mm (can be customized)
Cutting Program transmission	US
Crossbeam	Aluminum ( 60 X 145 )
Plasma Power Solution	ARCBRO AirCut Hypertherm
Weight	200kg

Company Information

ArcBro Team begins to design the portable CNC Cutter from 2005, it is the earliest manufacturer for this machine in China, cooperating with Chinese space agency. Now, we have 2 factories, more than 30 team members, 41 countries sale and 85 distributors all over the world.

Beijing ArcBro Technology Development Co.

No.218, Xinfang Industrial Park, ChaoYang District, Beijing, China

Tel: 0086 10 6579 8995

Fax: 0086 10 6579 0867

We are ARCBRO

certifications:

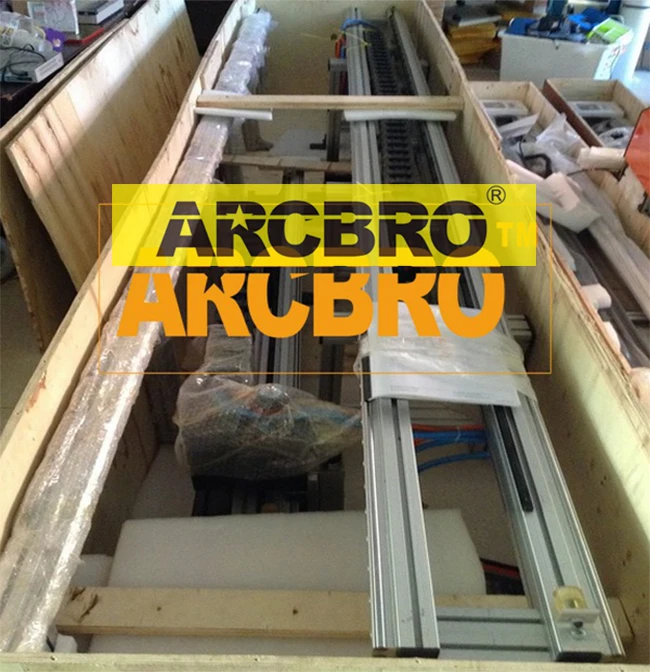

Packaging & Shipping

Sea Worthy Package and according to the customer's requirement.

Our Services

Why ARCBRO

Save your treasurable time.

You alwasy fell there is not enough time and spirit to finish your work plan and extend your business? Well, no one can reinvent the clock. However, you might think someone did that for you while you operating our ARCBRO CNC cuttig machine instead of your traditional mechanical cutting turtles! We got a lot of compimentary feedback from our users that they had more capability to take more and high quality orders of metal fabrication since they are using our durable and reliable CNC cutter. Their low investmet of our product earns them a heavest profit. ARCBRO products make your work simple, fast and high qualified!

What can we do for you?

Cost Saving

With arcbro portable cutting system, you will can cut any scrap which can not be design any more after the bigger gantry machine to save your cost of job. For we also the CNC while the smaller one, anyway we do the same cutting tasks.

Engineering Solution

Our sales and Tech Team will always be here for a fast response of after-sale service! We are righ here ready to help any customer and distributor to design the cutting figure, if the customer need help ,we also can help dealer to train their cutomers.

FAQ

Q: How to buy ARCBRO CNC cutter?

A: We have 85 distributors all over the world, you can order machines from them. If there is no distributors in your city, pls be assured that you can order from our website www.arcbro.com with a competitive price.

Q: Sounds great, how to apply to become your distributor?

A: Welcome to join ARCBRO family. Sending email or calling us directly. You can find the contacts on the bottom.

Q: I want to see the testing video, pls send it to me.

A: To make it eaiser for customers to see the video, we upload the testing video on Youtube, just search "Arcbro" on Youtube, you can find what you want.

Q: How is your support?

A: We support our machines with unlimited phone and web support for the life of the machine. In the provided instructions CD there are guids to help you in installing and operating your machine. If any questions or concerns arise during assembly or operation of the machine please feel free to contact our technical support staff.
