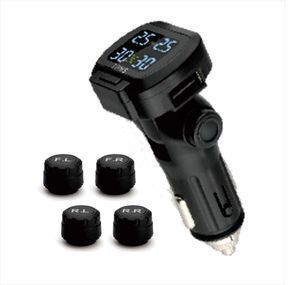

SUNWAYI TPCMU-E Car Tire Pressure Monitoring System TPMS Wireless RF Moving Cigarette Lighter Display USB Charging DIY

Supplier: Shenzhen Sunway Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms skyler han
Price: $35.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

transmit power:	< 10dBm;	IP:	IP67;
Single gross weight:	0.5 KG;	Delivery Detail:	0 days after payment;
Frequency:	433.92MHz;	Battery life:	2 years;
Temperature:	-30 to +80 degree Celsius;	Voltage:	2.1 - 3.6 V;
Warning:	Leak, Low/High Pressure, High Temperature;	Pressure:	1.5 degree plus/minus;
Place of Origin:	Guangdong China (Mainland);	USB charging:	support 1A;
Single package size:	15X12X7.5 cm;	Selling Units:	Single item;
Moving displayer:	support;	Certification:	IP67 EMC RF FFU;
Package Preview:	https://sc01.alicdn.com/kf/HTB1bre3nTCWBKNjSZFtq6yC3FXau.jpg_640x640.jpg;	Brand Name:	SUNWAYI;
Warranty:	12 Months;	Data Display:	the same displayer;
Monitor:	real time;	Max Pressure:	94 PSI;
Package Type:	single neutral color box for each set;

SUNWAYI TPCMU-E Car Tire Pressure Monitoring System TPMS Wireless RF Moving Cigarette Lighter Display USB Charging DIY

Product Features:

Item	Parameter	Remark
Frequency	433.92 mHz
Voltage	2.1-3.6 V
Working Pressure	0-94 PSI
Battery Life	24 months
Transmit Power	< 10dBm
IP	IP 67
Sensor Working Temperature	minus 30 - plus 85 degree	Celsuis
Pressure Accuracy	1.5 minus/plus
Sensor Dimension	21mm(Diameter)*17mm(Hight)

Product specification :

Cigarette Lighter TPMS W/ External Senors:
1. Cigarette Displayer can be Moved for best view angle.
2. With USB Charging Port for Mobile Phone Charging.
3. Tires’ Pressure data Shew on the Same LCD Displayer.
4. Real-time monitoring the pressure & temperature.
5. Warning while low and high air pressure / high temperature.
6. Set up sensor: learn new sensor ID code when replace sensor.
7. Monitoring Range: 0~51Psi (0~3.5 Bar).
8. Suitable for four wheel car models(even some business auto).

Dimension: 21mm(diameter)*17mm(high)
Weight: 8.0g
Battery life: 24 months
Working pressure: 0~99 Psi
Transmit Frequency: 433.92 MHz
Working Voltage: 2.1~3.6 V
Transmit power: <10dBm
Pressure accuracy: ±1.5Psi
Temperature accuracy: ±2°C
Working temperature: -30~80°C
IP:IP67
Storage temperature: -35~85°C
