Electric Concrete Vibrator Motor
- 750.00 set
| Phase: | 3-phase and 1-phase; | Package Preview: | https://sc01.alicdn.com/kf/HTB11g32d9WD3KVjSZSg763CxVXak.png_640x640.png; |
| Rated Voltage: | 380v/ 440v /660v etc.; | Speed: | 960-3000 rpm; |
| Output Power: | 0.09-7.5kw; | Single package size: | 50X60X50 cm; |
| Function: | Driving System; | Protection Class: | IP40/IP44/IP54/IP55/IP60orIP68; |
| Usage: | Industrial vibrating screen and table and conveyor; | Place of Origin: | Henan China; |
| Single gross weight: | 160 KG; | Selling Units: | Single item; |
| Frequency: | 50/60Hz; | Warranty: | 18 Months; |
| Product name: | Vibration Motor; | Brand Name: | DY; |
| Package Type: | be packed in wooden case or standard export packing; |
Concrete Vibrator Motor
♦ Vibrator Motor Using scope:
1.Sieving equipment: All kinds of Vibrating screen, Rotary vibrating screen, Linear vibrating screen,Ultrasonic vibrating screen, etc.
2.Conveying equipment: Vibration conveyor, conveyor drying vibration, vibration vertical lifting machine, etc.
3.Feeding equipment: Vibratory feeder, vibrating hopper machine, vibration mining machine, vibration filling machine.
4.Other equipment :vibration fluidized bed, vibration platform.
♦ Main Technical Parameter:
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.5-2 | 1.5 | 3000 | 0.12 | 13 |
YZS2.5-2 | 2.5 | 0.22 | 14 | |
YZS3-2 | 3 | 0.25 | 20 | |
YZS5-2 | 5 | 0.37 | 21 | |
YZS10-2 | 10 | 0.75 | 31 | |
YZS15-2 | 15 | 1.1 | 47 | |
YZS20-2 | 20 | 1.5 | 68 | |
YZS30-2 | 30 | 2.2 | 107 | |
YZS50-2 | 50 | 3.7 | 210 |
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.0-4 | 1 | 1460 | 0.09 | 13 |
YZS1.5-4 | 1.5 | 0.12 | 16 | |
YZS3-4 | 3 | 0.18 | 22 | |
YZS5-4 | 5 | 0.25 | 32 | |
YZS10-4 | 10 | 0.55 | 49 | |
YZS15-4 | 15 | 0.75 | 76 | |
YZS20-4 | 20 | 1.1 | 82 | |
YZS30-4 | 30 | 1.5 | 117 | |
YZS50-4 | 50 | 2.2 | 219 | |
YZS75-4 | 75 | 3.7 | 360 |
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.5-6 | 1.5 | 980 | 0.12 | 22 |
YZS3-6 | 3 | 0.25 | 35 | |
YZS5-6 | 5 | 0.37 | 50 | |
YZS10-6 | 10 | 0.75 | 82 | |
YZS15-6 | 15 | 1.1 | 125 | |
YZS20-6 | 20 | 1.5 | 130 | |
YZS30-6 | 30 | 2.2 | 190 | |
YZS40-6 | 40 | 3 | 190 | |
YZS50-6 | 50 | 3.7 | 300 | |
YZS75-6 | 75 | 5.5 | 400 | |
YZS100-6 | 100 | 7.5 | 420 | |
YZS125-6 | 125 | 8.5 | 468 |

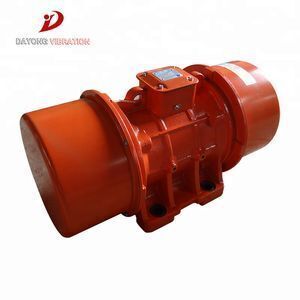

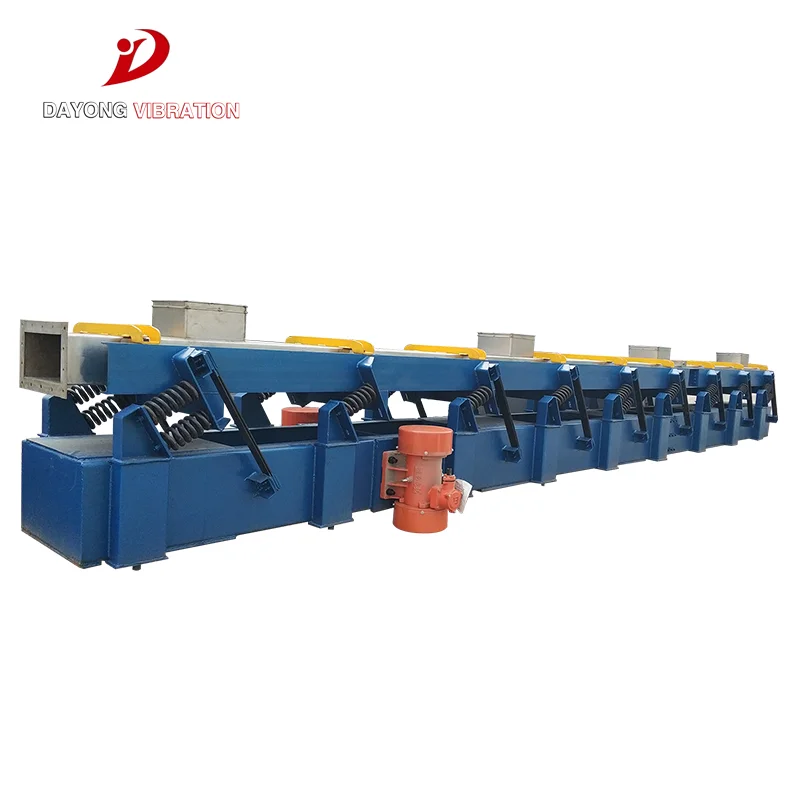

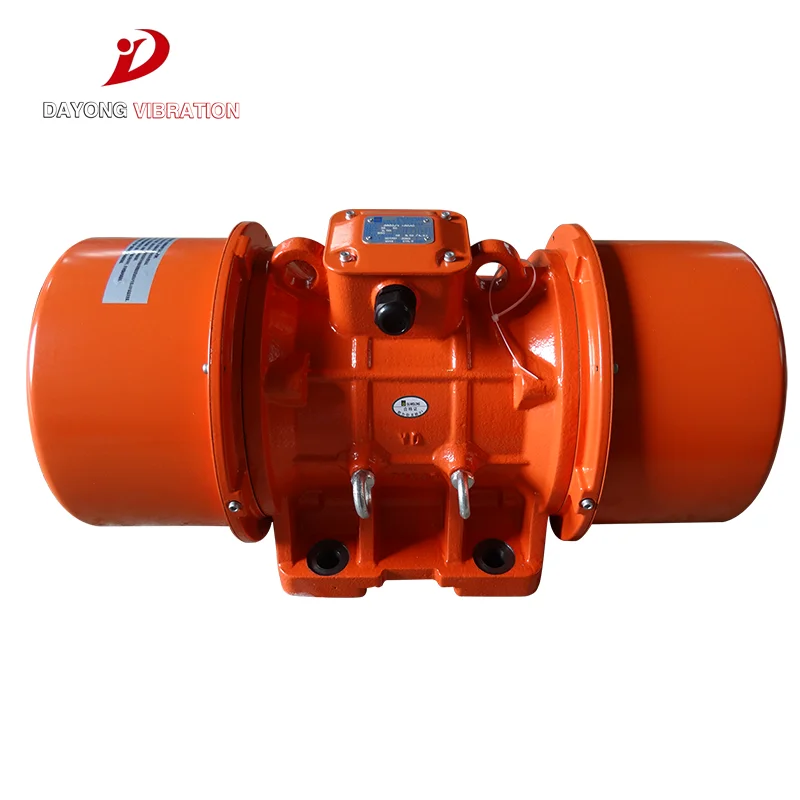

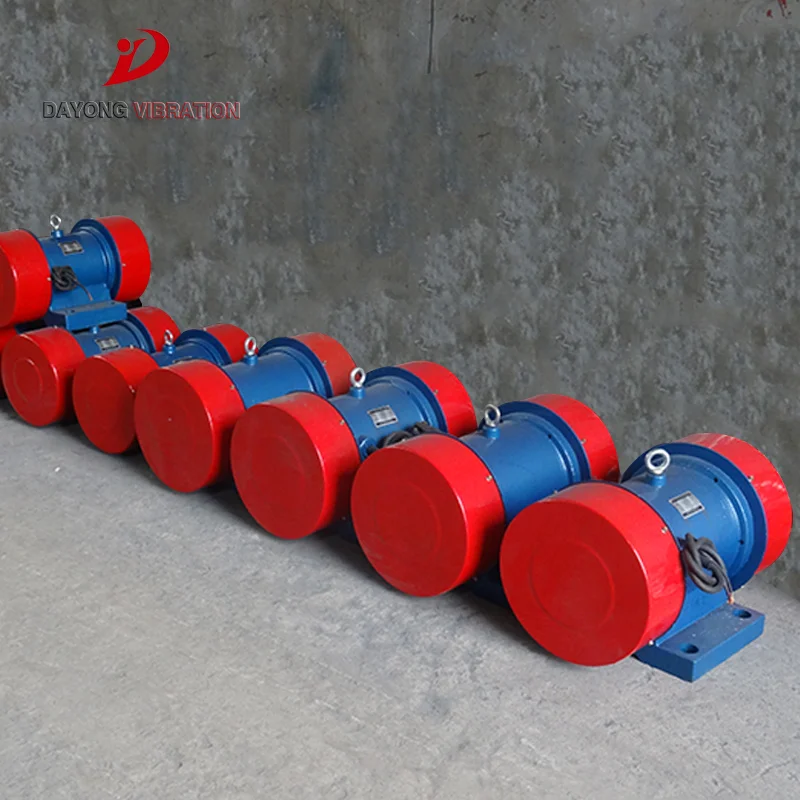

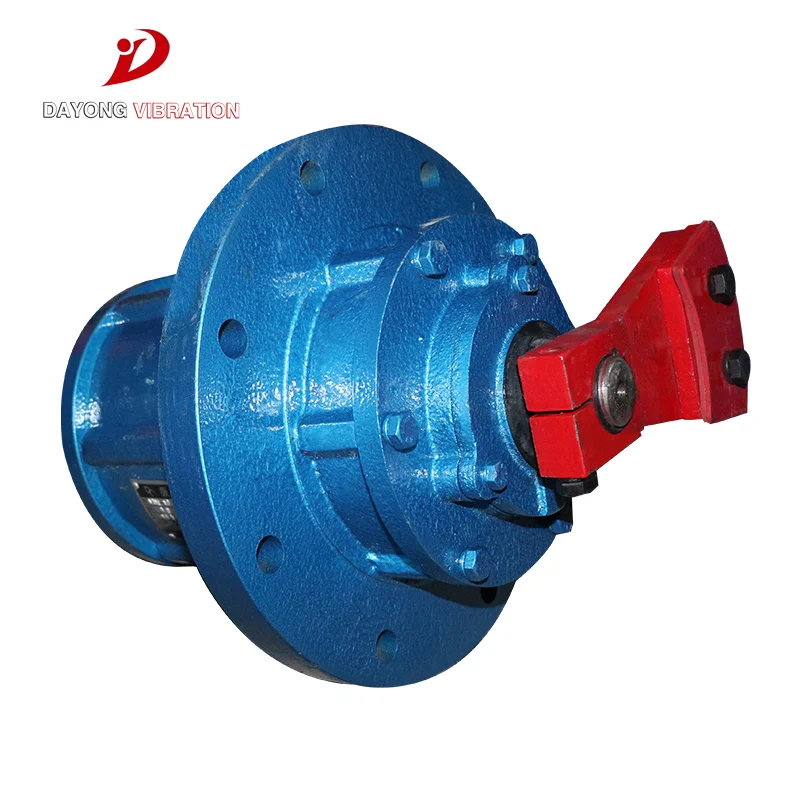

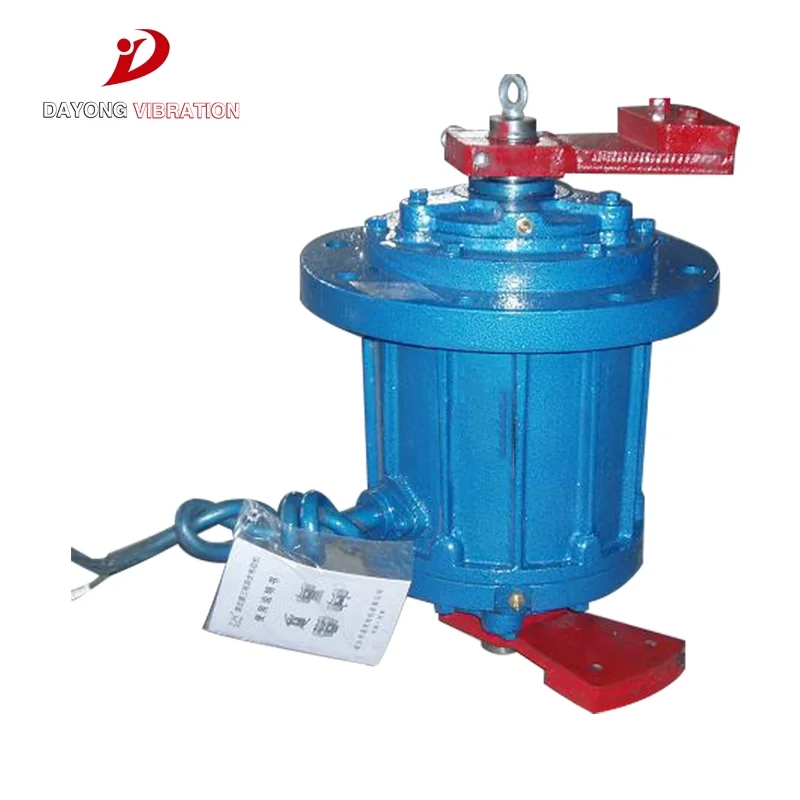

♦ Vibrator motor pictures:
♥Our operation principle is mutual reciprocity and mutual benefit, Intimate service!
