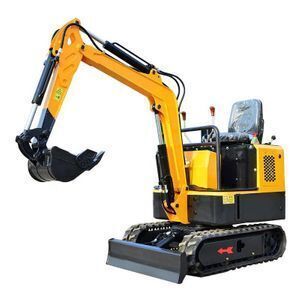

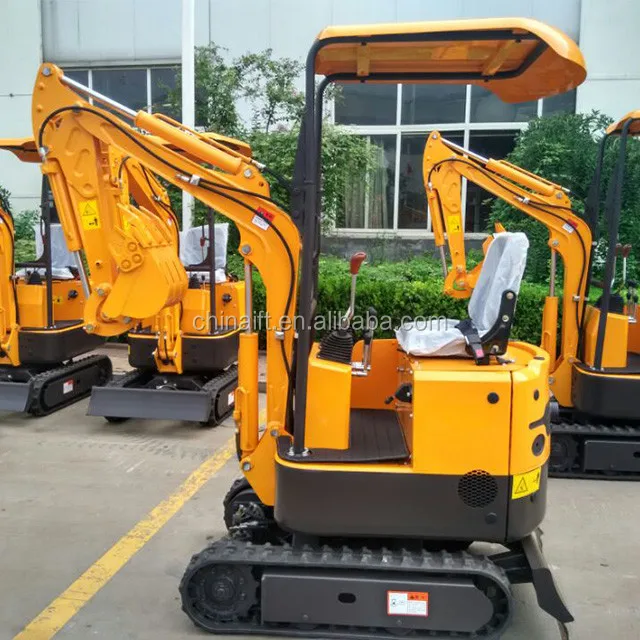

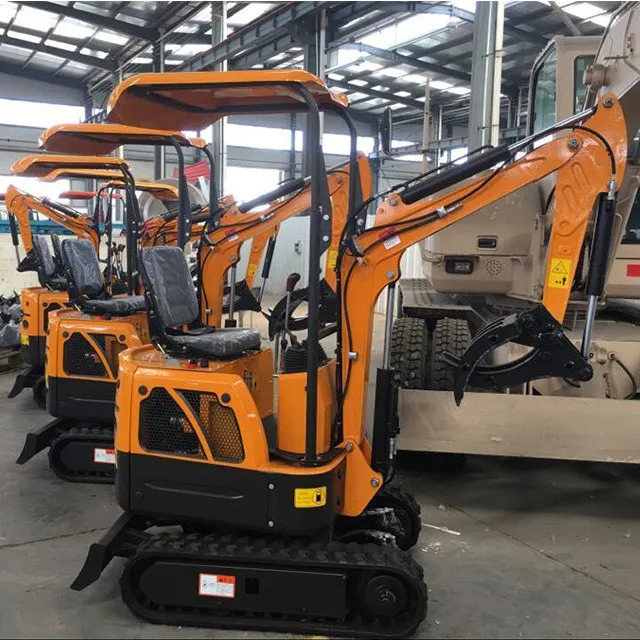

0.8 ton 1 ton hydraulic crawler small digger mini excavator for sale

Supplier: Shandong Infront Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Tony Yang
Price: $4400.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Engine:	EV80;	Hydraulic Cylinder Brand:	Bosch Rexroth;
Maximum Digging Depth:	1328mm;	Brand Name:	IF;
Cylinders:	2;	Maximum Digging Height:	2443mm;
Hydraulic Valve Brand:	Changjiang;	Keywords:	mini excavator;
Place of Origin:	Shandong China;	Bucket capacity:	0.03;
Rated power:	12kw;	Engine Brand:	Chinese;
Moving Type:	Crawler Excavator;	Operating Weight:	800KG;
Dozer Blade Width:	820mm;	Cooling Type:	Water;
Max Digging Radius:	2612mm;	Payment Terms:	T/T,Western Union,One-touch,trade assurance;
After-sales Service Provided:	Video technical support,Online support;	Packaging Detail:	Standard exported packaging;
Color:	Yellow;	Product name:	Mini crawler excavator;
Location:	China inland;	Hydraulic Pump Brand:	Kawasaki;
Certification:	ISO;	Port:	Qingdao/Shanghai/Tianjin;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Garden and Yourself;	Condition:	New;
Warranty:	1 Year;	Max Torque:	43N.m/rpm;
Supply Ability:	1000 Set/Sets per Month Mini excavator;	Rated Speed:	3000RPM;

0.8 ton 1 ton hydraulic crawler small digger mini excavator for sale

Product Description

8T-1.8T general features:
1. The surface of the cylinder is chrome-plated and more wear-resistant. It adopts imported oil seal and the seal ring does not leak oil. The boom is made of thickened manganese steel, which is more sturdy.
2. Dozer blade, use thickened and raised dozer blade to better support and retain soil. Track and drive wheels are more wear resistant with thicker track tracks.
3. Adopting the science engine, it has the characteristics of more stable and environmentally friendly noise, low fuel consumption of all metal body, rain and sun protection.

Operating weight	800 kg
Bucket capacity	0.025 cbm
Engine	CHANGCHAI
Rated power	8.6 kw /3000r/min
Displacement	0.499L
Bore stroke	92x75
Main pump	CBK-F6.8
Displacement	6.8 ml/r
Swing motor	SJ-TECH
Traveling motor	KERSEN
Travel speed	1.5 km/h
Swing speed	8 rpm
Bucket digging force	9.4 kN
Bucket rod digging force	5.8 kN
MAIN DIMENSIONS
Overall dimension( LxWxH)	1877x896x1990 mm
a. Wheel distance	910 mm
b. Total length of track	1230mm
c. Platform ground clearance	380 mm
d. Platform back turning radius	784 mm
e. Chassis width	896 mm
f. Track width	180 mm
g. Chassis ground clearance	320 mm
OPERATING RANGE
A. Max. Digging radius on ground	2930 mm
B. Max. Digging radius	2850 mm
C. Max. Digging depth	1650 mm
D. Max. Digging height	2610 mm
E. Max. Dumping height	1850 mm
F. Max. Vertical digging depth	1375 mm
G. Min. Rotation radius	1330 mm
H. Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255 mm

Directly contact Miss. Yilina Wang for:LOWEST Price,Weight,Stock,Delivery time,or more productions Product Catalog......
Skype:jkmachinery807 QQ:3149453337
Mobile/Whats up: +0086 135 1867 7059
WeChat: 86 135 1867 7059
Email: sales@ chinaift.com

Packaging & Shipping
