120v welder

Supplier: Shenzhen Tie Xi Electric Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Wanhua Ye
Price: $38.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

No-load voltage:	58;	Warranty:	2 Years;
Selling Units:	Single item;	Usage:	Welding;
Power(W):	9.6;	Motor Type:	DC MOTOR;
Color:	Orange,OEM;	After-sales Service Provided:	No overseas service provided;
Package Type:	Body Size:375245155mm Packing Size:415180320mm Packing Weight:7kg inverter welding machine 110v;	Weight:	4.5KG;
Single package size:	10X10X10 cm;	Single gross weight:	7 KG;
Name:	Portable Inverter 200a Welder 110v Welding Machine;	Type:	Inverter Welding Machine;
Pulse Frequency:	50/60 HZ;	Pilot Arc Current:	20amps-200A;
Condition:	New;	Protection class:	1P21S;
Place of Origin:	Guangdong China;	Rated Duty Cycle:	95;
Brand Name:	TIEXI;	Power factor:	0.73;
Function:	Welding;	Arc Current:	20-200A;
Package:	Carton Package;	Voltage:	110V;
Certification:	CE CCC;	Applied welding rod:	1.6~3.2mm;
Dimensions:	415MM180MM320MM;

Introduction

Product Description

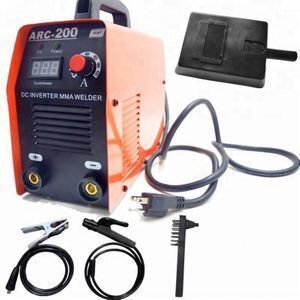

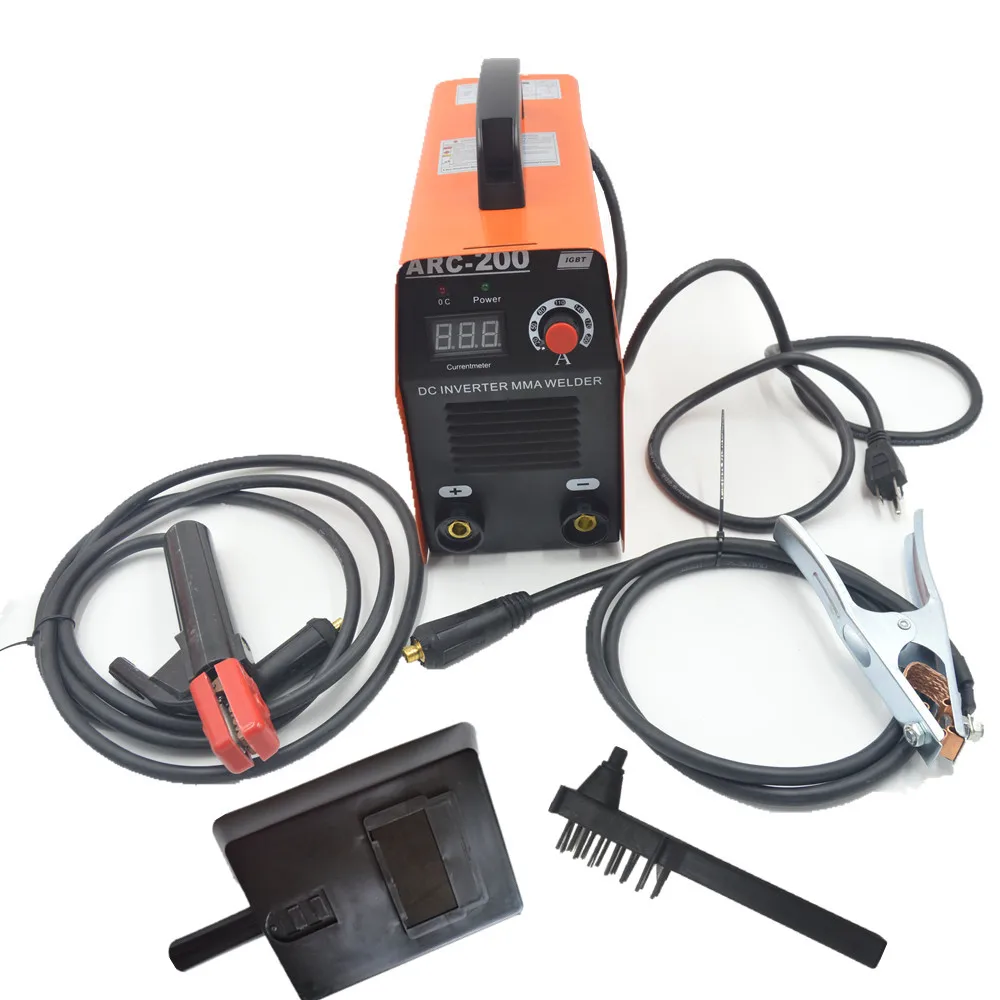

ARC MMA Welder Small Current Single Phase 110v Inverter Welding Machine Portable

Single PC board,IGBT tube inverter 110V
High frequency(40KHZ-100KHZ),improve the efficiency of the whole machine,save energy.
Anti static,thermostatic,fan cooled
pretty appearance,light weight,stable.Compactable,protable,high efficiency and energy saving.
stable arc welding,deep weld pool and good welding appearance.
Adopt all kinds of acidic ,alkaline welding rod.Have the advantage of easily start arc,stable current,perfect molding.
Especially suitable for welding the carbon steel,stainless steel,low alloy steel and other metals.
Use for altitude work,fieldwork,indoor fitment.
high rated duty and have better function for push compensation.
Adjustable hot striking arc current.
ARC MMA Welder Small Current Single Phase 110v Inverter Welding Machine Portable

Model	TX-200
Input voltage(V)	1PH AC110V±15%
Input power(KVA)	8
Input current (A)	36
Rated output	28V/110V
Output current(A)	20-200A
No-load voltage(V)	68±5
Duty Cycle%(40°C 10min)(A/V)	200/28 60%
Duty Cycle%(40°C 10min)(A/V)	200/26.2 100%
Efficiency(%)	80
Protection grade	IP21
Insulation grade	F
Net Weight(KG)	5.4
Gross Weight(KG)	6.8
Dimension of machine(mm)	300130210
Dimension of package(mm)	360150280

Our Services

Main Market:

North America, South America , Southeast Asia, Middle East, Africa

Supply:

1. OEM and ODMsevice offered, Machine Color

2. One Year Warranty.

3. Technical Support.

4. CE and CCC certificate

Strict Quality Control:

1.Our quality starts from the elemets. All parts are full new,refusing the used one .Our machine mainboard is made by ourself all the parts was in strictly controling .

2.Our quality controling systems are stopping the defect before packing; So we arrange at least 5 QC stations, In an assembling line ; then every tiny part in the charge of one worker ,even every screws should be marked

3.The scientific production management 6S , prevent the mistakes by human being at the upper limits

4. Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability

Packaging & Shipping

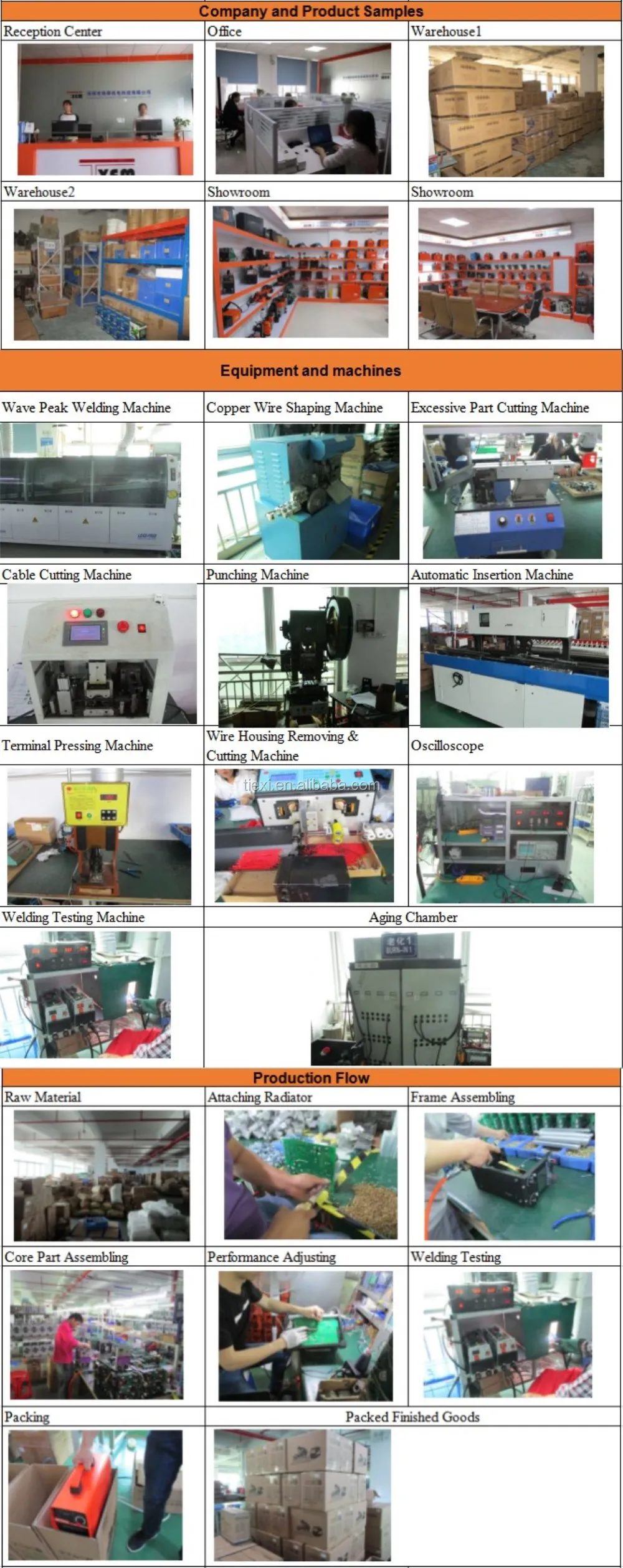

About TXEM

FAQ

1. Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.

2. Q:Payment
A:Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment,L/C, Paypal is fine.Western Union or bank

3. Q:Delivery time
A:The 1000 pcs goods need 10-15 days to be made after receive deposit.

4. Why choose us?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode,capacitor and so on imported components.
c. We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
d. We provide Warranty period of 1 to 2 years for all our items

4. Q: Are you a factory or trading company?
A: We are factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.

5.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.

6.Q:Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
