Rexroth A6VM A6VM28/A6VM55/A6VM80/A6VM107/A6VM160/A6VM200/A6VM250/A6VM355/A6VM500/A6VM1000 hydraulic motor

Supplier: Ningbo Helm Tower Noda Hydraulic Co., Ltd
Region: Zhejiang, China
Contact: Mr David Liu
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Color:	According to customer requirements;	Port:	NINGBO/SHANGHAI;
Brand Name:	Helm tower;	Payment Terms:	L/C,T/T;
Supply Ability:	2000 Set/Sets per Month;	Place of Origin:	CN;ZHE;
Packaging Detail:	Standard export packing.;	Place of Origin:	Ningbo;
Type:	Hydraulic Motors;

1. Product Features:

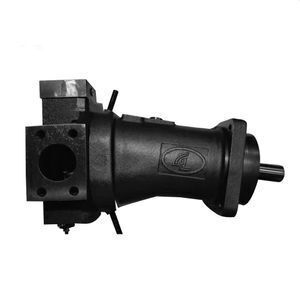

Rexroth A6V hydraulic piston motor

Large control range with hydrostatic transmission
Cost-saving due to the possibility of using smaller pumps
High efficient

With hydraulic transmission, this range of variable displacement motor has wide displacement motor has wide displacement control range . It supports secondary control regulation with various control devices. It offers increased maximum output speed under reduced swivel angle conditions.

Due to the elimincetion of gear shifts, and the possibility of using smaller pumps, the product is cost saving. Meanwhile , it offers high power density, high efficiency, good starting performance, and low moment of interia. The variable displacement motor additionally has high axial loading capacity.

			28	55	80		107	160		225	250		468
Displacement	Vgmax	ml/r	28.1	54.8	80		107	160		225	250		468
	Vgmin	ml/r	8.1	15.8	23		30.8	46		64.8	0		135
Max.Permissible.Swept volome	Qgmax	L/min	133	206	268		321	424		530	590		889
Max.speed(at Qmax)	nmax at Vgmax	r/min	4750	3750	3350		3000	2650		2360	2360		1900
	nmax at Vg	r/min	6250	5000	4500		4000	3500		3100	3100		2500
Torque constants	Max at Vgmax	Nm/MPa	4.463	8.701	12.75		16.97	25.41		35.71	39.79		74.41
	Max at Vgmin	Nm/MPa	1.285	2.511	3.73		4.9	7.35		10.3	11.46		21.47
Max.torque(p=35Mpa)	Mmax at Vgmax	Nm	156	304	446		594	889		1250	1391		2604
	Mmax at Vgmin	Nm	45	8	130		171	257		360	401		751
Max.output power(at 35Mpa and Qmax		KW	78	120	156		187	247		309	335		519
Moment		Kgm2	0.0017	0.0052	0.0109		0.0167	0.0322		0.0532	0.0532		0.025
Weight		kg	18	27		39	52		74	103		103	223

2. Applications:

Our motors are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.

3. Packaging&Shipping:

Packaging

1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.

2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.

Shipping

urgent & small gross weight by air

big gross weight by sea

4. Company Information:

About US
Ningbo Helm Tower Noda Hydraulic Co., Ltd is belong to Ningbo wenkui group.

which is a professional manufacturer for hydraulic motors,pumps,rotary drum cutters, winches and parts,including:
Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..
