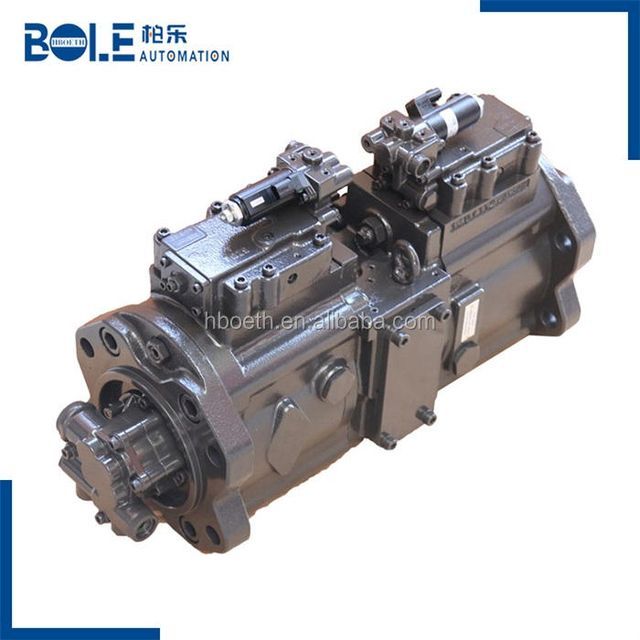

Volvo's new hydraulic motor EC360B high-quality plunger pump K3V180DT Kawasaki professional main pump VOE14616188 is suitable for Volvo EC360B

Supplier: Quanzhou Bole Automation Engineering Co., Ltd.
Region: Fujian, China
Contact: Mr Bin Yan
Price: $1688.00 / 1 - 9 pieces
$1500.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Material:	Carbon steel	Packaging details:	Standard export packaging, or according to customer requirements
application:	Construction machinery	Warranty:	1 year
theory:	Rotary pump	product name:	Kawasaki piston pump
Place of origin:	Other countries	Standard or non-standard:	standard
Sales unit:	Single product	color:	client needs
brand:	Kawasaki	Single piece packaging size:	50X30X25cm
pressure:	high pressure	Gross weight of single piece:	40.000kg
type:	Hydraulic piston pump	structure:	plunger pump

Volvo's new hydraulic motor EC360B high-quality piston pump K3V180DT Kawasaki professional main pump VOE14616188 is suitable for Volvo EC360B trucks

Product Description

The K3V / K5V series are variable displacement axial piston pumps with a swash plate design, suitable for mobile applications such as excavators and cranes.
Various rotary group layouts, series and parallel with PTO, are available to suit the application.
High reliability and over 25 years of experience in mobile applications.

feature

High power density
High suction power
High reliability
Various control options

Specification
control curve
download
Application areas

Specification

Model	K3V 63	K5V 80	K3V 112	K5V 140	K5V 160	K5V 200	K5V 212	K3V 280
Displacement (cm³)		63	80	117	140	160	200	214	280
Pressure (MPa)	Rated	34.3
Pressure (MPa)	peak	39.2
Maximum self-priming speed (minutes^-1)		2,650 people	2,460	2,360 people	2,160	2,000 [2,350]^*1	1,850 [2,200]^*1	2,000^*1	2,000^*1
structure	single	*		*	*	*	*	-	*
	series connection	*	*	*	*	*	*	-	*
	parallel lines	-		*	-	*	*	*	-
